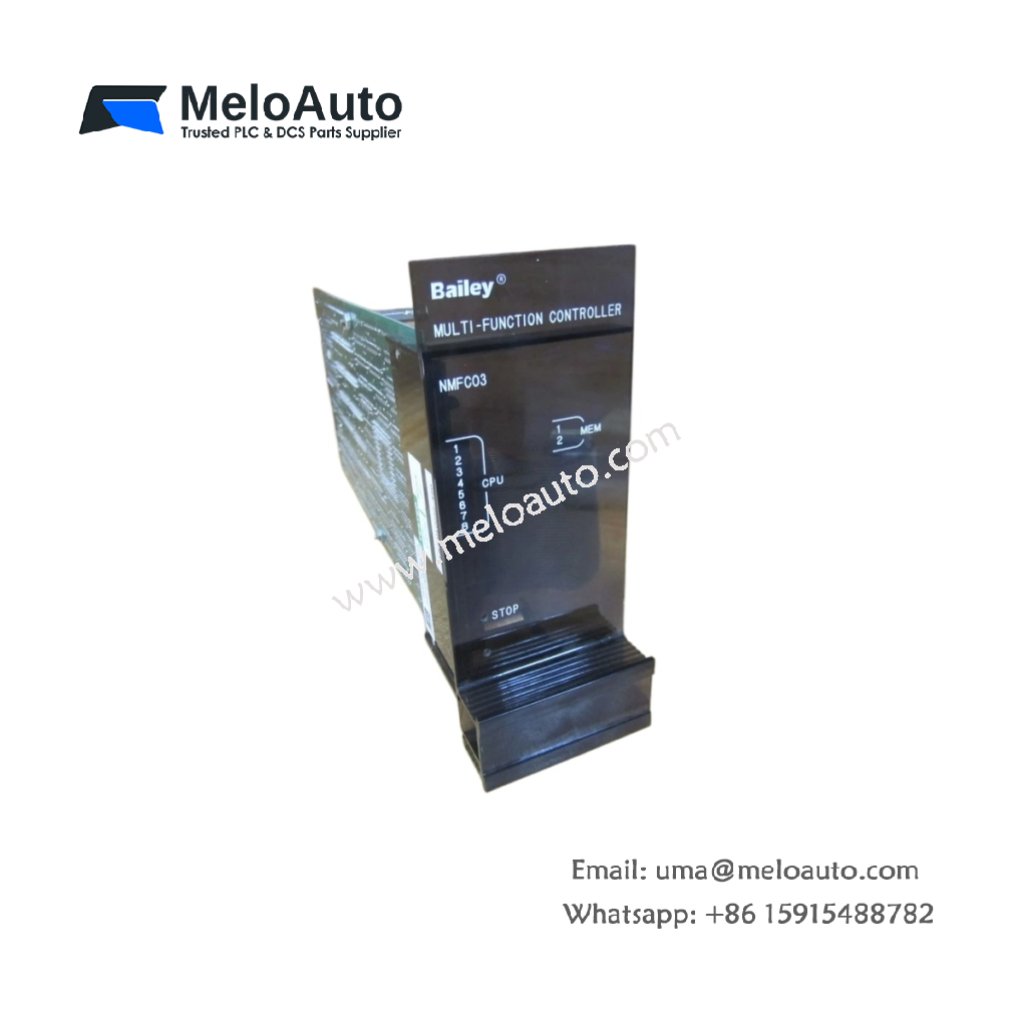

ABB Bailey NMFC03 Multifunction Controller

Processing Capabilities and Control Functions

The ABB Bailey NMFC03 performs multiple control tasks within a single module. This controller handles PID loops, logic sequencing, and math calculations simultaneously. It replaces several single-function modules in traditional control panels.

Technical Specifications

Parameter	Specification
Model	NMFC03
Category	Multifunction Controller
Height	267 mm
Width	45 mm
Depth	185 mm
Weight	0.98 kg
Processor	16-bit at 16 MHz
Program Memory	128 KB flash EPROM
Data Memory	64 KB static RAM
Analog Inputs	4 x differential channels (12-bit)
Analog Outputs	2 x 4-20 mA (12-bit)
Digital Inputs	8 x 24 V DC
Digital Outputs	4 x relay (2 A at 30 V DC)
Communication Port	1 x RS-485
Connector Type	2 x 10-pin screw terminal blocks
Status Indicators	4 x LEDs (PWR, RUN, ERR, COM)
Internal Components	1 CPU board, 1 I/O board, 1 battery
Energy Storage	850 mAh lithium battery

Internal Architecture and I/O Configuration

The NMFC03 contains two separate circuit boards inside its housing. One CPU board carries the 16-bit processor and memory chips. One I/O board provides all analog and digital field connections. An 850 mAh lithium battery preserves data memory during power outages. The ABB Bailey NMFC03 includes four analog inputs for sensor connections. Two analog outputs drive actuators or valve positioners directly. Eight digital inputs accept 24 V DC signals from switches. Four relay outputs control small motors or solenoids safely.

Control Algorithms and Programming

This multifunction controller executes up to 32 PID loops simultaneously. You can program logic sequences using ladder diagrams or function blocks. The NMFC03 performs floating-point math for complex calculations. It stores the user program in 128 KB of flash EPROM memory. The module retains all data in 64 KB of static RAM during operation. An RS-485 port connects to a programming terminal or HMI panel.

Physical Dimensions and Installation Guidelines

The ABB Bailey NMFC03 weighs 0.98 kilograms for secure rack mounting. Its height measures 267mm, width 45mm, and depth 185mm. This controller consumes 5.5 watts of power from the backplane. Install the NMFC03 in any standard Bailey I/O rack slot. The module operates reliably from 0°C to +55°C ambient temperature. The green RUN LED blinks during normal program execution.

Energy Storage and Battery Maintenance

The NMFC03 uses an 850 mAh lithium battery for RAM backup. This battery retains program data and process variables for three years. Replace the battery every two years for preventive maintenance. The red ERR LED flashes when the battery voltage drops too low. Always replace the battery with the module powered on. This practice prevents any loss of stored program data.
