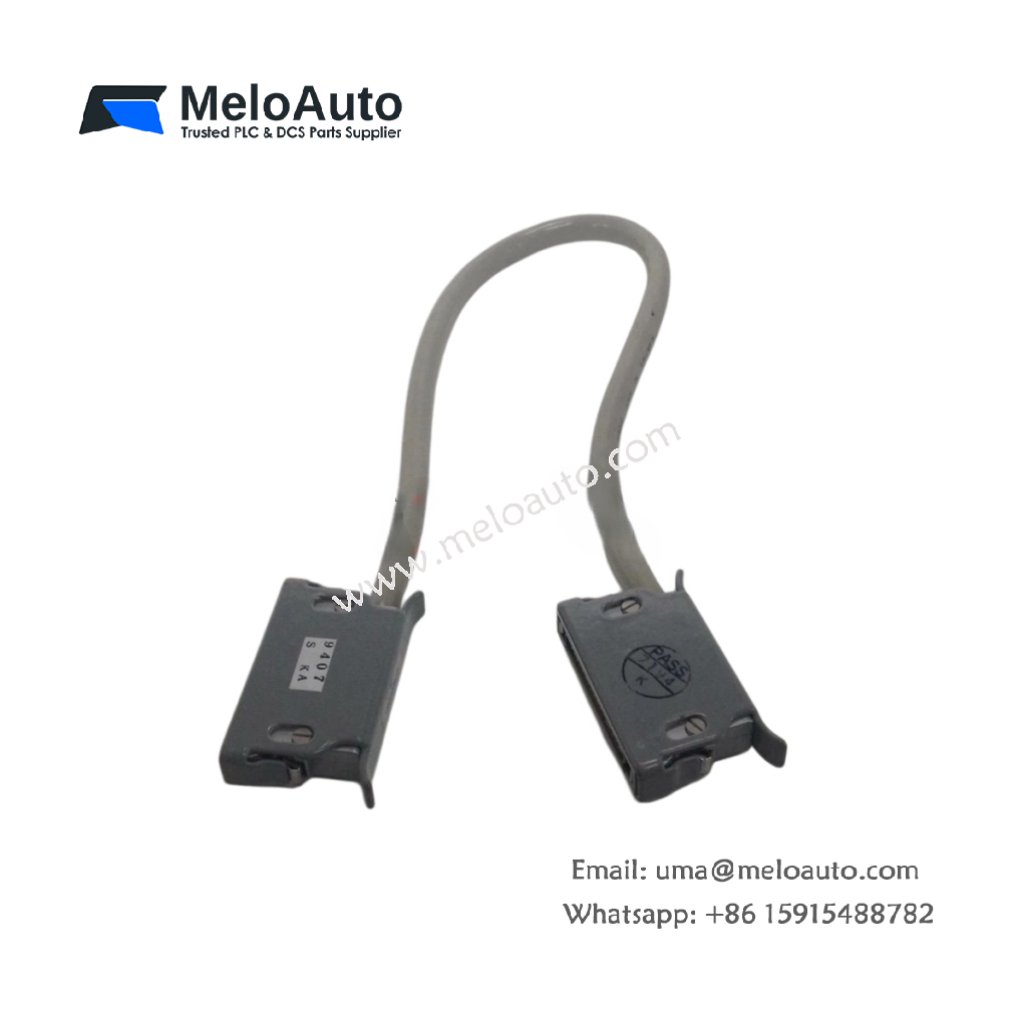

ABB 07 SV 60 R1 Connector Cable

This connector cable links ABB Procontic system components together reliably. It carries power and communication signals between the main rack and expansion units. Therefore, this accessory enables distributed I/O configurations for larger automation systems.

Physical Dimensions and Weight Specifications

The ABB 07 SV 60 R1 features a flexible PVC outer jacket for daily use. Its total length reaches 2 meters for connecting adjacent racks. The cable diameter measures approximately 7.5 mm for easy routing. Consequently, technicians can bend this cable around cabinet corners without damage.

Interface Types and Connector Details

The ABB 07 SV 60 R1 uses a 20-pin connector at both ends. Each connector features a screw-lock mechanism for vibration-proof attachment. A keyed housing prevents reverse insertion into the rack port. Hence, installation requires no special alignment or adapter cables.

Component Count and Wire Configuration

This connector cable contains 20 individually insulated copper conductors. Each conductor uses 24 AWG stranded wire for flexibility. You will find an overall foil shield covering all signal wires. A drain wire connects the shield to ground at both connector housings.

Energy Handling and Signal Integrity

The ABB 07 SV 60 R1 carries both 5V power and communication signals. It transmits up to 2A of current for remote rack electronics. The foil shield rejects electromagnetic interference from nearby motor cables. Therefore, signal integrity remains strong even in noisy industrial environments.

Operating Conditions and Durability

The cable withstands temperatures from -10°C to 60°C. Its PVC jacket resists oil, grease, and common industrial fluids. Users can flex this cable repeatedly without breaking internal conductors. This durability suits factory floors with frequent cabinet access.
