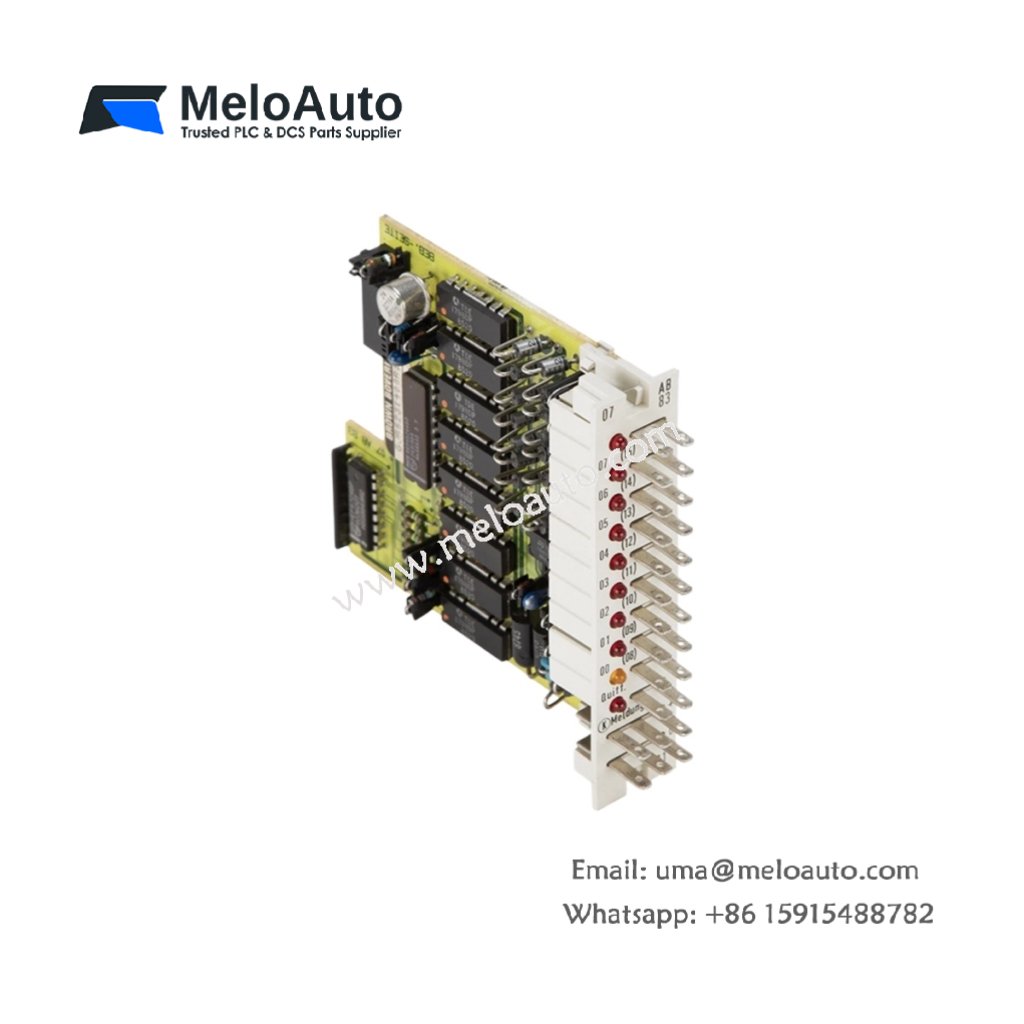

ABB 07 AB 83 High-Performance Automation Module

This high-performance automation module handles complex control tasks for ABB Procontic systems. It combines fast processing with multiple I/O functions in one unit. Therefore, this component suits demanding applications like robotics and high-speed packaging.

Physical Dimensions and Weight Specifications

The ABB 07 AB 83 occupies one standard slot in the Procontic rack. Its housing measures 250 mm in depth for backplane connectivity. The module weighs approximately 0.62 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The ABB 07 AB 83 provides a 48-pin front connector for field I/O wiring. A 20-pin backplane connector supplies power and data from the system bus. The front panel carries LED indicators for module status and communication. Hence, operators can verify operational health at a quick glance.

Component Count and Processing Capability

This automation module contains one main board with a 32-bit DSP processor. The board holds 512 KB of RAM for high-speed program execution. You will also find 1 MB of flash memory for non-volatile storage. An onboard FPGA handles dedicated I/O processing tasks.

Energy Storage and Power Consumption

The ABB 07 AB 83 draws 300 mA from the 5V backplane supply. It also requires 200 mA from an external 24V supply for I/O circuits. A supercapacitor retains configuration data for 96 hours without power. This storage preserves settings during maintenance shutdowns.

Processing Speed and Application Scope

The processor executes 0.05 microseconds per basic logic instruction. It handles closed-loop control updates every 250 microseconds. Users can program this module using standard Procontic tools. This performance suits motion control and high-speed inspection systems.
