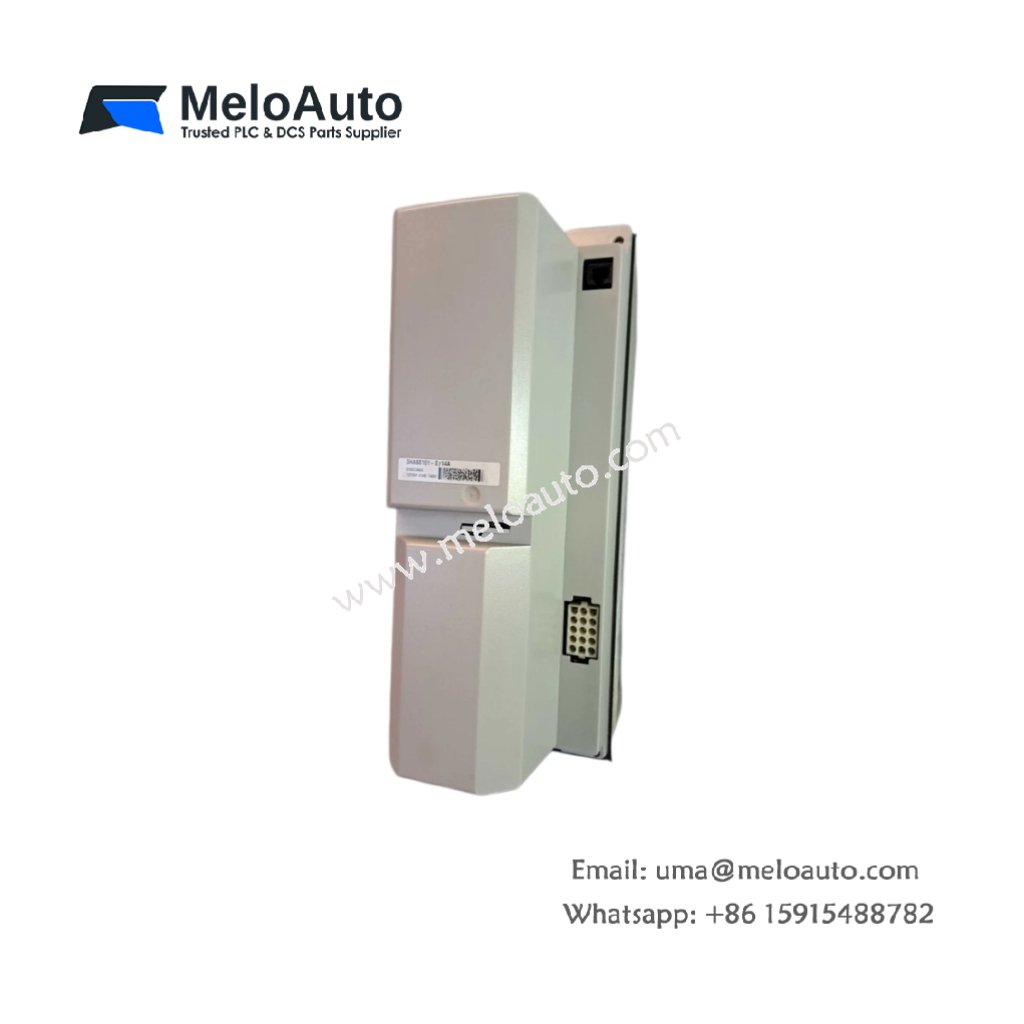

ABB 3HAB8101-5/10A Robot Servo Drive Unit

This robot servo drive unit controls AC motors for ABB industrial robots. It delivers precise current regulation for accurate joint positioning and speed control. Therefore, this component suits robotic applications in welding, painting, and material handling.

Physical Dimensions and Weight Specifications

The ABB 3HAB8101-5/10A features a rugged metal housing for heat dissipation. Its width measures 75 mm for standard panel mounting. The total depth reaches 230 mm including the heat sink. Consequently, technicians can install this unit in medium-sized control cabinets.

Interface Types and Connection Layout

The ABB 3HAB8101-5/10A provides a 15-pin D-sub connector for encoder feedback. A separate 4-pin terminal block supplies three-phase motor power. The front panel carries a 9-pin RS-232 port for configuration software. Hence, users can tune servo parameters without opening the cabinet.

Component Count and Internal Architecture

This servo drive contains one main power board with IGBT modules. The board holds two large electrolytic capacitors for DC bus filtering. You will also find a control board with a 32-bit DSP processor. An onboard braking resistor absorbs regenerative energy during deceleration.

Energy Storage and Power Handling

The ABB 3HAB8101-5/10A stores energy in two 1500µF DC bus capacitors. This storage provides 25 ms of ride-through during brief power sags. The unit also features an internal shunt regulator for excess energy. Therefore, the drive handles regenerative loads without external resistors.

Protection Features and Operating Range

The drive includes short-circuit and overcurrent protection on all outputs. It also features overtemperature shutdown with automatic retry. Users can operate this unit in temperatures from 0°C to 50°C. A built-in fan cools the power components under continuous load.
