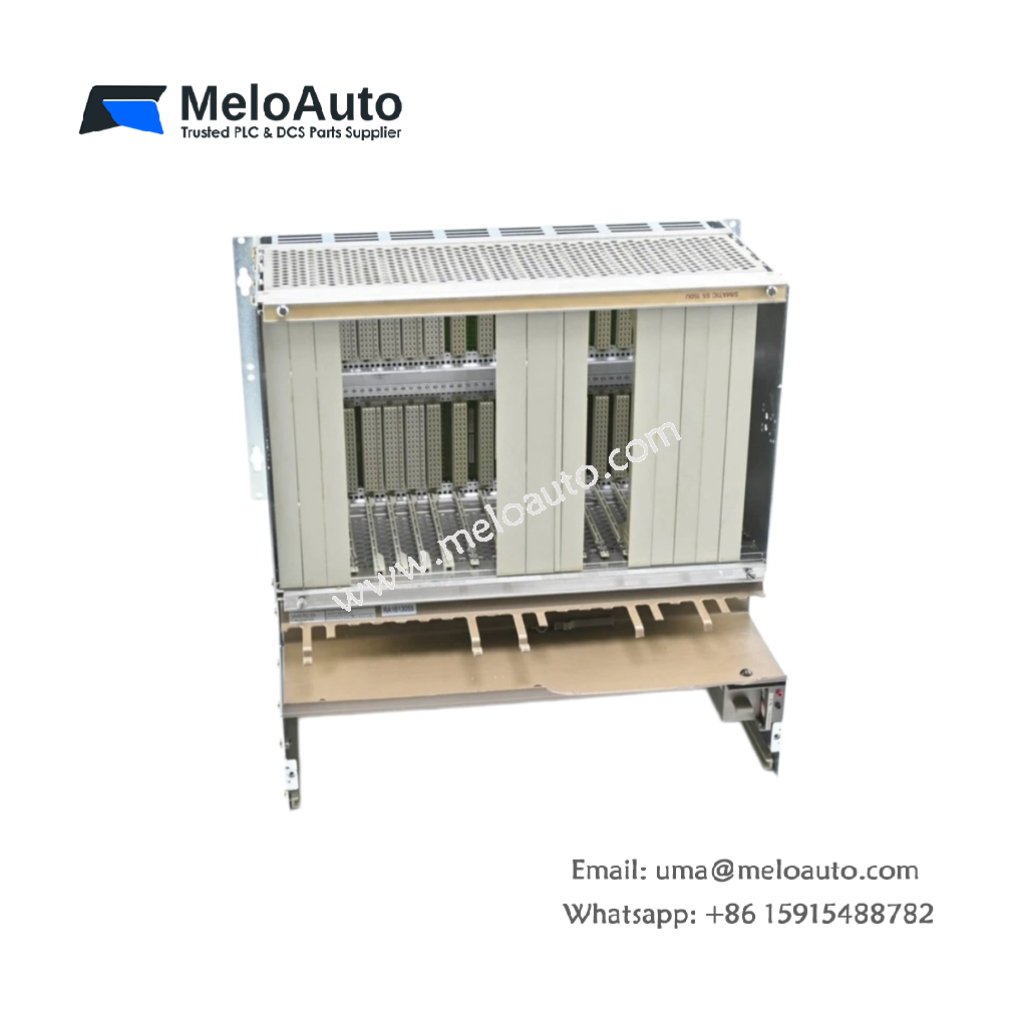

Siemens 6ES5150-3SB61 – Central Controller for SIMATIC S5 Systems

The Siemens 6ES5150-3SB61 serves as the main processor unit for small to medium automation tasks. This central controller measures 250 mm in depth and 25 mm in width. It fits standard SIMATIC S5 rack slots without any modifications. The unit weighs 0.52 kg, making installation straightforward.

Processor Architecture and Processing Speed

This central controller contains a 16-bit microprocessor running at 10 MHz. The Siemens 6ES5150-3SB61 executes 0.3 milliseconds per 1,000 bit operations. It processes 0.8 milliseconds per 1,000 word operations efficiently. The controller handles up to 512 digital I/O points in a single configuration. It also manages up to 64 analog I/O channels without external expansion.

Memory Configuration and Storage Capacity

The controller includes 2 kB of user program memory for application code. The Siemens 6ES5150-3SB61 also provides 1 kB of data memory for process values. A built-in EPROM stores the operating system and fixed parameters. The module uses battery-backed RAM to retain critical data during power loss. A replaceable lithium battery maintains data for up to one year.

Internal Architecture and Component Layout

The controller contains three separate circuit boards inside its metal housing. One board holds the CPU and memory, while another manages I/O scanning. The third board handles power regulation and backplane communication. The Siemens 6ES5150-3SB61 includes a 48-pin edge connector for rack interfacing. The module stores 220 µF of capacitance for power supply filtering.

Communication Ports and Status Indicators

You will find one programming port on the front panel of this controller. This port uses an RS-232 interface for connection to programming devices. The Siemens 6ES5150-3SB61 includes LED indicators for power, run, and fault status. Six diagnostic LEDs show internal CPU and memory health conditions. The controller generates a watchdog alarm when program execution exceeds scan time limits.

Below is a complete summary of its technical specifications.

The Siemens 6ES5150-3SB61 replaces older central controllers in S5-115U systems. You do not need any special adapters or additional configuration tools. This controller also supports step-by-step debugging for easier program testing. Consequently, it suits small packaging machines and simple conveyor control applications.
