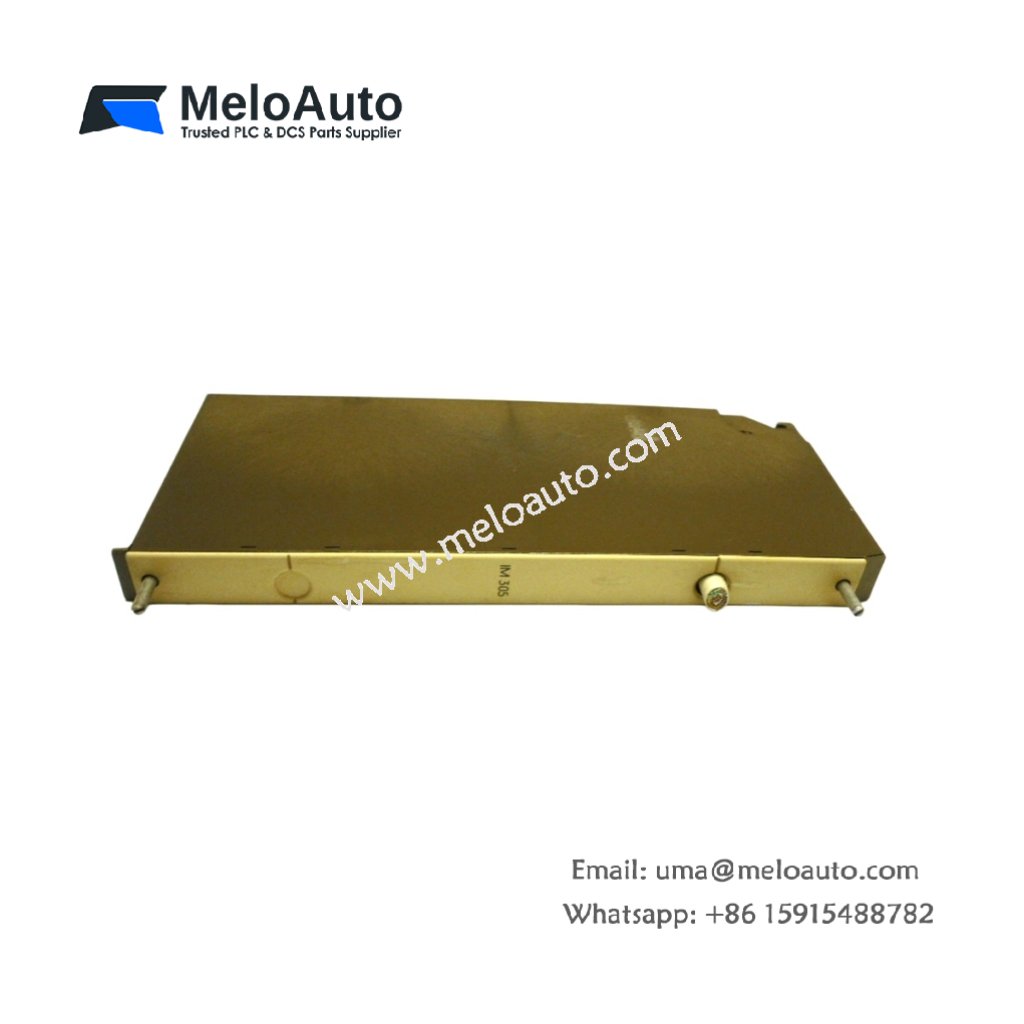

Siemens 6ES5305-7LA11 – Interface Module for SINEC L2 Fieldbus Networks

The Siemens 6ES5305-7LA11 connects SIMATIC S5 controllers to SINEC L2 industrial networks. This interface module measures 250 mm in depth and 25 mm in width. It fits standard SIMATIC S5 rack slots without any modifications. The unit weighs 0.41 kg, making installation quick and straightforward.

Communication Protocol and Data Handling

This interface module uses the SINEC L2 protocol for high-speed fieldbus communication. The Siemens 6ES5305-7LA11 supports token passing and master-slave data exchange modes. It handles up to 128 bytes of process data per message frame. The module achieves a maximum baud rate of 1.5 Mbit/s on twisted pair cables. It automatically retransmits corrupted messages up to three times for reliability.

Internal Architecture and Component Layout

The module contains two separate circuit boards inside its plastic housing. One board handles protocol processing, while the other manages backplane communication. The Siemens 6ES5305-7LA11 includes a dedicated 16-bit microcontroller for message handling. A 48-pin edge connector interfaces with the S5 backplane for power and data. The module stores 82 µF of capacitance for power supply filtering only.

Interface Connections and Diagnostic Features

You will find one 9-pin D-sub connector on the front panel for network connection. The Siemens 6ES5305-7LA11 provides LED indicators for power, communication, and fault status. Six diagnostic LEDs help troubleshoot network and bus issues quickly. The module includes configurable node addresses from 1 to 126. It also supports both cyclic and acyclic data exchange services.

Power Requirements and Environmental Tolerance

The Siemens 6ES5305-7LA11 draws 140 mA at 5V DC from the backplane supply. It requires no external 24V DC power for its internal circuits. The module operates reliably from 0°C to 60°C ambient temperature. It tolerates humidity levels up to 95 percent without any condensation issues. The unit withstands vibration up to 2g from 10 to 500 Hz.

Below is a complete summary of its technical specifications.

The Siemens 6ES5305-7LA11 replaces older interface modules in SINEC L2 networks. You do not need any rewiring or configuration changes during replacement. This module also supports mixed S5 and S7 controllers on the same network. Consequently, it bridges legacy S5 systems to modern automation infrastructures.
