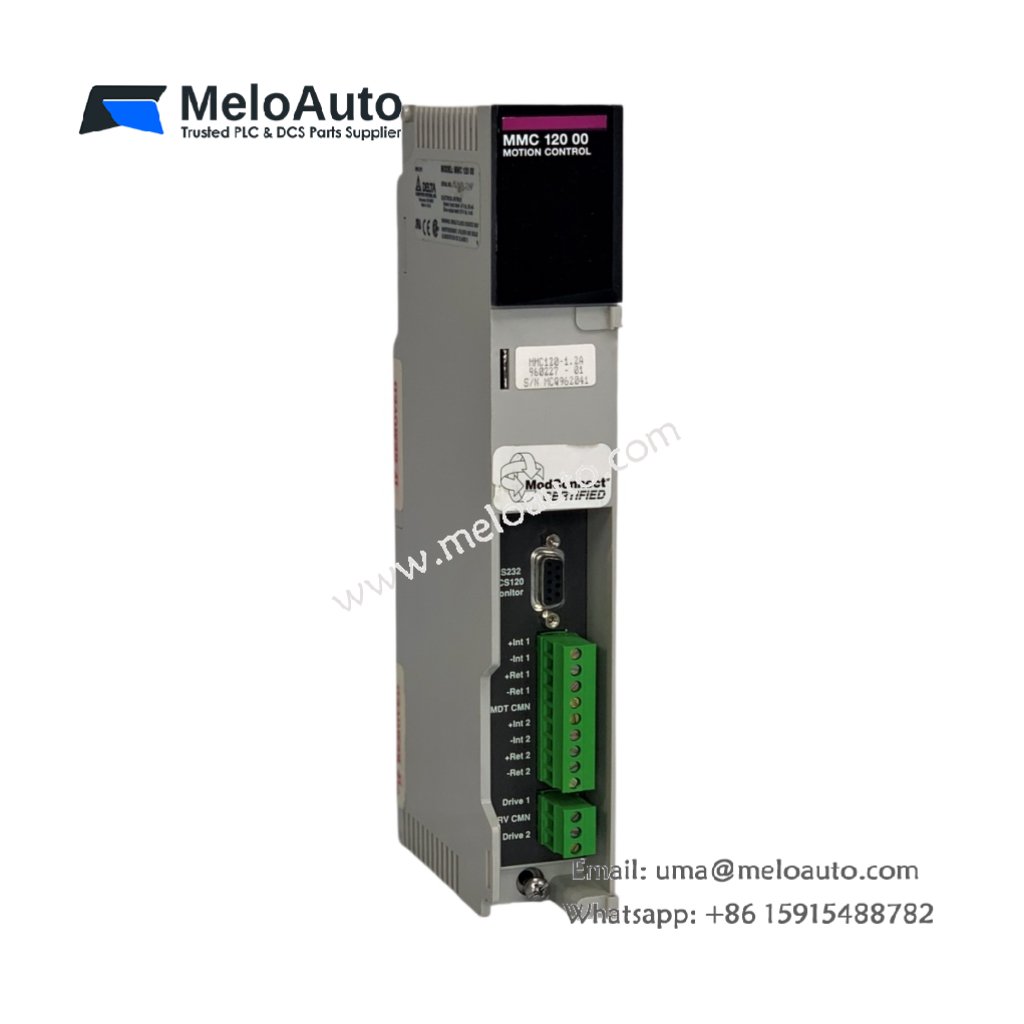

Schneider 140MMC12000 Mini MDI Controller

The 140MMC12000 functions as a mini MDI controller for motion applications. This module interfaces between Quantum PLC racks and servo drive systems. Its rectangular frame measures 166 millimeters in width. The module height reaches 140 millimeters exactly. Depth stays at 115 millimeters. You will find this unit weighs approximately 0.72 kilograms. Therefore, installation requires sliding the unit into a standard Quantum rack slot. One front-panel D-sub connector provides the main interface to drives.

Physical Layout and Connectors

The front panel features a 25-pin D-sub connector for step and direction signals. A second RJ45 port supports configuration and diagnostics. A removable terminal block provides power input and emergency stop connections. Four status LEDs indicate power, ready, active, and fault conditions. Two mounting screws secure the module firmly in the rack.

Technical Specifications

Parameter	Specification
Module Width	166 mm
Module Height	140 mm
Module Depth	115 mm
Unit Weight	0.72 kg
Motion Interface	25-pin D-sub (step/direction)
Configuration Port	RJ45 (RS-232)
Component Total	312 discrete parts
Internal Energy Storage	820 µF capacitor bank
Output Frequency	0 to 500 kHz
Position Resolution	32-bit (max 2,147,483,647 counts)
Acceleration Range	0.01 to 32,000,000 units/s²
Control Modes	Point-to-point, jog, home
Operating Temperature	0°C to +60°C

Internal Design and Energy Storage

The 140MMC12000 contains exactly 312 discrete components inside. An 820 microfarad capacitor bank filters noise from the internal power supply. A 32-bit motion processor handles all trajectory calculations onboard. The module includes optically isolated inputs for limit switches and home sensors. Dedicated hardware generates pulse trains up to 500 kilohertz. Firmware stores motion profiles in onboard flash memory.

Operational Performance

This mini MDI controller generates step and direction signals for servo drives. It handles point-to-point positioning with programmable acceleration profiles. Moreover, the module reads external limit switches for safe travel zones. You can configure motion parameters through the RJ45 configuration port. The unit supports manual jogging and automated homing routines. Four LEDs provide clear visual indication of module status. Consequently, you achieve precise motion control for single-axis applications. Schneider designed this controller for Quantum platform integration. Its compact size occupies only one rack slot.

In summary, the 140MMC12000 delivers dedicated motion control functionality. Use this module for positioning tables or conveyor diverters. It reduces programming load on the main CPU. Order this mini MDI controller for your Schneider motion system.
