Product Title for SEO:FUJI NP1Y08R-00 Digital Output Module

Module Overview

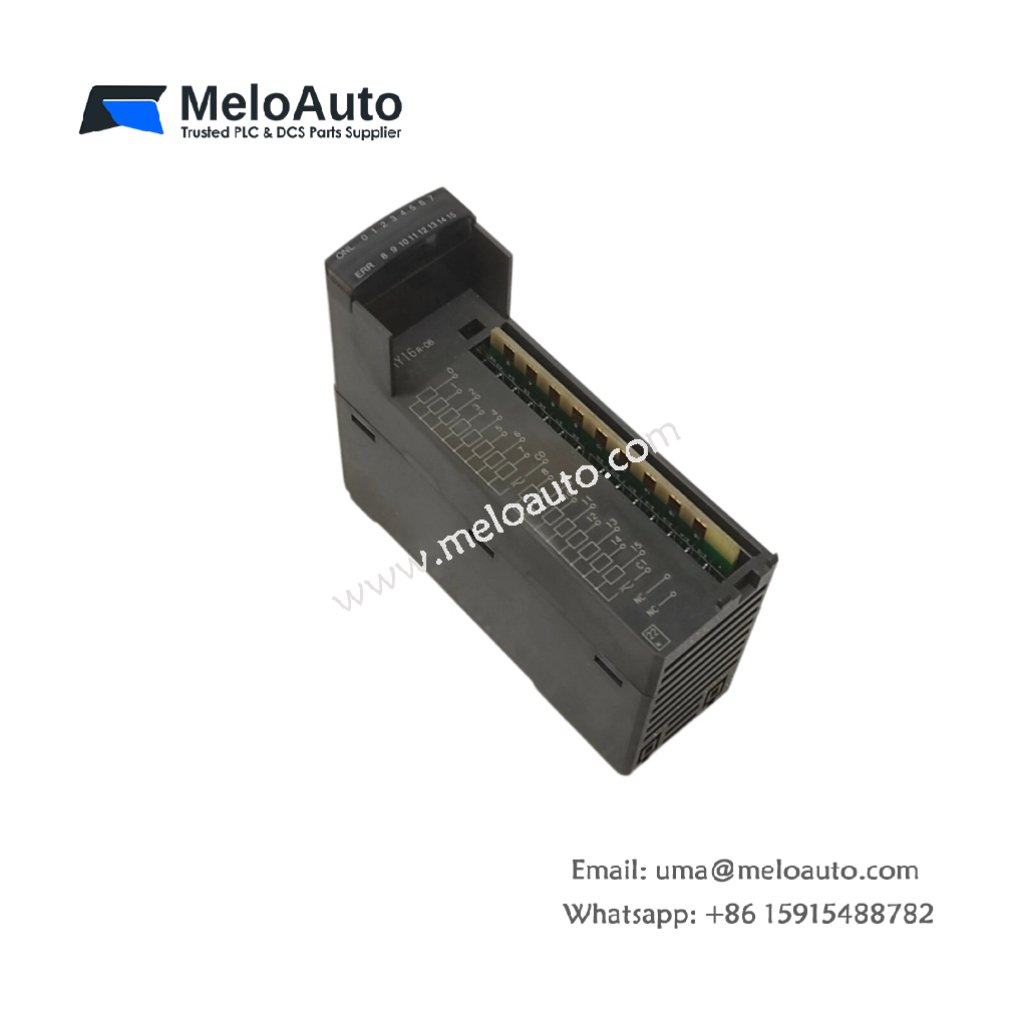

This digital output module provides eight relay channels for high-power loads. You can install FUJI NP1Y08R-00 directly into any FUJI SPH series PLC rack. The unit switches AC or DC circuits up to 2A per channel. It suits motor starters, heaters, and large solenoids.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	70 mm x 100 mm x 75 mm
Weight	0.34 kg
Number of outputs	8 points
Output type	Relay (Form A, SPST-NO)
Contact rating	2A at 250V AC or 30V DC
Maximum inrush current	5A for 10 milliseconds
Output response time	10 ms typical (operate)
Mechanical life	20 million operations
Electrical life	100,000 operations at rated load
Replaceable relays	No (soldered to PCB)
Interface to controller	SPH backplane connector
Field wiring interface	Removable screw terminal block
Total onboard components	142 discrete parts
Energy storage type	Ceramic and film capacitors
Energy storage rating	100 µF at 25V DC
Operating temperature	0°C to +55°C

Board Layout and Components

The PCB places eight relay devices in two rows of four. Each relay includes a suppression diode for DC load protection. Moreover, 142 discrete components include driver transistors and isolation circuits. The design uses film capacitors for noise filtering on coil drives. Consequently, relay contacts switch cleanly without electrical chatter.

Installation Process

You can mount FUJI NP1Y08R-00 into any standard SPH series rack slot. The backplane connector supplies power and receives output data from the CPU. Furthermore, a removable terminal block accepts field wiring for all eight output contacts. LED indicators on the front panel show each relay’s energized status clearly.

Performance Advantages

This module switches loads up to 2A at 250V AC or 30V DC per channel. The relays provide complete isolation between PLC logic and field circuits. Therefore, you can mix AC and DC loads on the same module without issues. The 5A inrush rating also handles motor starting currents reliably.

Safety and Compliance

FUJI NP1Y08R-00 meets CE and RoHS industrial standards. The board discharges stored energy below 3V within four seconds. Hence, technicians face minimal electrical risk during installation or replacement.
