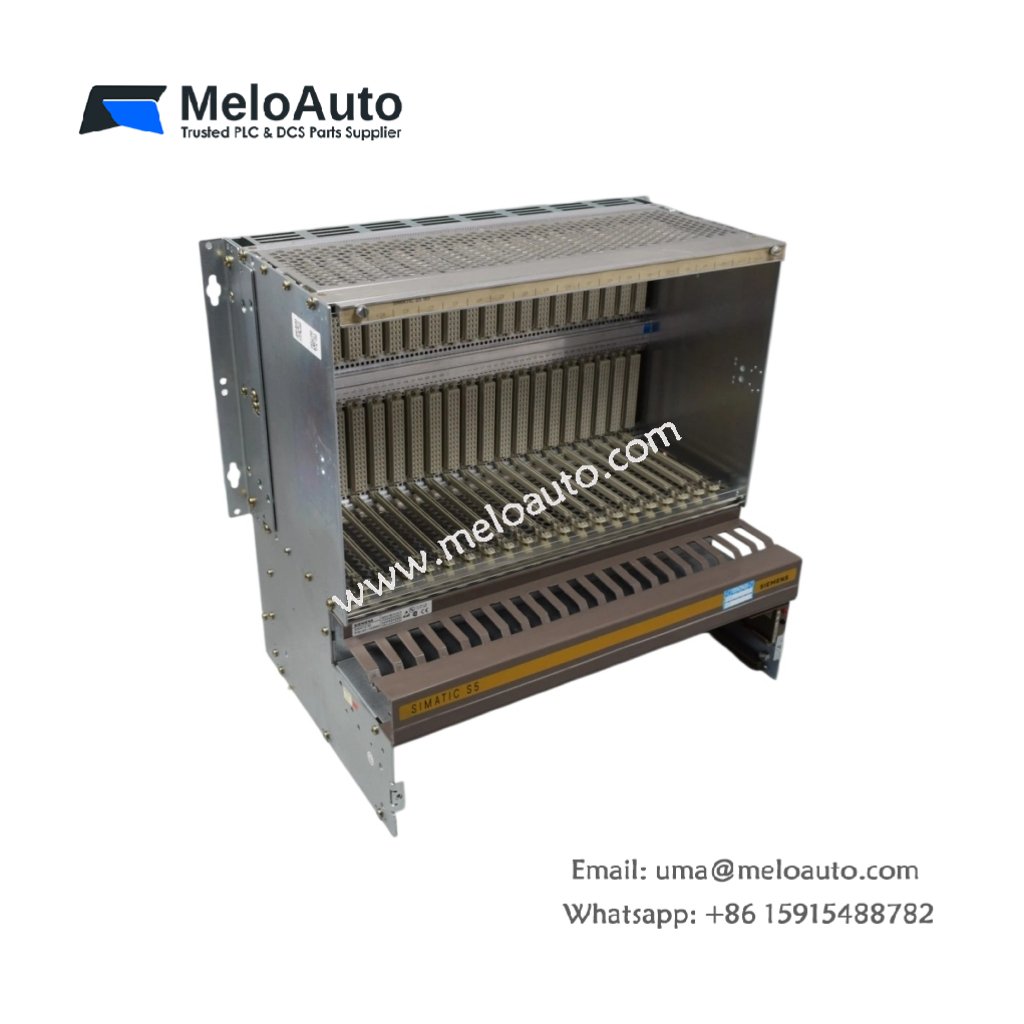

Siemens 6ES5185-3UA41 – Expansion Unit for SIMATIC S5 I/O Capacity

The Siemens 6ES5185-3UA41 adds additional I/O slots to SIMATIC S5 control systems. This expansion unit measures 480 mm in width and 290 mm in height. It has a depth of 200 mm, so it fits standard 19-inch cabinets easily. The unit weighs 5.2 kg, making floor or rack mounting secure.

Slot Configuration and Backplane Architecture

This expansion unit provides eight I/O slots for S5-compatible modules. The Siemens 6ES5185-3UA41 includes a passive backplane with no active components. Each slot accepts any standard S5 module up to double width size. The backplane distributes power and data signals to all inserted modules. An integrated fan cools the modules during continuous operation.

Connection to Central Controller and Power Supply

You must connect this expansion unit to a central controller via an interface cable. The Siemens 6ES5185-3UA41 uses a 50-pin ribbon cable for remote I/O connection. This cable supports distances up to 100 meters between units. The expansion unit requires an external 24V DC power supply for operation. A terminal block on the side accepts field power wiring easily.

Internal Components and Energy Storage

The expansion unit contains two separate circuit boards inside its metal housing. One board holds the backplane traces, while the other manages power distribution. The Siemens 6ES5185-3UA41 includes a fan control board for temperature management. The unit stores 470 µF of capacitance across its voltage regulation circuits. This storage filters noise from the incoming 24V DC supply effectively.

Environmental Specifications and Mounting Options

You can mount this expansion unit on a floor stand or in a 19-inch rack. The device operates reliably from 0°C to 50°C ambient temperature. It tolerates humidity levels up to 90 percent without any condensation issues. The Siemens 6ES5185-3UA41 includes an IP20 rating for indoor panel installation. The fan requires periodic filter cleaning for optimal cooling performance.

Below is a complete summary of its technical specifications.

The Siemens 6ES5185-3UA41 expands I/O capacity without replacing the central controller. You do not need any special configuration software for this expansion unit. This unit also supports hot-swapping of most I/O modules during operation. Consequently, it provides flexible I/O expansion for large S5 automation systems.
