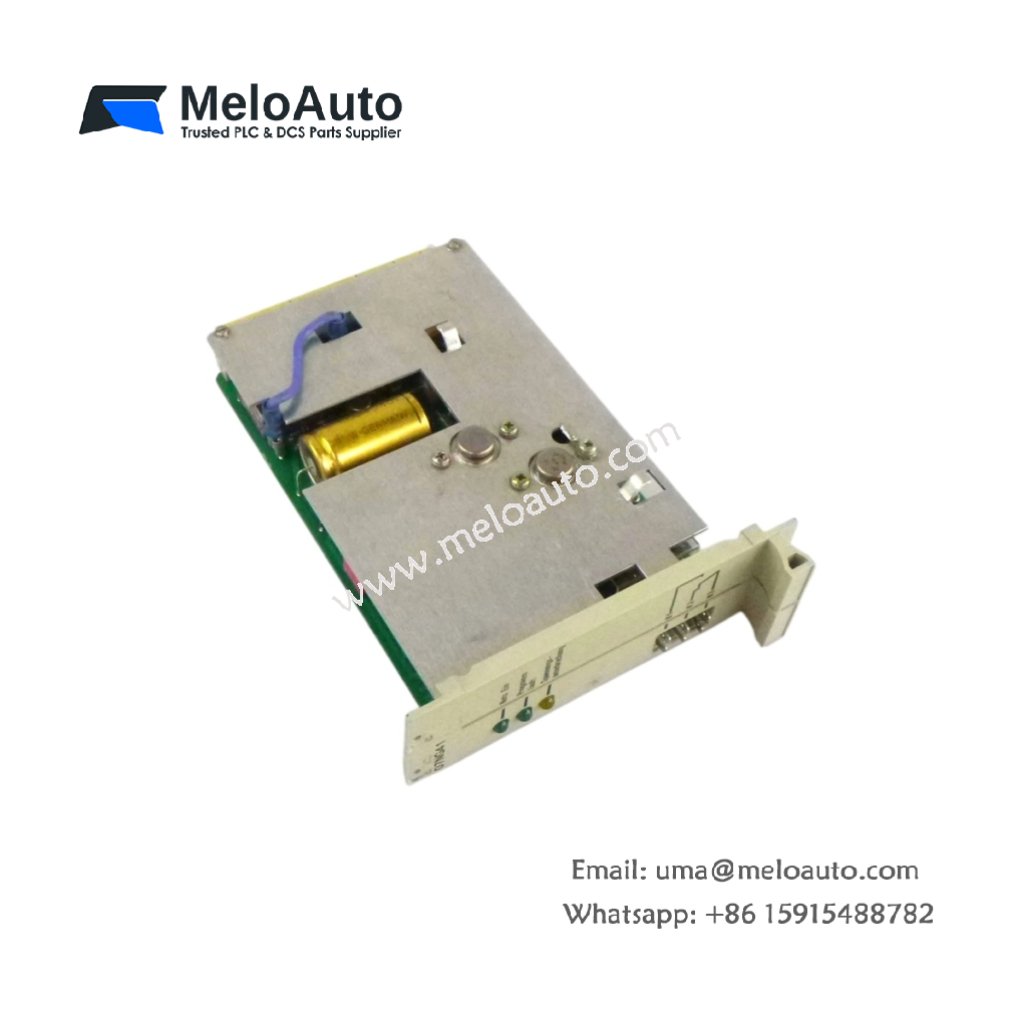

ABB 07NG41 PCB Circuit Board

This PCB circuit board provides signal conditioning for ABB Procontic control systems. It processes analog inputs and generates outputs for field devices. Therefore, this component suits custom automation solutions requiring flexible hardware configurations.

Physical Dimensions and Weight Specifications

The ABB 07NG41 features a standard Eurocard form factor for rack mounting. Its board dimensions measure 100 mm in height for vertical insertion. The total depth reaches 160 mm for backplane connectivity. Consequently, technicians can install this board in standard Procontic enclosures.

Interface Types and Connection Layout

The ABB 07NG41 provides a 48-pin DIN connector for backplane interfacing. A separate 20-pin front connector carries field I/O signals. The board includes multiple test points for diagnostic measurements. Hence, technicians can verify signal integrity using standard oscilloscope probes.

Component Count and Circuit Functions

This PCB circuit contains one board with analog and digital sections. The board holds 4 operational amplifiers for signal conditioning. You will also find 8 comparator circuits for threshold detection. An onboard voltage regulator provides stable power for local components.

Energy Storage and Power Consumption

The ABB 07NG41 draws 60 mA from the 5V backplane supply. It also requires 40 mA from an external 24V supply for analog circuits. A small capacitor bank filters noise on the analog power rails. This storage ensures clean signal processing in industrial environments.

Signal Processing and Application Flexibility

Users can configure gain settings via onboard jumper selections. The circuit provides buffered outputs for driving backplane logic. This board serves as a base for custom I/O functions. Therefore, engineers can adapt it for specialized measurement tasks.
