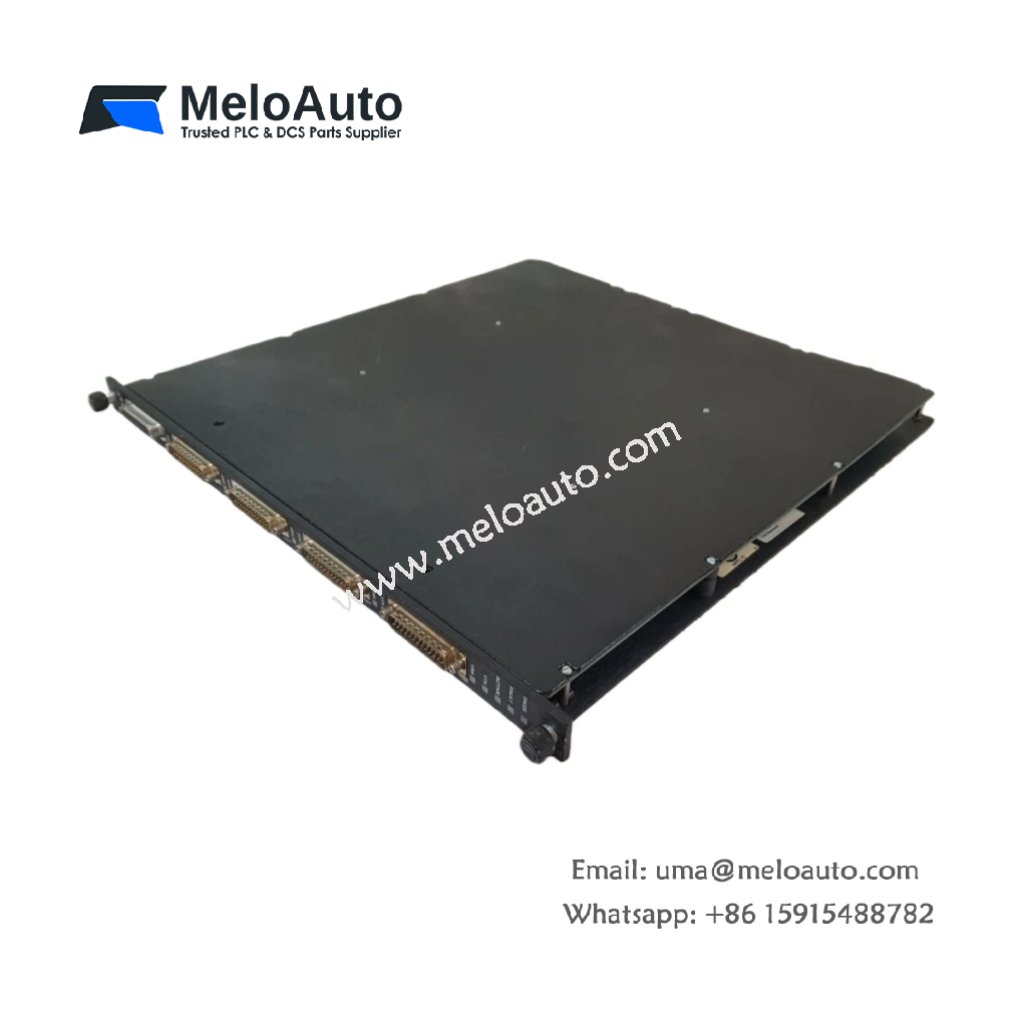

Triconex 3101 Safety Logic Solver

Overview

The Triconex 3101 is a high-performance safety logic solver designed to provide reliable protection in safety-critical industrial applications. Featuring Triple Modular Redundancy (TMR) architecture, this device maintains system integrity even under demanding conditions. The 3101 also offers scalability, robust diagnostics, and a powerful processor, enabling complex control and safety applications. It is ideal for process control, machine safety, and emergency shutdown systems.

Key Features

• Triple Modular Redundancy (TMR) Architecture: The Triconex 3101 runs on three independent processing channels. Each channel executes the same program, ensuring fault tolerance. If one or two channels fail, the system continues operating without interruption, isolating any faulty channels automatically.
• High Performance: Equipped with a high-speed 32-bit RISC processor, the 3101 handles complex control algorithms and extensive data storage. This high performance ensures the system meets the demands of critical processes.
• Modular Design: The 3101 offers exceptional scalability, accommodating various applications. Users can add processing modules and I/O modules to extend system capacity and improve connectivity with field devices.
• Comprehensive Diagnostics and Maintenance: The 3101 includes self-testing, fault detection, and isolation. These diagnostic features make online maintenance easy, ensuring continuous system reliability.

Technical Specifications

Applications

The Triconex 3101 is suitable for a variety of industrial applications, including:

• Process Control: The device monitors and controls essential variables like temperature, pressure, and flow in critical industries such as chemicals, oil, and gas.
• Machine Safety: It ensures safety by monitoring and controlling machine interlocks and safety devices.
• Emergency Shutdown Systems: In hazardous conditions, the 3101 triggers emergency shutdowns to protect the system and personnel.
