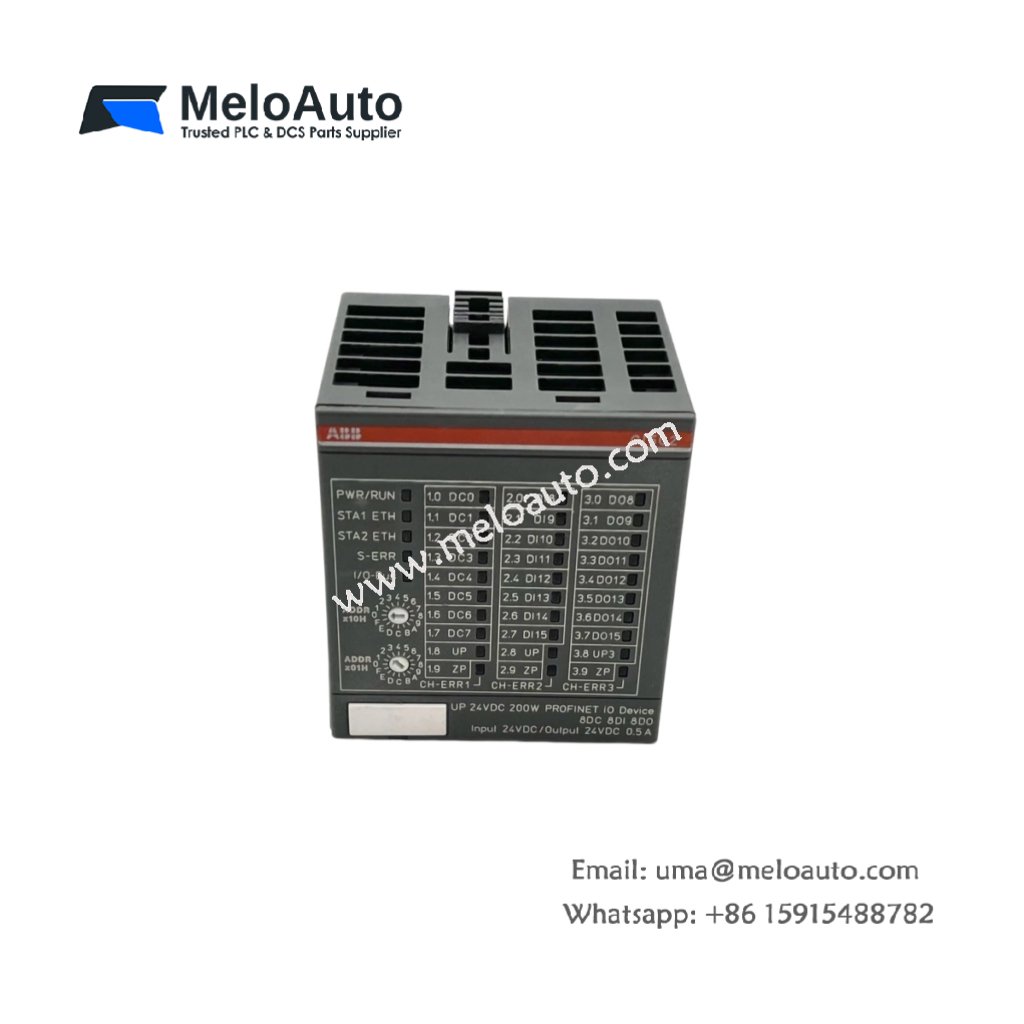

ABB 1SAP220700R0001 PROFINET Bus Module

Technical Specifications and Connectivity

The ABB 1SAP220700R0001 PROFINET bus module, also known as CI502-PNIO, belongs to the AC500 S500 I/O family and serves as a high-performance communication interface . This module integrates seamlessly into PROFINET IO RT networks, enabling reliable data exchange between the PLC and up to ten additional I/O modules .

The module provides an impressive combination of on-board I/O, featuring 8 digital inputs, 8 digital outputs, and 8 configurable digital I/O channels . It operates on a 24V DC power supply with a range of 20.4 to 28.8V DC, and each digital output delivers 0.5A . With a net weight of just 0.133 kg and compact dimensions of 67.5 mm x 76 mm x 62 mm, this module suits even the most space-constrained control cabinets .

Functional Capabilities and Network Integration

The 1SAP220700R0001 module actively establishes and manages PROFINET communication with the automation network. It features two Industrial Ethernet ports with an integrated switch, supporting line and star topologies for flexible network design . This built-in functionality eliminates the need for external network components. The module provides PROFIsafe support for implementing safety-related communication, enhancing worker and equipment protection . Additionally, potential separation ensures robust signal integrity and protects the system from electrical interference.

Application Scenarios and System Expansion

This PROFINET bus module suits a wide range of industrial automation applications requiring seamless network connectivity. It integrates into AC500 PLC systems for machine control, process automation, and factory-wide communication. The ABB CI502-PNIO supports expansion with up to 10 I/O modules, enabling scalable system designs that adapt to evolving requirements . Many facilities rely on this module to build new automation networks or upgrade legacy systems with modern PROFINET communication.
