Core Functionality and Application

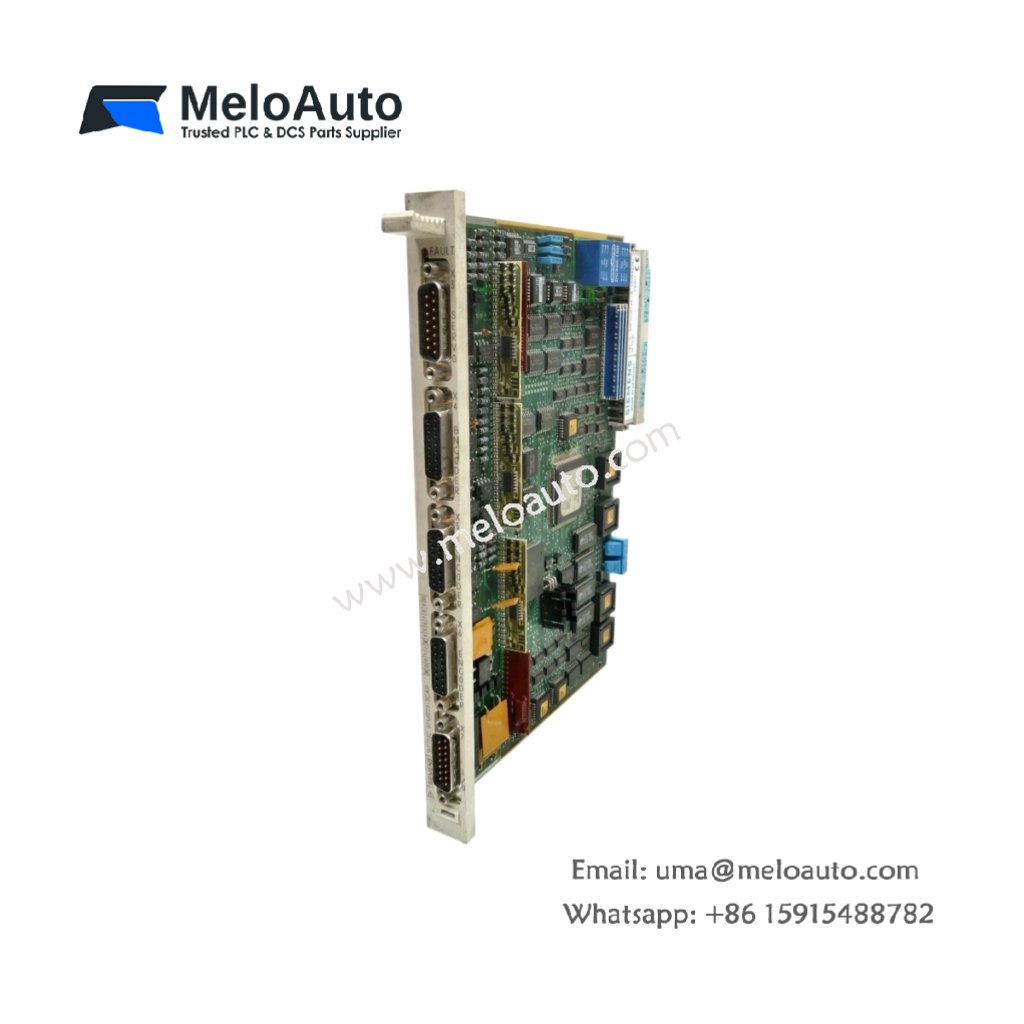

The Siemens 6FM1723-3CA11 positioning assembly serves as a precision motion control module for complex automation systems. This module controls up to three independent axes simultaneously, making it ideal for multi-axis positioning tasks. It supports permanent and selectable synchronization modes for coupled axes. Additionally, the module offers a range of advanced interpolation and collision detection features.
Technical Specifications
The following table details the core technical parameters for the Siemens 6FM1723-3CA11:
| Parameter | Specification |
|---|---|
| Model Number | 6FM1723-3CA11 |
| Product Type | Positioning Module / WF723C |
| Axis Control | Up to 3 axes (selectable) |
| Channels | 3 independent channels for multi-axis traversing |
| Axis Synchronization | Permanent and selectable synchronism modes |
| Interpolation Modes | Linear (G01) and rapid traverse (G00) |
| Block Transition Modes | Exact stop (G60), path-dependent chaining (G63), rapid traverse transitions |
| Loop-Over Control | Configurable loop-over windows (G66/G67) |
| Collision Monitoring | Integrated collision detection (G96/G97) |
| Synchronism Tolerance | Adjustable tolerance thresholds |
| Dimensions | Standard Siemens modular form factor |
| Weight | 0.27 kg to 0.592 kg (variant dependent) |
| Compatibility | SIMATIC system (specific PLC family pending verification) |
Motion Control Capabilities
The Siemens 6FM1723-3CA11 offers three independent channels, which allows simultaneous traversing programs across multiple axes. It supports linear interpolation (G01) for precise path control and rapid traverse interpolation (G00) for quick positioning movements. The module’s configurable loop-over windows (G66/G67) enhance control flexibility. Its collision detection features (G96/G97) also help prevent operational mishaps . Furthermore, adjustable synchronization tolerance settings accommodate specific application requirements.
Design and Integration Features
The Siemens 6FM1723-3CA11 features a compact design that simplifies integration into control cabinets. Its lightweight construction, weighing approximately 0.27 kg to 0.592 kg, reduces physical strain on the system . The module serves as the successor to the 6FM1723-3CA10, offering updated features and improved performance . However, users should verify compatibility with their specific SIMATIC system, as this module has been noted as a discontinued positioning module .
