Core Functionality and Application

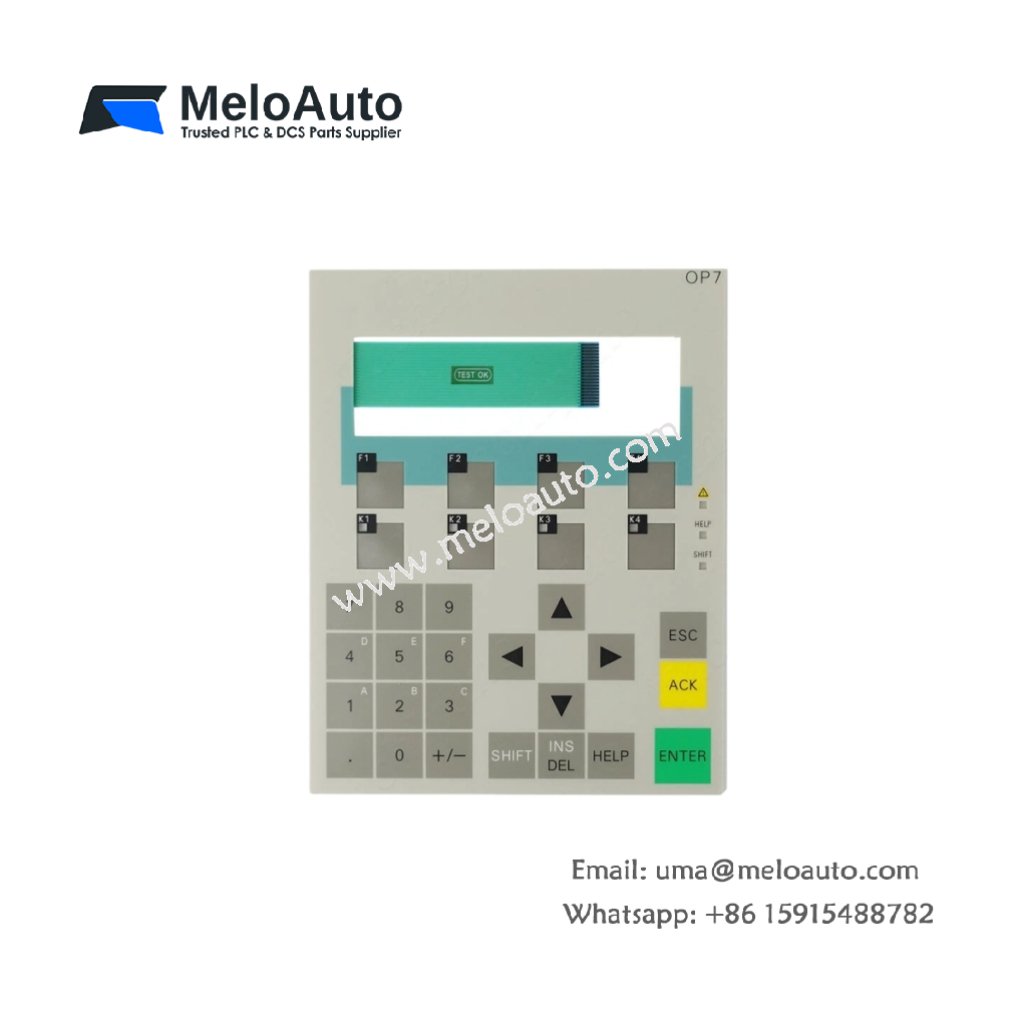

The Siemens 6AV3607-1JC00-0AX2 operator panel serves as a user interface for SIMATIC S5 and S7 PLC systems. This device enables operators to monitor machine status and input control commands efficiently. It displays process variables, alarms, and system messages in a clear format. Moreover, the panel supports text-based visualization with user-configurable function keys.
Technical Specifications
The following table details the core technical parameters for the Siemens 6AV3607-1JC00-0AX2:
| Parameter | Specification |
|---|---|
| Model Number | 6AV3607-1JC00-0AX2 |
| Product Type | Operator Panel (Text Display) |
| Display Type | LCD (backlit) |
| Display Lines | 4 lines × 20 characters |
| Keypad Type | Membrane keypad with function keys |
| Communication Interfaces | MPI, PROFIBUS DP, RS-232/RS-485 |
| Compatible Systems | SIMATIC S5, S7-300, S7-400 |
| Protection Rating | IP65 (front panel) |
| Dimensions (W × H × D) | 24.0 × 12.0 × 5.5 cm (approx.) |
| Weight | Approx. 0.6 kg |
| Input Power | 24 VDC |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Mounting | Flush panel mount |
Design and Operation Features
The Siemens 6AV3607-1JC00-0AX2 features a user-friendly membrane keypad with clearly labeled function keys. The backlit LCD display ensures good readability even in low-light conditions. Its IP65-rated front panel resists dust and water spray effectively. The panel’s compact design fits into standard cutouts for simple installation. Users can configure the device with Siemens ProTool or similar configuration software.
System Integration
The Siemens integrates with both SIMATIC S5 and S7 PLC families. It communicates via MPI, PROFIBUS DP, or serial connections for maximum compatibility. System integrators use this panel for machine control, process monitoring, and alarm management. The panel supports the connection of multiple PLCs through network interfaces.
