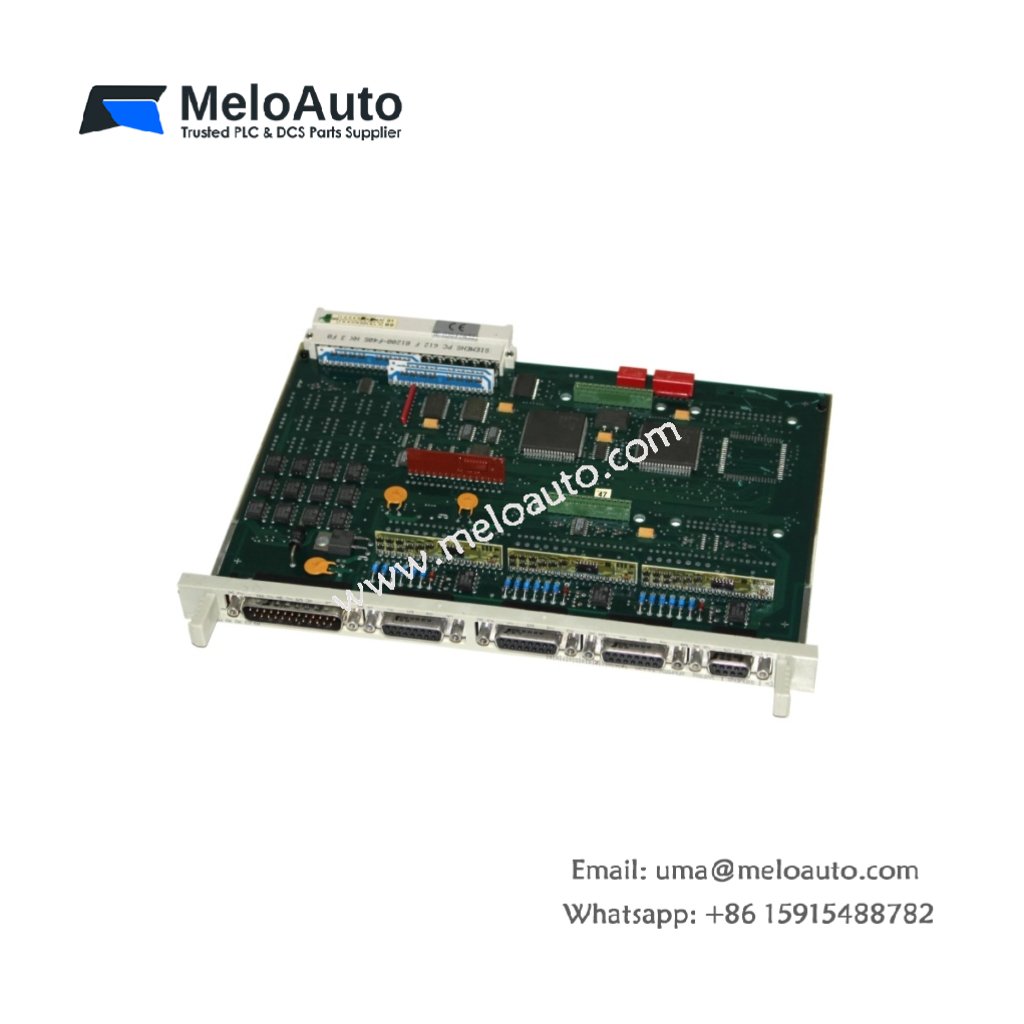

The 6FM1706-3AA20 functions as a high-performance positioning module for the Siemens SIMATIC S5 programmable controller series. This module provides precise position control for complex multi-axis motion applications. It generates high-speed pulse outputs for driving stepper and servo motor systems. The unit accepts incremental encoder and absolute encoder feedback for closed-loop control. Consequently, it delivers exceptional accuracy and repeatability for demanding positioning tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Positioning Module |
| Part Number | 6FM1706-3AA20 |
| Controlled Axes | 3 (independent) |
| Output Type | Step/Direction or CW/CCW (5 VDC differential) |
| Pulse Frequency | Up to 500 kHz per axis |
| Encoder Inputs | 3 channels (A, B, Z, differential) |
| Max Encoder Frequency | 1 MHz |
| Position Range | 32-bit (software configurable) |
| Motion Profiles | Trapezoidal, S-curve, and user-defined |
| Communication | S5 backplane bus |
| Power Supply | 5 VDC (backplane) + 24 VDC (external) |
| Current Consumption | 900 mA (5 VDC), 150 mA (24 VDC) |
| Memory | 16 KB RAM (battery-backed) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Standard S5 single-width |
| Weight | 0.6 kg |
| Status Indicators | LEDs (power, axis ready, fault) |
Motion Control and Profiling
The 6FM1706-3AA20 supports flexible motion profiles with programmable acceleration and deceleration. Users can configure software limits to prevent over-travel on each axis. The module provides homing routines with multiple reference point options. It also includes registration input for high-speed position capture. Additionally, the module supports electronic gearing for synchronized multi-axis operations.
Application and Integration
This positioning module suits CNC machine tools, robotics, and automated assembly systems. The 6FM1706-3AA20 also applies to packaging machinery and web handling equipment. It integrates with standard servo drives and stepper motor amplifiers.
