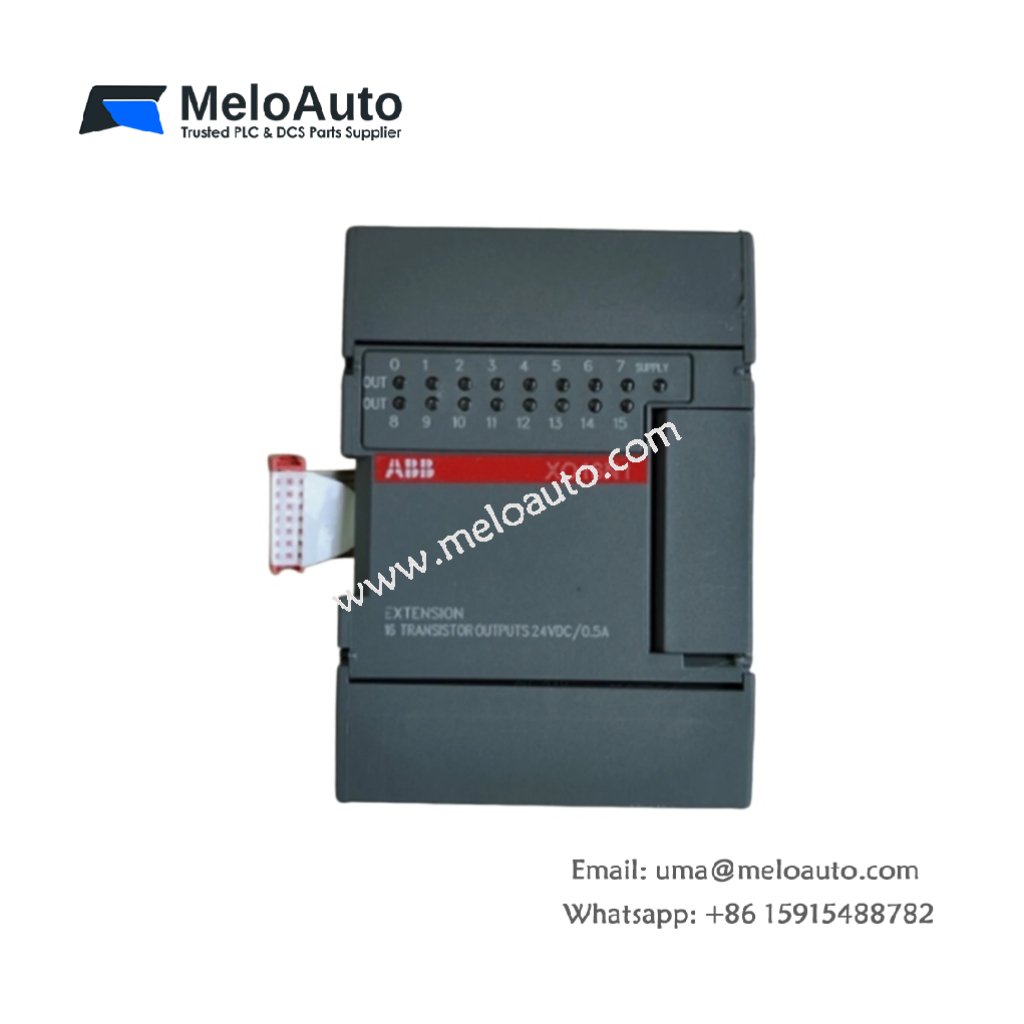

ABB 1SBP260105R1001 Extension Module

This binary extension module adds sixteen DC output channels to Advant systems. The ABB 1SBP260105R1001 connects directly to the Advant backplane. You can control solenoids, relays, and indicator lights with this module. Its high density saves valuable space inside control cabinets.

Physical Dimensions and Hardware Layout

The ABB 1SBP260105R1001 measures 12.0 cm in overall width. Its total height reaches 18.5 cm including mounting flanges. This extension module weighs approximately 0.65 kg. A sturdy metal enclosure protects internal electronics from vibration. One green LED indicates backplane power status. Additionally, sixteen yellow LEDs show each channel’s active switching state.

Output Specifications and Load Handling

Each output channel switches 24V DC loads up to 0.5A continuously. The ABB 1SBP260105R1001 provides a total module current of 4A maximum. Built‑in short circuit protection activates at 0.7A per channel. The module also features thermal shutdown for overload conditions. Outputs resume normal operation after fault removal automatically.

Parameter	Specification
Number of Channels	16
Product Type	Binary output extension module
Output Type	Transistor (sinking, NPN)
Load Voltage Range	18 to 30V DC
Output Current per Channel	0.5A continuous
Total Module Current	4A max
Short Circuit Trip Point	0.7A ±10%
On‑State Voltage Drop	< 0.5V at 0.5A
Off‑State Leakage	< 0.1 mA
Switching Speed (On)	0.2 ms typical
Switching Speed (Off)	0.3 ms typical
Dimensions (W x H x D)	120 mm x 185 mm x 110 mm
Weight	0.65 kg (1.43 lbs)
Terminal Type	Removable 20‑pin screw block
Wire Size	0.2 to 2.5 mm²
Number of Terminal Screws	20
Backplane Current Draw	180 mA @ 5V DC
Power Dissipation	3.8 W max at full load
Internal Energy Storage	100 µF capacitor bank
Protection Features	Short circuit, thermal, overvoltage
LED Indicators	1 green (power), 16 yellow (channels)
Operating Temperature	0°C to +55°C

Energy Storage and Output Behavior

Internal capacitors maintain output states during brief power dips. The ABB 1SBP260105R1001 stores enough energy for 10 ms of hold‑up time. This storage prevents false output resets during short interruptions. All outputs revert to a safe state after a power failure longer than 10 ms.

Protection Circuits and Diagnostic Features

Short circuit protection limits current to 0.7A per channel automatically. Thermal shutdown activates when internal temperature exceeds 85°C. The ABB 1SBP260105R1001 reports overload events through a group error flag. The host controller can read this flag via the backplane interface. Therefore, system diagnostics remain comprehensive and effective.

Wiring and Installation Guidelines

Connect field devices to the removable 20‑pin screw terminal block. The ABB 1SBP260105R1001 accepts solid or stranded wires from 0.2 to 2.5 mm². Use a common 24V DC supply for all output loads. Proper grounding reduces electrical noise significantly. Consequently, system reliability improves in industrial environments.
