Precision Positioning Control

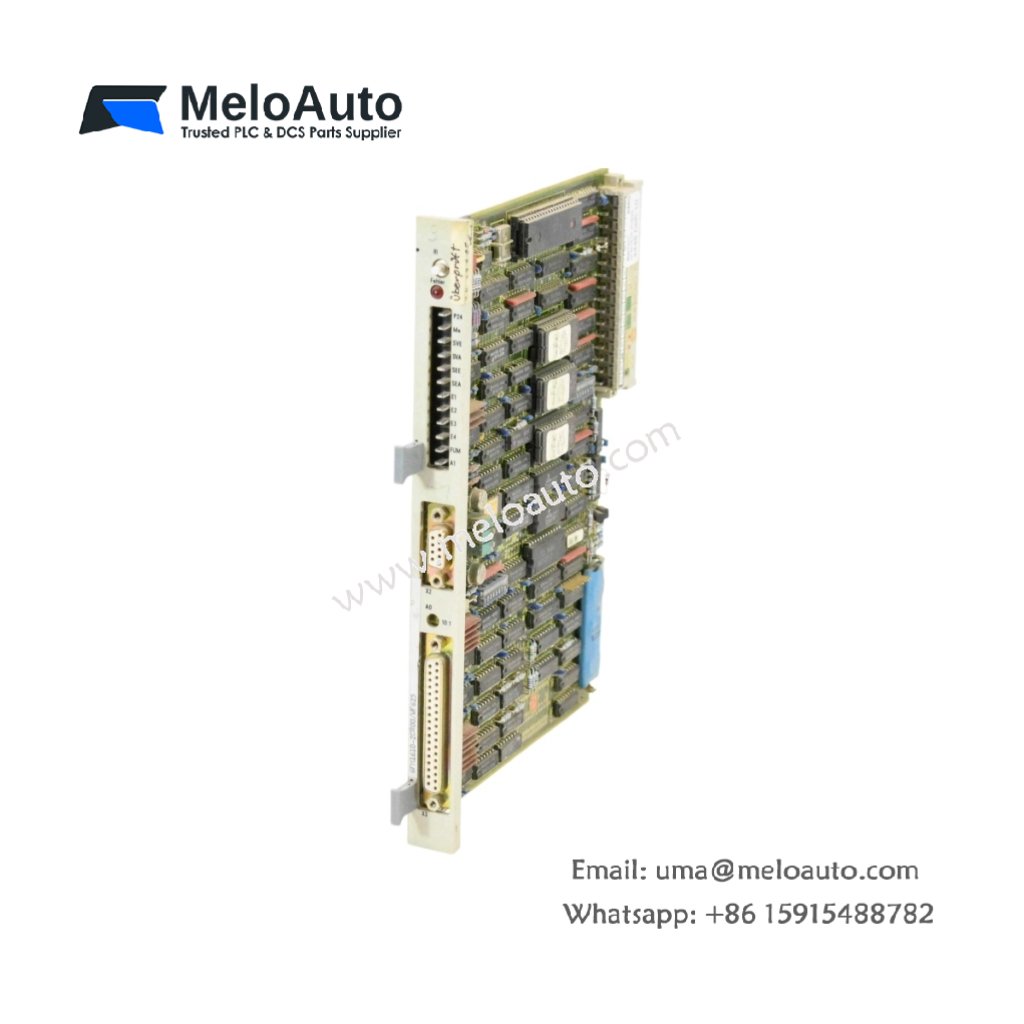

The 6FM1610-2CB00 functions as a dedicated position module for the Siemens SIMATIC S5 programmable controller series. This module provides precise position control for servo and stepper motor applications. It generates pulse train outputs for driving motor amplifiers and actuators. The unit accepts incremental encoder feedback for closed-loop positioning. Consequently, it delivers accurate and repeatable motion control for demanding automation tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Position Module |
| Part Number | 6FM1610-2CB00 |
| Controlled Axes | 2 (independent) |
| Output Type | Step/Direction or CW/CCW (5 VDC) |
| Pulse Frequency | Up to 200 kHz per axis |
| Encoder Inputs | 2 channels (A, B) differential |
| Max Encoder Frequency | 500 kHz |
| Position Range | 32-bit (software configurable) |
| Communication | S5 backplane bus |
| Power Supply | 5 VDC (backplane) |
| Current Consumption | 850 mA (typical) |
| Memory | 8 KB RAM (battery-backed) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Standard S5 single-width |
| Weight | 0.5 kg |
| Status Indicators | LEDs (power, fault, axis status) |
Motion Control Capabilities
The 6FM1610-2CB00 supports multiple motion profiles including trapezoidal and S-curve acceleration. Users can configure software limits to protect machinery from over-travel. The module includes programmable homing routines for axis referencing. It also provides registration input for accurate position capture. Furthermore, the module stores motion parameters in non-volatile memory for automatic startup.
Application Integration
Common applications include CNC positioning systems and packaging equipment. The 6FM1610-2CB00 also suits robotics and material handling systems. It interfaces with standard servo drives and stepper motor amplifiers.
