Integrated Control Solution

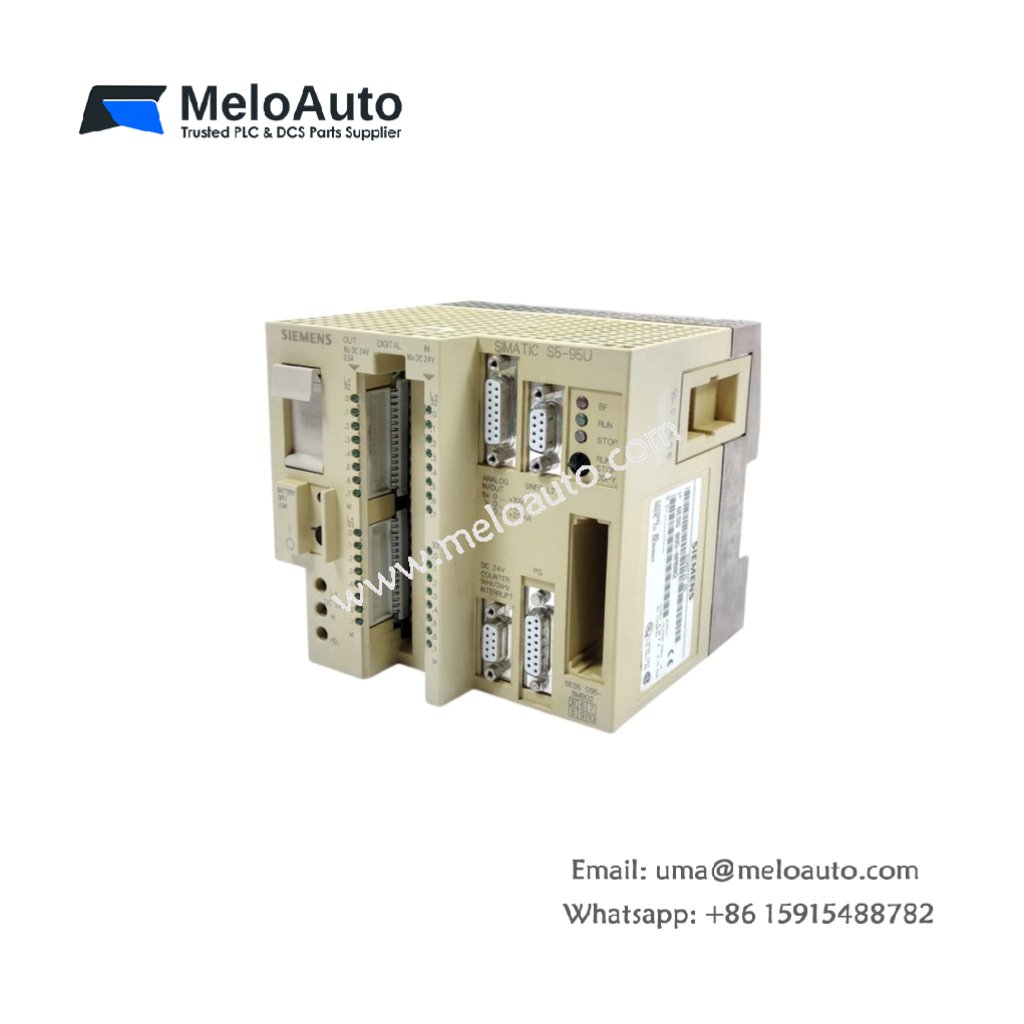

The 6ES5095-8MB02 operates as a compact unit within the Siemens SIMATIC S5 programmable controller series. This module integrates CPU, power supply, and I/O capabilities in a single housing. It serves as a standalone controller for smaller automation applications. The unit provides digital and analog signal processing for diverse control tasks. Consequently, it delivers a cost-effective solution for machine and process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Compact Unit |
| Part Number | 6ES5095-8MB02 |
| Integrated CPU | Yes (dedicated processor) |
| Program Memory | 8 KB RAM (battery-backed) |
| Digital Inputs | 16 (24 VDC) |
| Digital Outputs | 16 (24 VDC, 0.5 A) |
| Analog Inputs | 4 (0-10 VDC or 4-20 mA) |
| Analog Outputs | 2 (0-10 VDC or 4-20 mA) |
| Communication | RS-232 (programming port) |
| Power Supply | 115/230 VAC (selectable) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 20.0 cm x 12.0 cm x 10.0 cm |
| Weight | 1.5 kg |
| Status Indicators | LEDs (power, CPU run, fault) |
| Mounting | DIN rail or panel |
Integrated Functionality
The 6ES5095-8MB02 combines essential control components into a single package. It reduces cabinet space requirements significantly compared to modular systems. The unit includes a built-in programming interface for easy configuration. Users can expand the I/O capacity via the integrated bus interface. Additionally, the compact unit features diagnostic LEDs for monitoring system health.
Application Suitability
This compact unit suits small to medium-sized automation tasks. Typical uses include packaging machinery, conveyor control, and simple process monitoring. The integrated design simplifies installation and reduces overall system costs.
