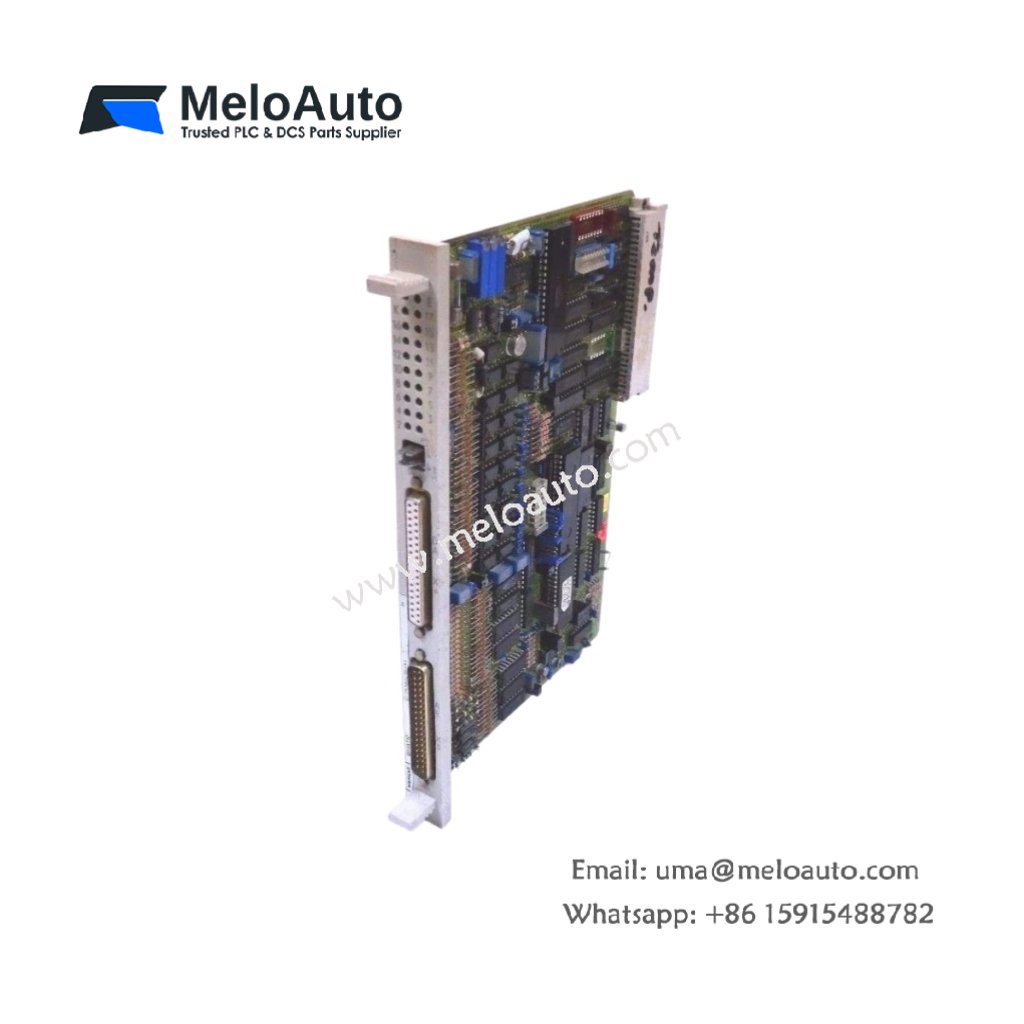

The 6ES5244-3AA11 functions as a dedicated temperature control module for the Siemens SIMATIC S5 programmable controller series. This module manages multiple temperature loops with independent PID algorithms. It accepts thermocouple and RTD inputs directly without external signal conditioning. The unit generates pulse or analog outputs for driving heating and cooling devices. Consequently, it ensures precise temperature regulation across diverse industrial processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Temperature Control Module |
| Part Number | 6ES5244-3AA11 |
| Control Loops | 4 (independent) |
| Input Types | Thermocouple (J,K,T), RTD (Pt100), 0-10 VDC, 4-20 mA |
| Output Types | Relay, 0-10 VDC, 4-20 mA (configurable) |
| Temperature Resolution | 0.1°C |
| Accuracy | ±0.2% of full scale |
| PID Parameters | Self-tuning or manual configuration |
| Communication | S5 backplane bus |
| Power Supply | 5 VDC (backplane) |
| Power Consumption | 800 mA (typical) |
| Memory | 4 KB RAM (battery-backed) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Standard S5 single-width |
| Weight | 0.5 kg |
| Status Indicators | LEDs (power, loop status, alarm) |
Temperature Control Features
The 6ES5244-3AA11 incorporates advanced PID algorithms with auto-tuning capabilities. Users can configure setpoint profiles with ramp and soak functions. Each loop includes dedicated alarm outputs for over-temperature and under-temperature conditions. Additionally, the module supports cascade control for complex thermal systems. The module stores parameter sets in non-volatile memory for automatic recovery.
Application Integration
This temperature module suits ovens and furnaces, as well as chemical reactors. It also applies to plastic extrusion machinery and packaging heat-sealing equipment. The 6ES5244-3AA11 interfaces with solid-state relays and thyristor controllers.
