Product Overview

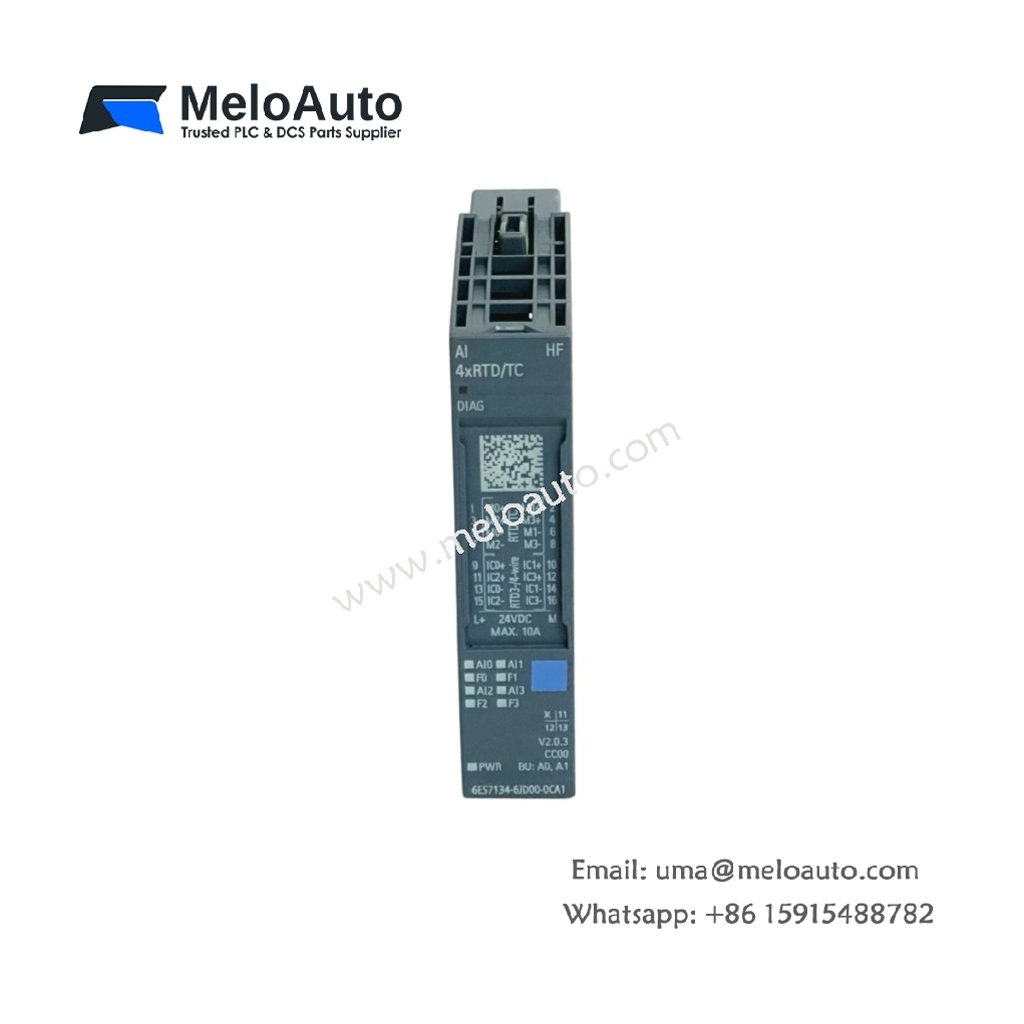

The 6ES7134-6JD00-0CA1 SIMATIC ET 200SP analog input module provides accurate signal acquisition for modern industrial automation systems. It converts analog field signals into digital values for efficient processing within Siemens control architectures.
Moreover, the compact module design supports flexible installation inside ET 200SP stations and reduces overall cabinet space requirements. The advanced electronic structure ensures stable measurement performance across various industrial applications.
Additionally, the module delivers reliable signal processing through precise conversion technology and integrated diagnostic functions. The optimized design helps engineers improve system accuracy while maintaining efficient automation operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES7134-6JD00-0CA1 |
| Product Category | SIMATIC ET 200SP Analog Input Module |
| Module Type | Analog Input Electronic Module |
| Input Channels | 4 Analog Inputs |
| Signal Type | Voltage and Current Analog Signals |
| Resolution | 16-bit Analog Conversion |
| Supply Voltage | 24 V DC System Supply |
| Communication Interface | ET 200SP Backplane Bus |
| Installation Method | ET 200SP BaseUnit Mounting |
| Diagnostic Functions | Wire Break Detection, Short Circuit Monitoring, Module Diagnostics |
| Circuit Structure | Industrial Multi-layer PCB |
| Component Configuration | ADC circuits, signal conditioning circuits, communication interface, protection components, capacitors, diagnostic indicators |
| Energy Storage | Integrated capacitors for voltage stabilization |
| Housing Material | Industrial-grade Plastic Components |
| Cooling Method | Natural Air Convection |
| Dimensions | Approx. 73 × 15 × 58 mm |
| Weight | Approx. 0.05 kg |
| Operating Environment | Industrial Automation and Process Control Systems |
Key Features
The 6ES7134-6JD00-0CA1 provides precise analog signal measurement for distributed automation applications. Furthermore, the module supports reliable data transmission between field devices and higher-level Siemens controllers.
In addition, integrated diagnostics help technicians identify signal issues quickly during commissioning and maintenance activities. The compact structure allows efficient installation while supporting flexible system expansion.
The high-resolution conversion technology improves measurement accuracy for industrial processes. Moreover, internal capacitors maintain electrical stability, helping the module deliver consistent performance under continuous operating conditions.
Industrial Applications
Engineers commonly use the 6ES7134-6JD00-0CA1 in process monitoring, machine automation, temperature control, and production systems. Additionally, the module connects transmitters, sensors, and measurement devices within Siemens ET 200SP control networks.
Advantages for Industrial Automation
The module improves automation precision through accurate analog signal processing and reliable diagnostics. Furthermore, Siemens compatibility, compact dimensions, and efficient integration make it suitable for advanced industrial control projects.
