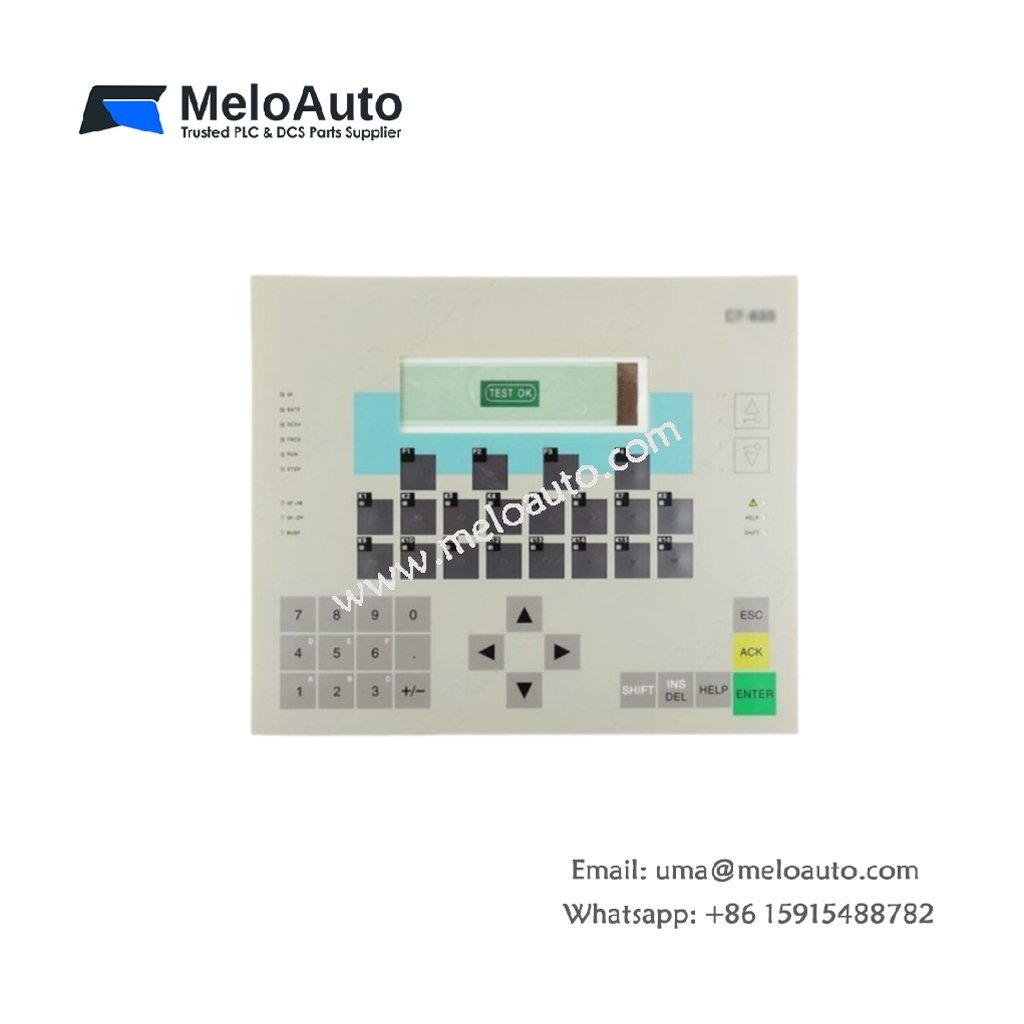

Siemens 6ES7633-1DF00-0AE3 Membrane Keyboard

This membrane keyboard switch serves as a direct replacement input component for SIMATIC panels. The Siemens 6ES7633-1DF00-0AE3 integrates tactile feedback keys for reliable operator interaction. It offers a sealed, contaminant‑resistant surface that withstands industrial environments effectively. This spare part restores full functionality to panels with worn or damaged keyboards. The assembly includes the membrane overlay, contact layer, and adhesive backing for straightforward installation.

Mechanical Dimensions and Construction Quality

The membrane measures 220 mm in width, 165 mm in height, and 1.2 mm in thickness. This compact design fits precisely into designated SIMATIC operator panel cutouts. Weighing approximately 0.08 kg, the 6ES7633-1DF00-0AE3 adds minimal mass to the panel assembly. A durable polyester overlay resists abrasion, chemicals, and repeated key presses. The protective coating also guards against dust ingress and accidental liquid spills.

Technical Specifications at a Glance

Specification	Detail
Product Type	Replacement membrane keyboard switch
Compatibility	SIMATIC operator panels (selected models)
Key Count	36 (arranged in matrix)
Key Travel	1.0 mm (tactile feedback)
Actuation Force	250 g (nominal)
Dimensions (W × H × T)	220 mm × 165 mm × 1.2 mm
Weight	0.08 kg
Contact Layer	Silver‑printed conductive traces
Overlay Material	Polyester (Matte finish)
Adhesive Backing	3M 467MP (industrial grade)
Operating Life	> 1,000,000 actuations per key
Connector Type	18‑pin flat ribbon cable (50 mm length)
Operating Voltage	5 VDC / 24 VDC (matrix scanning)
Contact Resistance	< 100 Ω (typical)
Insulation Resistance	> 100 MΩ (at 500 VDC)
Temperature Range	0 °C to +55 °C
Humidity Range	10% – 90% RH (non‑condensing)
Standards	UL 94 V‑0, RoHS compliant

Interface and Connectivity Features

An 18‑pin flat ribbon cable terminates the membrane switch for panel connection. This cable measures 50 mm in length, allowing sufficient reach to the controller board. The connector uses a standard pitch for easy insertion into the panel’s PCB header. Gold‑plated contact pads ensure low resistance and oxidation‑free connections. Key matrix scanning requires 5 VDC or 24 VDC depending on the specific panel model.

Internal Construction and Key Layout

The membrane consists of three bonded layers: overlay, spacer, and contact layer. The overlay features embossed key domes for positive tactile feedback to operators. The spacer layer creates an air gap between the contact layers. The bottom layer carries silver‑printed conductive traces for circuit completion. Pressing a key collapses the dome, closing the contact pair beneath it. The matrix arrangement uses 6 rows × 6 columns to support all 36 keys.

Installation and Replacement Procedure

To install this spare part, first remove the defective keyboard from the operator panel. Clean the mounting surface to ensure proper adhesive bonding. Then peel the protective liner from the adhesive backing carefully. Align the membrane with the panel’s locating pins or guide marks. Press the assembly firmly from the centre outward for even adhesion. Finally, connect the ribbon cable to the PCB header and test each key.

Environmental Performance and Certifications

This membrane keyboard operates reliably from 0 °C to +55 °C in indoor industrial settings. Its polyester overlay resists oils, solvents, and cleaning agents commonly used in factories. The 6ES7633-1DF00-0AE3 complies with UL 94 V‑0 and RoHS environmental standards. These approvals confirm its suitability for global automation applications.
