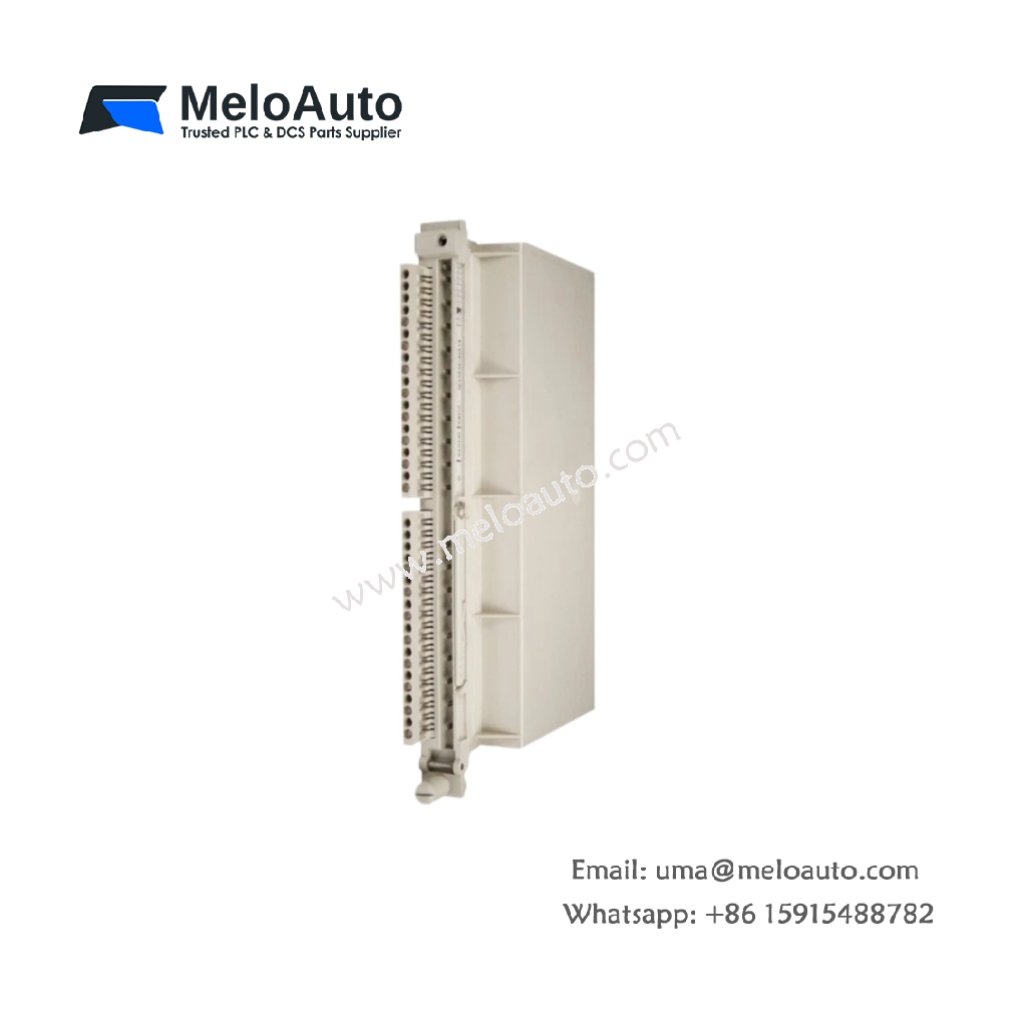

Siemens 6ES5497-4UB22 Front Connector Assembly

Product Overview

The Siemens 6ES5497-4UB22 front connector assembly provides a reliable wiring interface for SIMATIC S5 input/output modules. This unit terminates field device cables to the module’s front panel terminals. It features screw-type connections for secure and maintenance-friendly wiring. The assembly includes all necessary components for immediate installation.

Technical Specifications

Parameter	Specification
Model Number	6ES5497-4UB22
Product Type	Front Connector Assembly
Brand	Siemens
Category	PLC Connection Accessories
Compatibility	SIMATIC S5 I/O Modules
Connection Type	Screw terminals
Number of Terminals	32 positions
Wire Gauge	0.5 mm² to 2.5 mm²
Weight	Approximately 0.20 kg
Dimensions	200 mm x 50 mm x 30 mm
Protection Class	IP20
Mounting	Direct plug-in to module

Key Features and Benefits

Secure Wiring Connections
The 6ES5497-4UB22 offers screw terminals for robust and vibration-resistant connections. These terminals maintain consistent contact over time. Users benefit from reliable signal transmission and reduced maintenance requirements.

Comprehensive Terminal Density
This assembly provides 32 terminal positions for flexible field wiring arrangements. It accommodates a wide range of I/O configurations. This density simplifies cable management and reduces cabinet space requirements.

Simplified Installation
The connector plugs directly into the front of compatible S5 modules. Technicians can complete wiring connections quickly and accurately. This straightforward design minimizes installation errors and saves valuable time.

Application and Use Cases

The Siemens 6ES5497-4UB22 connects sensors, actuators, and field devices to S5 I/O modules. It also provides a neat and organized wiring interface for control cabinet installations. Maintenance teams will find this assembly a practical spare for existing systems.
