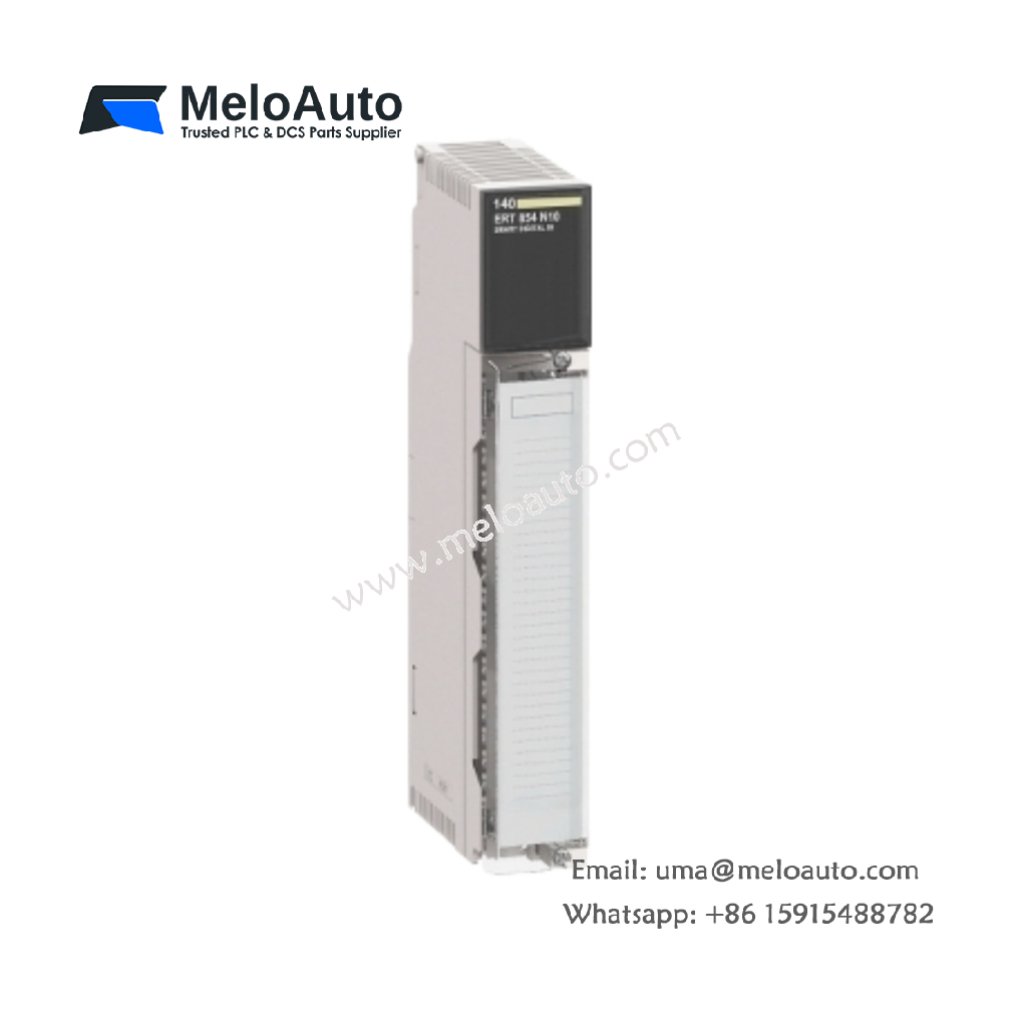

Schneider 140ERT85410 | Multifunction Input Module

The Schneider 140ERT85410 is a high-performance multifunction input module from the Modicon Quantum series. This device is specifically designed to handle industrial automation applications, ensuring consistent and reliable performance. With two groups of 16 process inputs and optocoupler isolation, it guarantees improved signal integrity and reliable operation.

Key Specifications

Specification	Details
Model Number	140ERT85410
Manufacturer	Schneider Electric
Product Type	Multifunction Input Module
Product Line	Modicon Quantum
Number of Channel Groups	2 groups of 16 process inputs
Number of Terminals	40 terminals
Electrical Connection	Screw-type terminals
Isolation Type	Optocoupler isolation
Number of Inputs	1 discrete clock input, 32 process inputs
Process Input Power Consumption	< 7.5 Watts
Cable Type	Shielded and unshielded cables
Ambient Operating Temperature	0 to 60°C
Storage Temperature	-40 to 85°C
Operating Altitude	Up to 5,000 meters (16,404 feet)

Product Description

The Schneider Electric 140ERT85410 module excels in industrial automation systems, delivering accurate process input management. With 40 screw-type terminals, this module ensures stable and secure electrical connections. It is designed to manage two groups of 16 process inputs each, providing excellent flexibility for various applications.

Moreover, the module uses optocoupler isolation to separate the two input groups. This isolation method minimizes interference between channels and enhances the reliability of the signals. Consequently, it provides higher performance, making it suitable for mission-critical applications.

This module accommodates 1 discrete clock signal input and 32 discrete process inputs, which makes it adaptable to a wide range of control systems. In addition, it consumes less than 7.5 watts of power, promoting energy-efficient operations.

Regarding connectivity, users can choose between shielded and unshielded cables for easy installation. The module supports cable lengths between 400 to 600 meters (1,312 to 1,968 feet), providing installation flexibility in various environments.

Furthermore, the 140ERT85410 operates efficiently in ambient temperatures ranging from 0°C to 60°C. It also performs well in high-altitude environments, up to 5,000 meters (16,404 feet) above sea level. When it comes to storage, the module functions well within a temperature range of -40°C to 85°C.

Applications

Industrial Automation: Ideal for process control and data management in automated systems.
Flexible Cable Options: Compatible with both shielded and unshielded cables for versatile installations.
High-Altitude Performance: Reliable operation at altitudes of up to 5,000 meters
