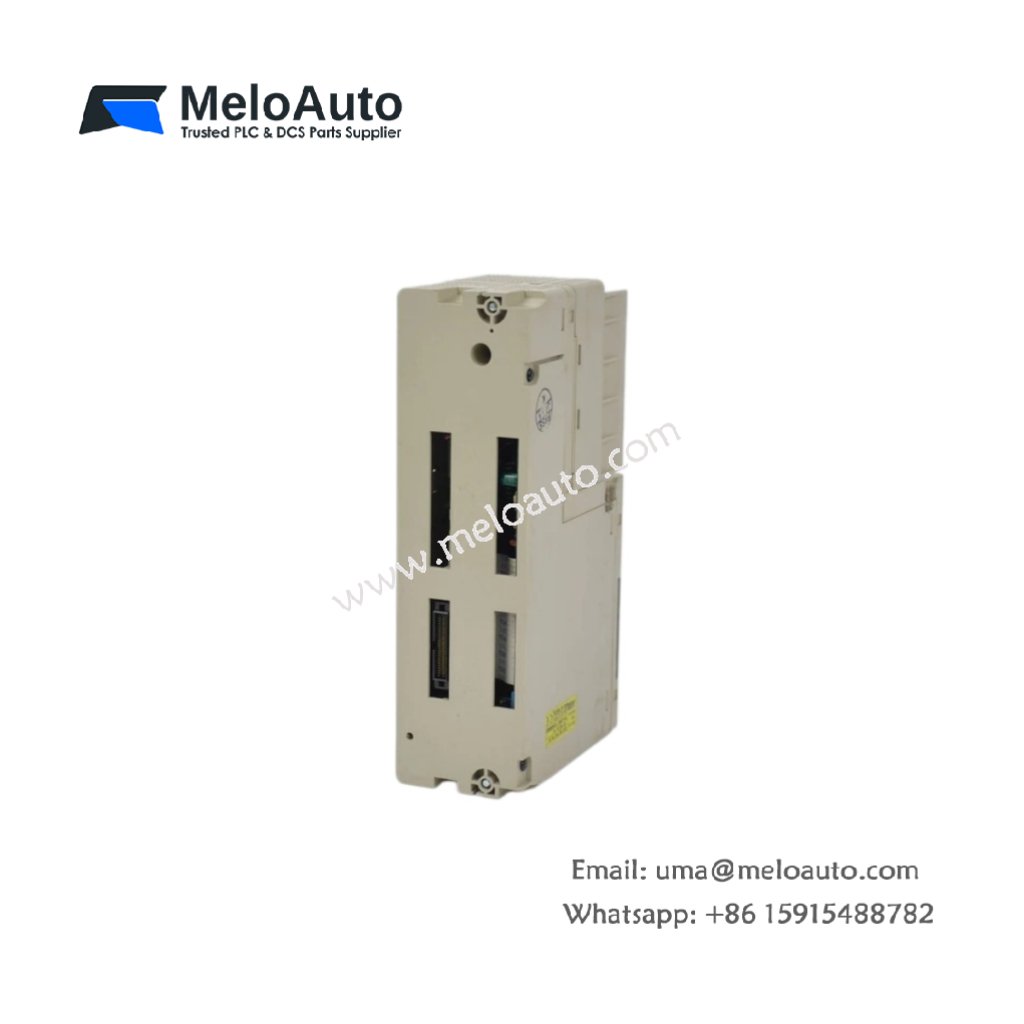

ABB 07 BR 61 R1 I/O Coupler Module for Procontic Systems

The ABB 07 BR 61 R1 links the Procontic controller with remote I/O stations. You can install this module into any standard Procontic rack slot. It manages data exchange between the CPU and distributed I/O devices. This coupler reduces wiring costs in large automation installations.

Technical Specifications and Hardware Layout

This I/O coupler module measures 130 mm in height. Its width reaches 30 mm, and the depth equals 110 mm. The ABB 07 BR 61 R1 weighs approximately 0.20 kilograms. A single internal PCB holds all bus interface and isolation circuits. The module contains no energy storage capacitors or batteries. One 9-pin D-sub connector provides the remote I/O bus interface. A 40-pin edge connector interfaces directly with the Procontic backplane. Two status LEDs indicate bus activity and module health.

Communication Performance and Capacity

The ABB 07 BR 61 R1 supports a maximum baud rate of 187.5 kbit/s. It handles up to 32 remote I/O stations on a single bus segment. The module transfers 64 bytes of input and output data per scan. Consequently, this coupler supports medium-sized distributed I/O networks. Automatic station addressing simplifies the initial commissioning process. Galvanic isolation separates the fieldbus side from the backplane logic. The module scans all connected I/O within 10 milliseconds.

Installation and Diagnostic Features

You must insert this module into any standard Procontic rack slot. Transitioning to wiring, use shielded twisted-pair cables for optimal noise immunity. The module includes built-in termination resistors for end-of-line configuration. Two front LEDs show bus communication status and module power. A watchdog timer resets the communication after 500 ms of inactivity. The operating temperature range spans from 0°C to 55°C reliably.
