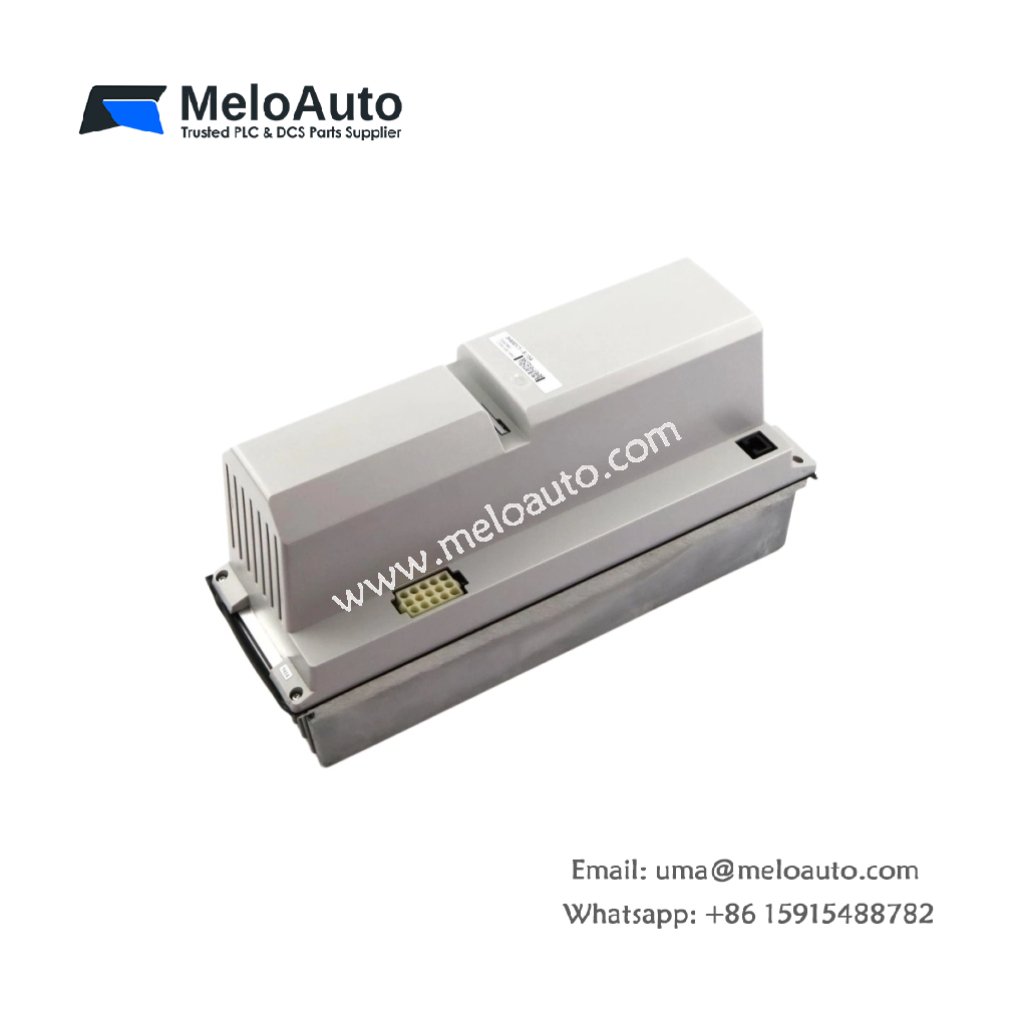

ABB 3HAB8101-8/15A Robot Servo Drive for Industrial Robotics

The ABB 3HAB8101-8/15A powers and controls servo motors in ABB robotic systems. You can install this drive into the main controller cabinet of IRB series robots. It delivers precise torque and speed regulation for axis movement. This unit suits welding, painting, and material handling robot applications.

Technical Specifications and Hardware Configuration

This robot servo drive measures 310 mm in height. Its width reaches 140 mm, and the depth equals 255 mm. The ABB 3HAB8101-8/15A weighs approximately 5.2 kilograms. A single internal power board provides all switching and regulation functions. The drive contains four large electrolytic capacitors for energy storage. These capacitors maintain bus voltage during peak torque demands. One 50-pin D-sub connector handles control signals from the robot controller. A separate terminal block manages motor power and brake connections.

Electrical Ratings and Performance Characteristics

The ABB 3HAB8101-8/15A operates from a 400 V AC three-phase supply. It delivers a continuous output current of 15 A per phase. Peak current reaches 45 A for up to 2 seconds during acceleration. The drive supports servo motors with up to 5 kW nominal power rating. Consequently, this unit handles medium-sized robot axes effectively. Internal IGBT modules provide fast switching at 8 kHz frequency. Thermal protection shuts down the drive at 85°C heatsink temperature.

Installation and Diagnostic Features

You must mount this drive vertically inside the robot controller cabinet. Transitioning to wiring, use shielded cables for all motor and feedback connections. The front panel includes seven LEDs for detailed fault diagnosis. These LEDs show power, ready, run, and error conditions clearly. For safety, discharge the internal capacitors for five minutes before servicing. The operating temperature range sits between 5°C and 45°C reliably.
