ABB 07 PR 62 R1 Procontic Program Memory EPROM Module

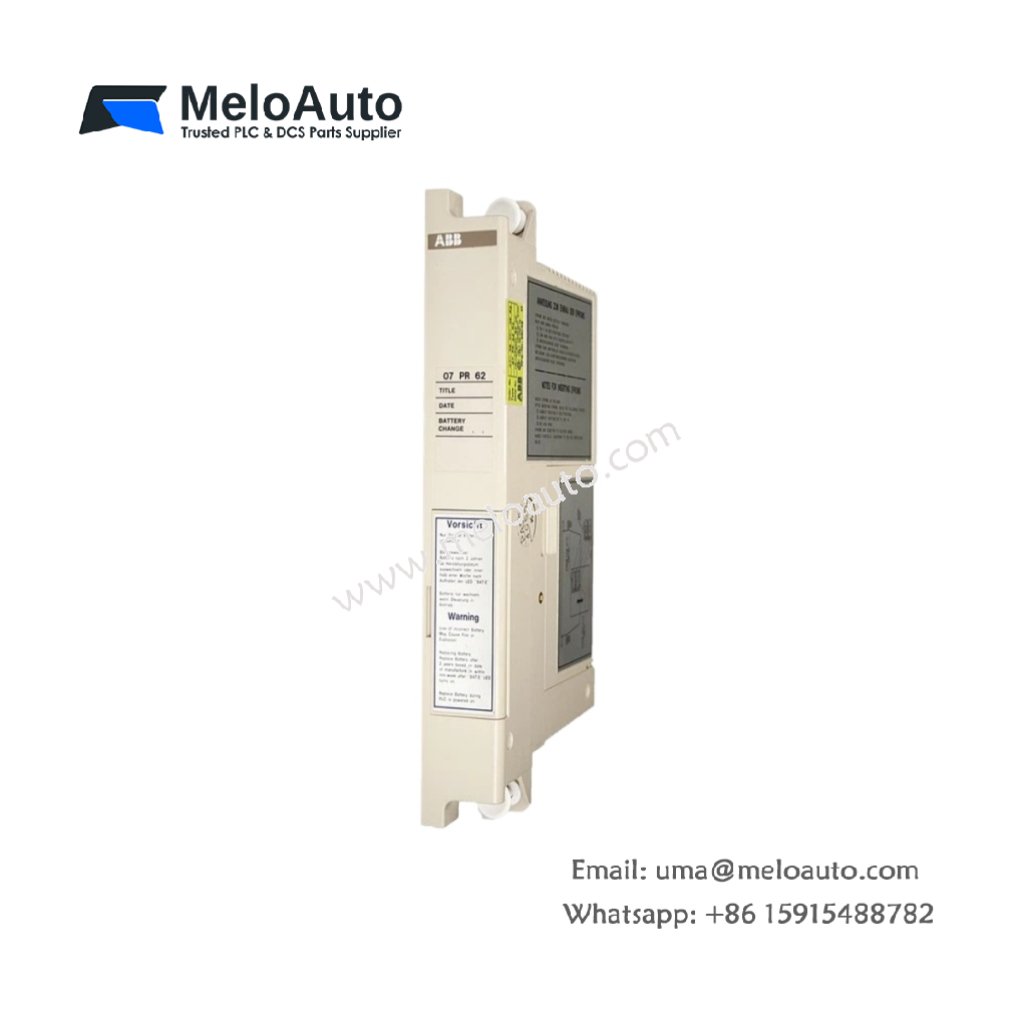

This module stores user programs for ABB Procontic control systems. The ABB 07 PR 62 R1 provides non-volatile memory for permanent program retention. It measures 120 mm in width and 85 mm in height. This unit weighs approximately 0.12 kg for rack mounting.

Technical Specifications Table

Parameter	Value
Product Model	ABB 07 PR 62 R1
Brand	ABB
Category	Procontic Program Memory EPROM Module
Compatible Series	ABB Procontic PLC
Memory Technology	EPROM (Erasable Programmable Read-Only Memory)
Storage Capacity	32 KB (32768 bytes)
Memory Width	8-bit parallel interface
Dimensions (W x H x D)	120 mm x 85 mm x 20 mm
Weight	0.12 kg
Connection Type	1 x 32-pin dual-in-line male header
Internal Components	2 x EPROM chips with quartz windows
Programming Voltage	12.5 V DC for programming
Access Time	200 ns maximum
Data Retention	Approximately 10 years (non-volatile)
Energy Storage	None (no battery required)
Erasure Method	UV light (254 nm wavelength, 20-30 minutes)
Operating Temperature	0°C to 55°C

Internal Design and Non-Volatile Storage

This memory module contains two EPROM chips with transparent quartz windows. The ABB 07 PR 62 R1 retains all program data without any battery backup. UV light erases the memory contents through the quartz windows for reprogramming. The chips store PLC logic, configuration parameters, and text messages permanently. This non-volatile design guarantees data integrity during long-term power loss. You will never need to replace batteries or worry about data decay.

Installation and Programming Guide

First, power down your Procontic PLC completely before handling this module. Next, locate the memory slot on your CPU board. Then, align the 32 gold-plated pins carefully with the socket. Press the module downward until it seats firmly in place. Use a standard EPROM programmer with 12.5 V DC to write data to the chips. Cover the quartz windows with opaque labels after programming to prevent accidental erasure. This module works with ABB Procontic CPU boards and compatible systems. Expose the windows to strong sunlight or fluorescent light can slowly corrupt stored data.
