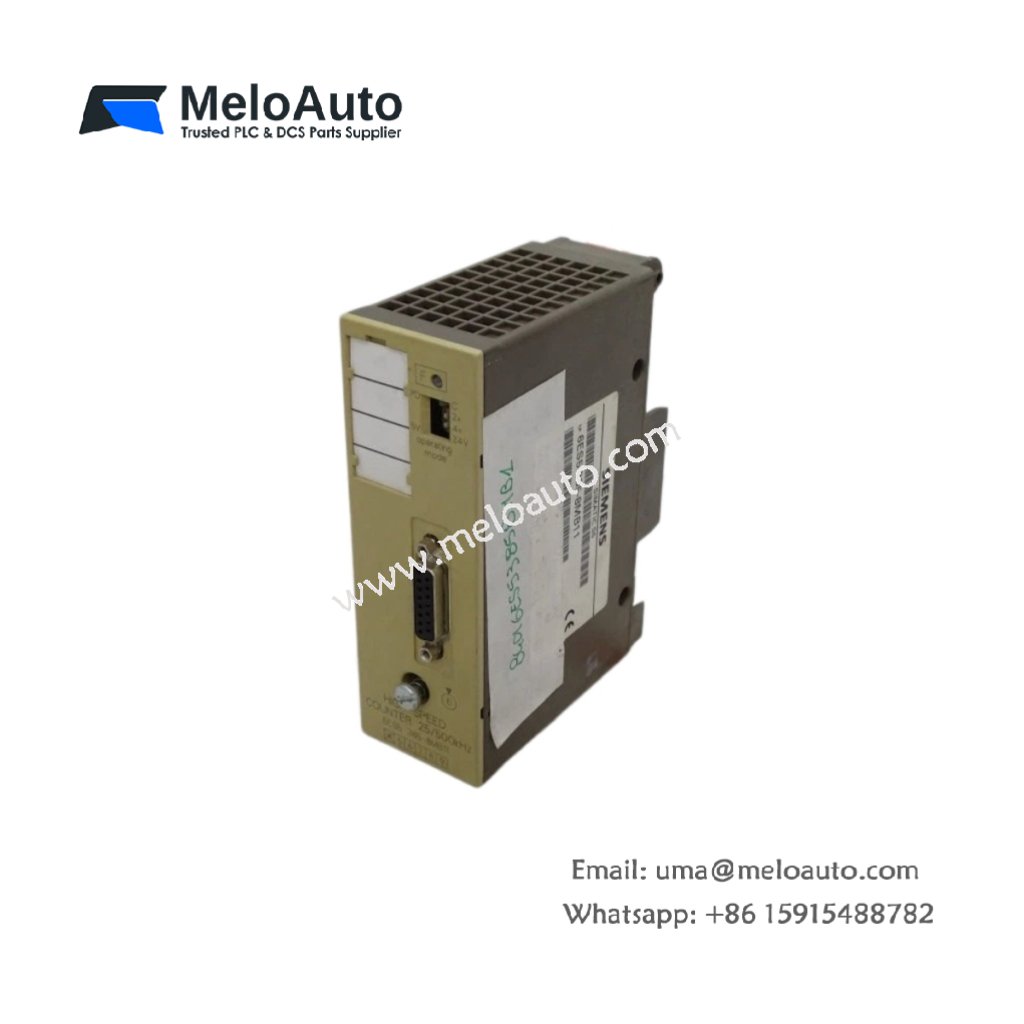

Siemens 6ES5385-8MB11 Counter Module

The Siemens 6ES5385-8MB11 Counter Module is designed to provide precise and reliable counting functions in industrial automation systems. As part of the SIMATIC S5 series, this module allows for accurate measurement and processing of signals, enhancing control in various applications. It is ideal for tasks requiring counting, monitoring, and control of digital signals in manufacturing processes.

Key Features and Specifications of the Siemens 6ES5385-8MB11

The Siemens 6ES5385-8MB11 Counter Module offers advanced functionality and easy integration with SIMATIC S5 PLCs. Below are its detailed specifications:

• Dimensions: 150mm x 100mm x 25mm
• Weight: 250 grams
• Counter Channels: 4 channels for efficient signal counting
• Rated Voltage: 24V DC for stable and consistent operation
• Input Current: 2-3mA per channel for low power consumption
• Mounting Type: Compatible with SIMATIC S5 racks for straightforward installation
• Operating Temperature: Operates within a range of 0°C to 60°C for diverse environments
• Protection: Includes overvoltage and short-circuit protection to ensure system safety
• Compatibility: Fully compatible with SIMATIC S5 PLCs and automation devices

Reliable Signal Counting and Processing

The Siemens 6ES5385-8MB11 Counter Module provides 4 channels for precise counting and signal processing. Each channel supports 2-3mA of input current, ensuring minimal power consumption. By accurately processing input signals, the module guarantees the smooth operation of automation systems.

Durability and Protection

Designed for industrial environments, the Siemens 6ES5385-8MB11 Counter Module operates effectively across a temperature range from 0°C to 60°C. The module also includes overvoltage and short-circuit protection, preventing electrical faults from affecting system performance and providing enhanced reliability.

Easy Installation and Integration

The Siemens 6ES5385-8MB11 Counter Module is designed for quick and easy installation. Its compact size allows it to fit seamlessly into SIMATIC S5 racks, minimizing installation time. Additionally, the module integrates smoothly with other SIMATIC S5 devices, contributing to efficient system control.

Applications

The Siemens 6ES5385-8MB11 Counter Module is ideal for applications requiring precise counting and control of digital signals. It is widely used in manufacturing, process automation, and industrial control systems where accurate data processing and signal monitoring are critical.
