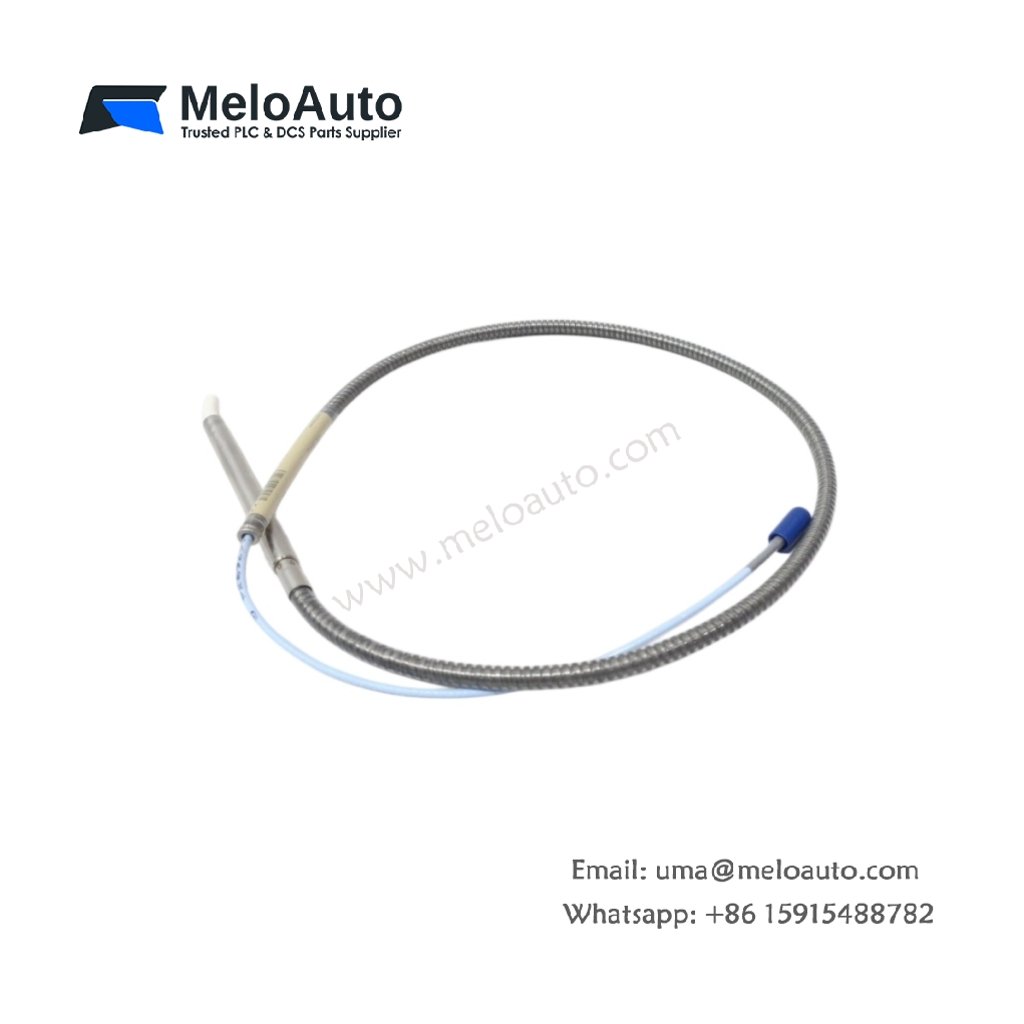

Bently Nevada 109549-01 Photoelectric Probe

Once-Per-Turn Reference with the 109549-01

The 109549-01 generates once-per-turn reference pulses for Bently Nevada machinery monitoring systems. This photoelectric probe detects a reflective target on the rotating shaft. Reliability engineers therefore use it for phase measurement, speed tracking, and balance calculations. Its threaded body mounts onto a bracket near the shaft without special adapters.

Detailed Technical Parameters

Pulse clarity defines the 109549-01, because the optical sensor responds to reflective tape targets with fast rise times. The probe emits a light beam and detects the returned reflection. Meanwhile, the sealed housing shields the optics from oil mist and dust. Review the essential specifications in the table below.

Integration into Monitoring Systems

The 109549-01 mounts on a bracket and aligns with the reflective target on the shaft. Commissioning engineers adjust the gap during startup procedures. Consequently, phase reference channels return to service quickly after probe replacement. The optical sensor produces clean pulses across the full speed range. Furthermore, the sealed housing resists oil mist and dust on turbine decks.

Why Plants Choose This Probe
