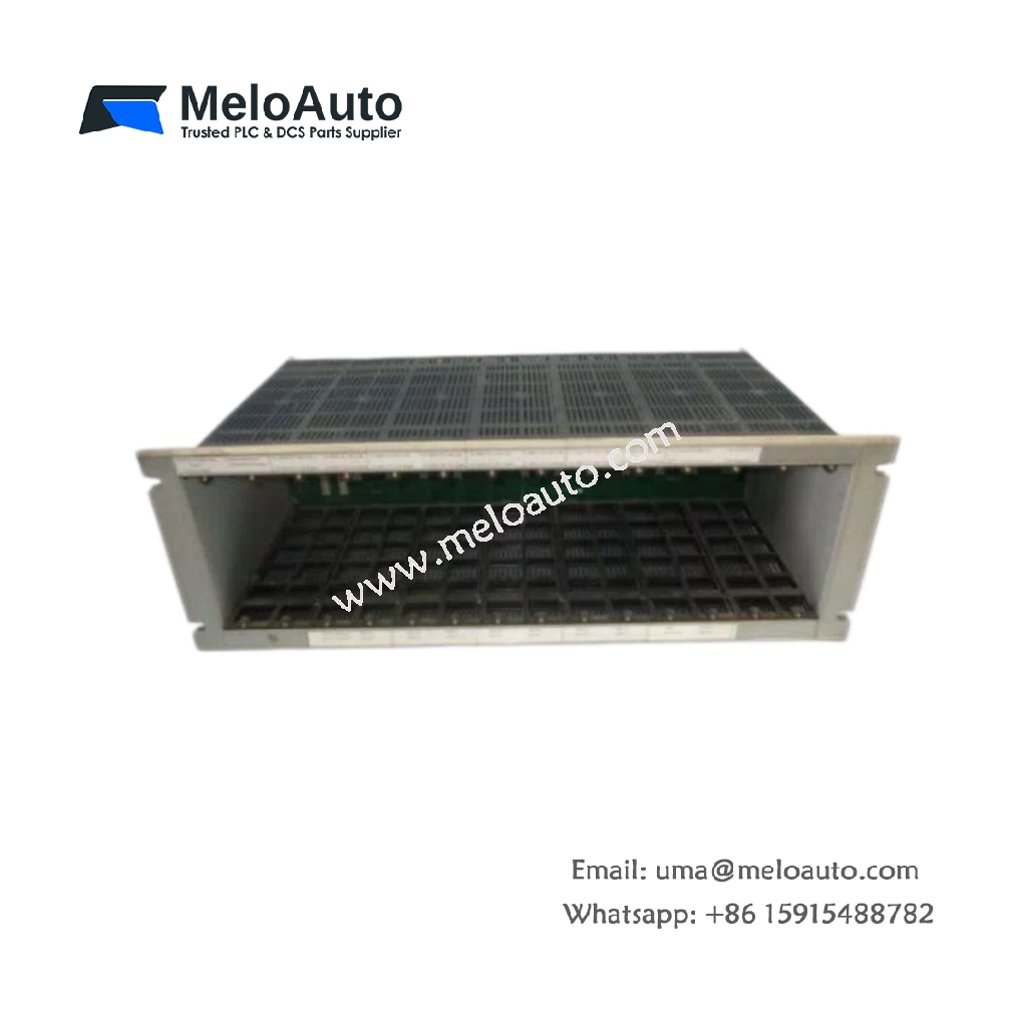

Bently Nevada 3300/05 Monitoring System Chassis

Modular Rack for 3300 Series Protection Modules

The Bently Nevada 3300/05 monitoring system chassis provides a rugged housing for 3300 series protection modules. This rack accommodates up to six individual monitors for comprehensive machinery protection applications. The chassis serves as the physical foundation for continuous vibration and position monitoring systems.

Technical Specifications

Modular Architecture for System Flexibility

This chassis accepts any combination of 3300 series monitor modules for customized configurations. Each of the six card slots provides a consistent mechanical and electrical interface. The internal backplane distributes power and signal buses efficiently to every occupied position. This modular approach enables you to scale your monitoring system as needs change.

Simplified Module Installation and Keying

Precision guide rails ensure smooth insertion and removal of each monitor card. Physical keying prevents incorrect module placement within the chassis. Clear labeling identifies each slot position for straightforward maintenance. Consequently, operators can replace modules quickly without specialized tools.

Robust Construction for Industrial Environments

Steel construction with corrosion-resistant coating protects internal components from harsh conditions. Convection cooling eliminates the need for fans, thereby reducing maintenance requirements. The chassis operates reliably across a wide temperature range from -30°C to +65°C. Furthermore, the rugged design withstands significant mechanical vibration in plant settings.

Flexible Power Supply Integration

The backplane supports both 3300/12 single power supplies and 3300/14 dual supplies. This flexibility enables redundant power configurations for critical applications. The chassis distributes power to all installed modules through a common bus architecture. You can configure the system for either DC or AC power input.

Seamless Field Wiring Access

The chassis provides convenient termination points for all field wiring connections. Terminal blocks accept various wire gauges for flexible installation. The backplane design minimizes wiring complexity by consolidating common signals. Additionally, the compact 222 x 267 x 152 mm footprint saves valuable panel space.
