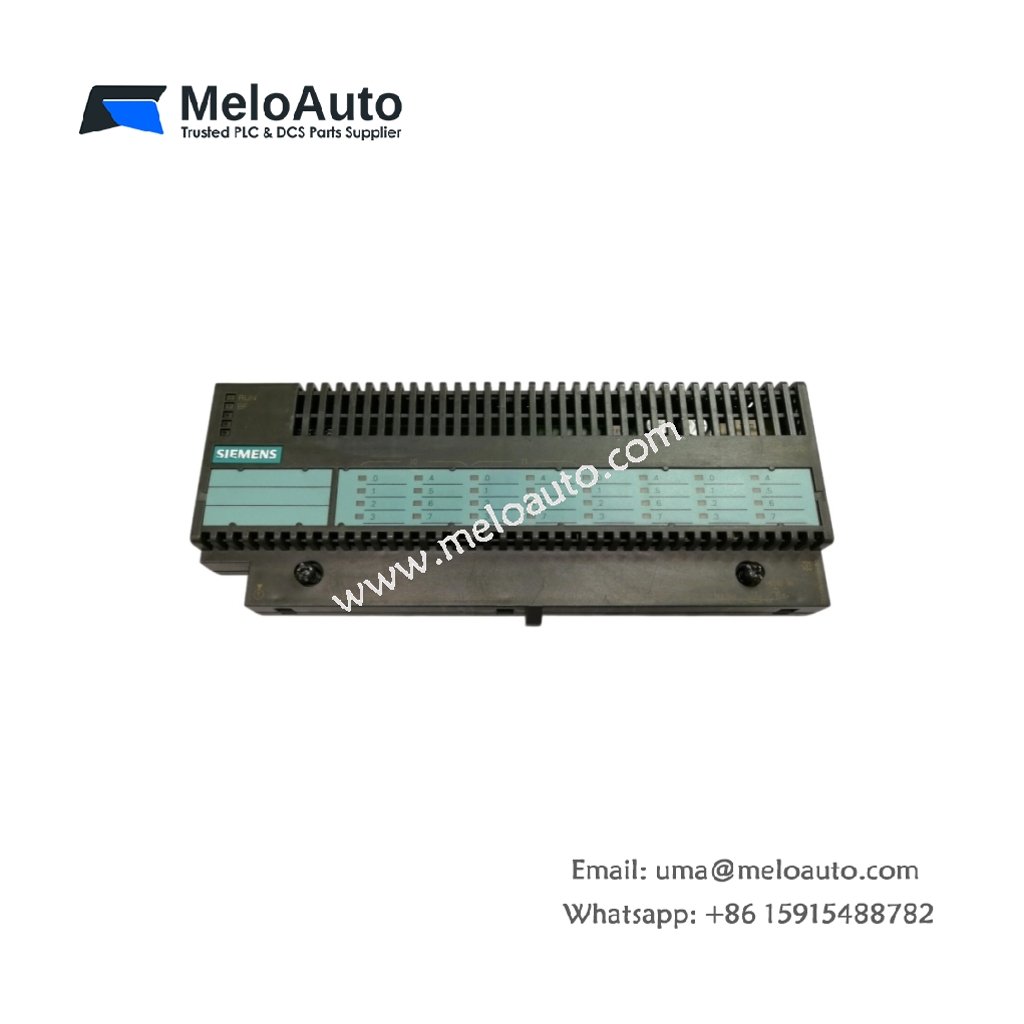

Siemens 6ES7131-0BL00-0XB0 Digital Input Module

This electronic module captures digital signals from field sensors and pushbuttons reliably. The Siemens 6ES7131-0BL00-0XB0 provides 16 discrete input channels for 24 VDC logic signals. It forms a key component of the ET 200 series distributed I/O family. The module includes integrated diagnostic functions for channel-level fault detection. Its compact design saves significant cabinet space compared to traditional I/O solutions.

Mechanical Dimensions and Construction Quality

The electronic module measures 70 mm in height, 55 mm in depth, and 15 mm in width. This slim profile makes it ideal for high-density I/O configurations. Weighing only 0.08 kg, the 6ES7131-0BL00-0XB0 places minimal load on the mounting rail. A robust plastic housing protects internal circuits against dust and mechanical stress. This housing meets IP20 requirements for safe installation inside control cabinets.

Technical Specifications at a Glance

Specification	Detail
Input Channels	16 (discrete, 24 VDC)
Nominal Voltage	24 VDC
Input Voltage Range	11 – 30 VDC
Input Current	5.5 mA (typical per channel)
ON-state Threshold	≥ 11 VDC
OFF-state Threshold	≤ 5 VDC
Input Delay	2.0 ms (typical)
Dimensions (H × W × D)	70 mm × 15 mm × 55 mm
Weight	0.08 kg
Connection Type	16‑point spring‑clamp (via base unit)
Wire Gauge Range	0.14 – 1.5 mm²
Backplane Current	25 mA at 5 VDC
Power Dissipation	0.8 W
Isolation Voltage	1500 VAC (channel‑to‑bus)
Diagnostics	Channel and module status
Temperature Range	-25 °C to +60 °C
Humidity Range	5% – 95% RH (non‑condensing)
Standards	UL 508, CSA, CE
Protection Rating	IP20
LED Indicators	16 for channel status, 1 for power

Interface and Connectivity Features

The Siemens 6ES7131-0BL00-0XB0 interfaces with the ET 200 base unit for field wiring. This base unit provides spring‑clamp terminals for 0.14 to 1.5 mm² wires. Front‑panel LEDs display the status of all 16 input channels individually. A green power LED confirms the presence of the 24 VDC supply. The module connects to the backplane via a standard ET 200 interface.

Power Architecture and Diagnostic Capabilities

The electronic module draws a low 25 mA from the 5 VDC backplane supply. It also requires a separate 24 VDC supply for the input circuits. The module provides channel‑by‑channel diagnostic information to the controller. Diagnostic LEDs indicate short‑circuit or overload conditions on each input. This detailed feedback speeds up troubleshooting and reduces machine downtime.

Internal Component Architecture

Sixteen optocouplers provide galvanic isolation between the field side and the backplane. This isolation withstands 1500 VAC, protecting the controller from electrical noise. The module uses a programmable filter to suppress interference from contact bounce. The PCB contains 64 surface‑mount resistors and 32 ceramic capacitors. A dedicated ASIC handles the communication with the ET 200 backplane.

Environmental Performance and Certifications

This digital input module operates reliably from -25 °C to +60 °C in factory environments. It also performs consistently in humidity conditions from 5% to 95% without condensation. The 6ES7131-0BL00-0XB0 complies with UL 508, CSA, and CE standards. These approvals ensure global compatibility and safe installation in industrial systems.
