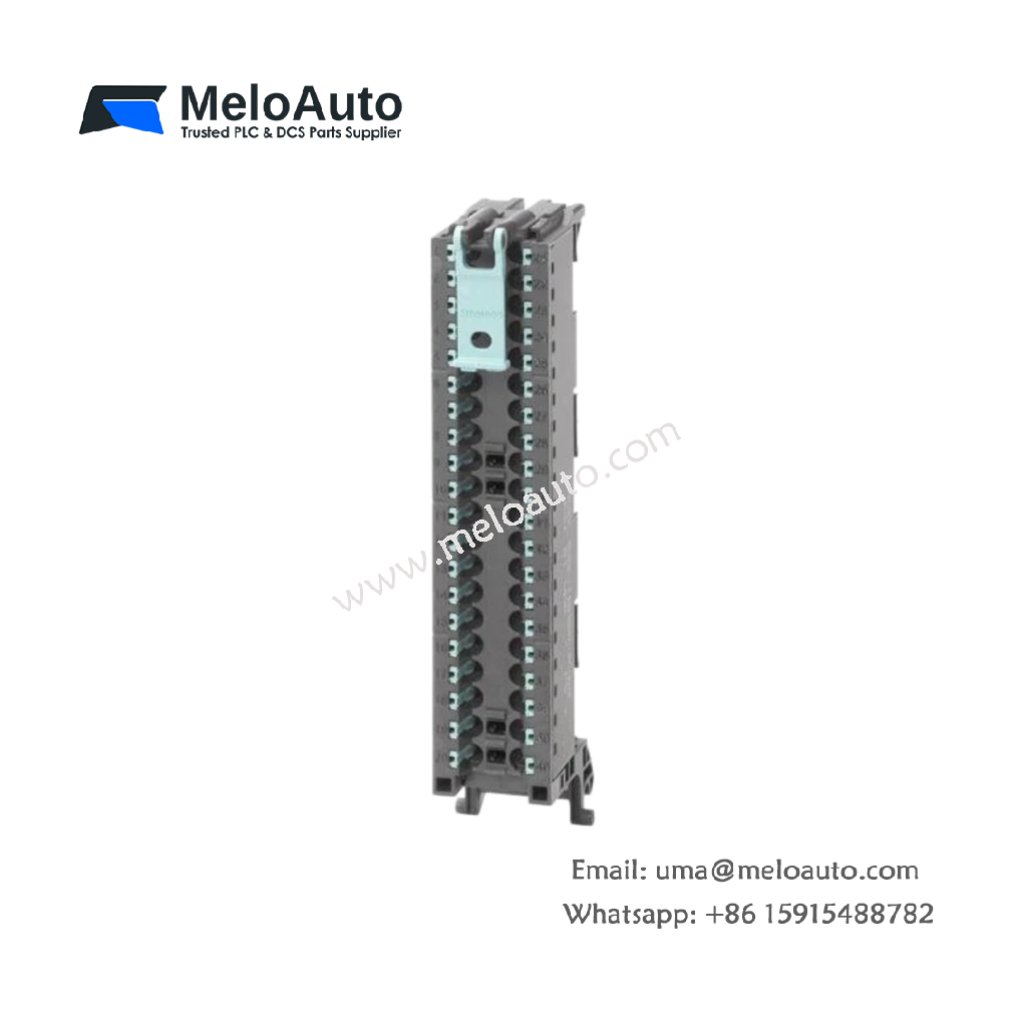

Siemens 6ES7592-1BM00-0XB0 Front Connector

Technical Specifications and Connector Design

This front connector provides field wiring termination for Siemens SIMATIC S7-1500 I/O modules. The Siemens 6ES7592-1BM00-0XB0 connects sensors and actuators to the automation system securely. You can install this connector onto any S7-1500 I/O module front panel. Its screwless push-in design allows rapid wire insertion without special tools. The connector weighs approximately 0.15 kilograms. Its dimensions measure 11 cm in height, 5 cm in width, and 4 cm in depth.

Parameter	Specification
Brand	Siemens
Model	6ES7592-1BM00-0XB0
Category	Front Connector / I/O Wiring Terminal
Weight	0.15 kg
Height	11 cm
Width	5 cm
Depth	4 cm
Number of Terminals	40 terminals (2 rows of 20)
Terminal Type	Push-in (spring clamp)
Wire Gauge Range	0.2 to 1.5 mm² (AWG 24 to 16)
Stripping Length	8 to 10 mm recommended
Rated Voltage	250V AC maximum
Rated Current per Terminal	8 Amps
Connection Type	40-pin female header (mates with module)
Coding Element	Removable coding pins (included)
Housing Material	Polyamide (PA66), UL94 V-0 rated
Contact Material	Tin-plated copper alloy
Operating Temperature	-25°C to +60°C
Energy Storage	None (passive component)
Component Count	1 housing, 40 spring clamps, 1 labeling strip

Push-in Technology and Wiring

The push-in spring clamp mechanism secures wires without screws or tools. You simply insert a stripped wire into the terminal opening firmly. The Siemens 6ES7592-1BM00-0XB0 releases the wire by pressing a small orange push-button. A standard 2.5 mm screwdriver activates the release mechanism for each terminal. The spring maintains constant pressure on the wire for reliable contact. Consequently, vibration will not loosen the connection over time. Each terminal accepts solid or stranded copper wire exclusively. You can also use ferruled wires with this connector type.

Module Compatibility and Mounting

This connector fits all S7-1500 I/O modules with 40-pin interfaces. The connector locks onto the module with a integrated latching mechanism. The Siemens 6ES7592-1BM00-0XB0 includes removable coding pins for mechanical keying. These pins prevent incorrect connector installation on the wrong module. You can attach the included labeling strip for wire identification. The connector carries pre-printed terminal numbers for easy reference. You can remove the connector without disturbing any field wiring.

Installation and Wiring Guidelines

You must mount the connector onto the module before snapping the latching lever. The coding pins must match the corresponding sockets on the module. You should strip exactly 8 to 10 mm of insulation from each wire end. Longer strips risk short circuits between adjacent terminals. The Siemens 6ES7592-1BM00-0XB0 requires no maintenance after installation. You should label each wire according to your electrical schematic drawings. The connector does not require any power or configuration for operation. You should verify each wire inserts fully into the terminal opening.
