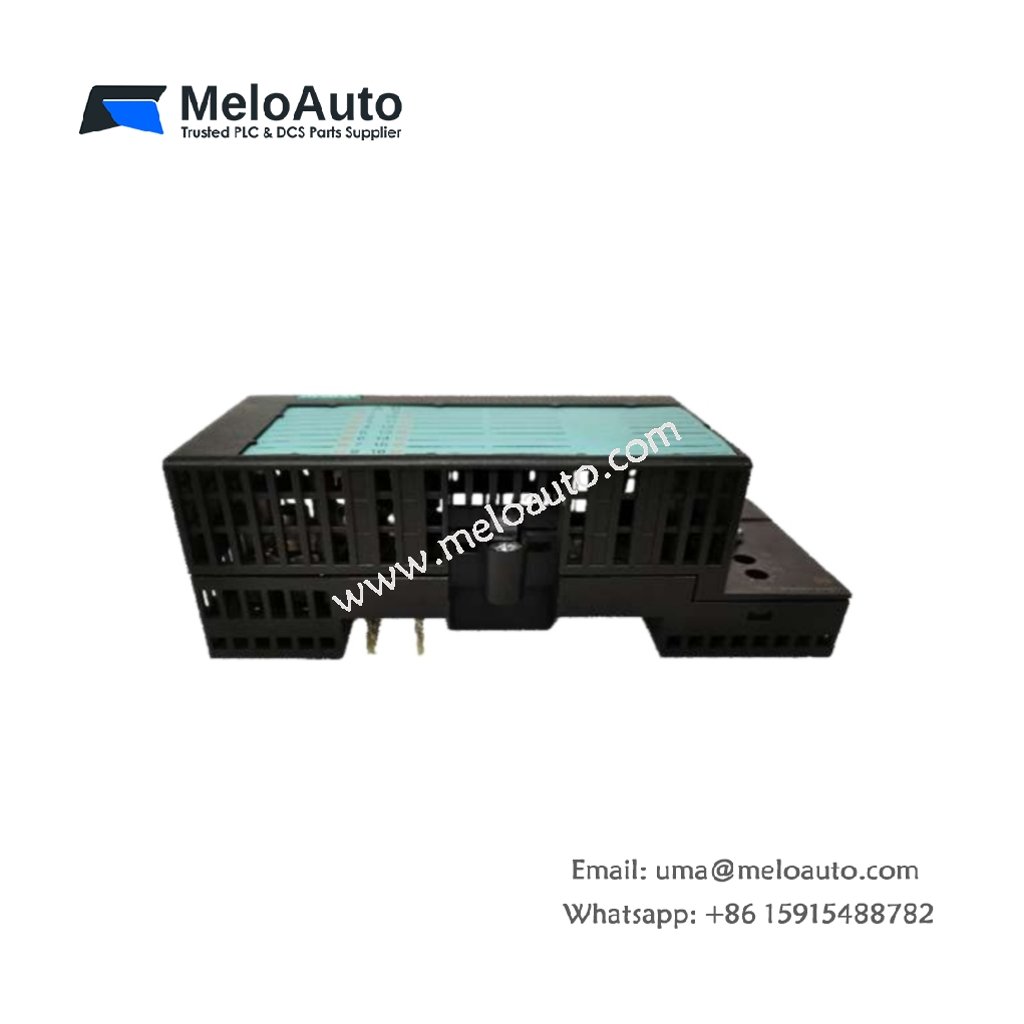

Siemens 6ES7132-1JH00-0XB0 SIMATIC DP Electronic Block

This electronic block provides reliable high-density switching for digital output applications. It integrates seamlessly into the Siemens SIMATIC DP distributed I/O system. The unit controls up to sixteen independent load circuits from a single module. Users can drive contactors, solenoids, and indicator lamps with consistent performance.

Output Channel Configuration and Electrical Ratings

This module features sixteen transistor outputs for positive-switching applications. Each channel delivers 0.5 A of continuous current at 24 V DC nominal voltage. The total current per common group reaches 4 A for combined load management. The output voltage ranges from 20.4 V to 28.8 V DC for stable operation. Each channel includes built-in short-circuit protection for reliable performance.

Switching Performance and Response Characteristics

The 6ES7132-1JH00-0XB0 achieves a typical switching time of 0.5 ms for reliable output activation. Turn-on delay measures approximately 0.1 ms for high-speed control applications. Each output includes built-in transient suppression for inductive load protection. This suppression extends the operational lifespan of connected field devices. Consequently, users experience reduced maintenance costs and fewer unexpected failures. The module also supports output validation for critical applications.

Diagnostic Functions and Fault Detection

This module includes comprehensive diagnostic capabilities for reliable operation. It detects short-circuits and reports them to the CPU immediately. The module also monitors overload conditions and limits current automatically. Diagnostic messages appear in the PLC program for operator response. Each channel includes a green LED that illuminates when the output remains active. A red “Fault” LED signals group-level errors for quick identification.

System Integration and Configuration

This module communicates with the CPU through the ET 200 backplane bus. It maps outputs directly to the PLC memory for straightforward programming. Users configure the module using TIA Portal or STEP 7 software. The software provides intuitive tools for diagnostics and parameter settings. Configuration data is stored in the CPU for automatic recognition. This plug-and-play design simplifies commissioning and module replacement.

Channel Grouping and Load Management

The module organizes its sixteen outputs into four isolated groups of four channels each. This grouping enables independent load management for different voltage requirements. Each group includes a dedicated common return terminal for simplified wiring. Users can connect loads with varying current demands across different groups. This flexibility accommodates diverse field devices within a single module. Furthermore, group isolation prevents fault propagation between different sections.

Energy Consumption and Environmental Specifications

The module draws 60 mA at 5 V DC from the backplane for internal logic. External load power comes from the field supply via dedicated terminals. The unit dissipates approximately 2 W under full operational load. Natural convection cooling maintains safe temperatures across all output channels. Consequently, the operating temperature range spans 0 °C to 60 °C for standard factory environments. Humidity tolerance reaches 10% to 95% without condensation concerns.

Installation and Space-Efficient Design

This module features a 45 mm width for efficient use of cabinet space. The compact form factor enables high-density installations in distributed systems. Installers snap the unit onto a standard DIN rail without tools. The module connects to adjacent ET 200 modules via integrated bus connectors. A removable terminal block simplifies field wiring and maintenance. The housing carries an IP20 rating for protection against solid objects. This robust design suits packaging lines, conveyor systems, and material handling equipment.
