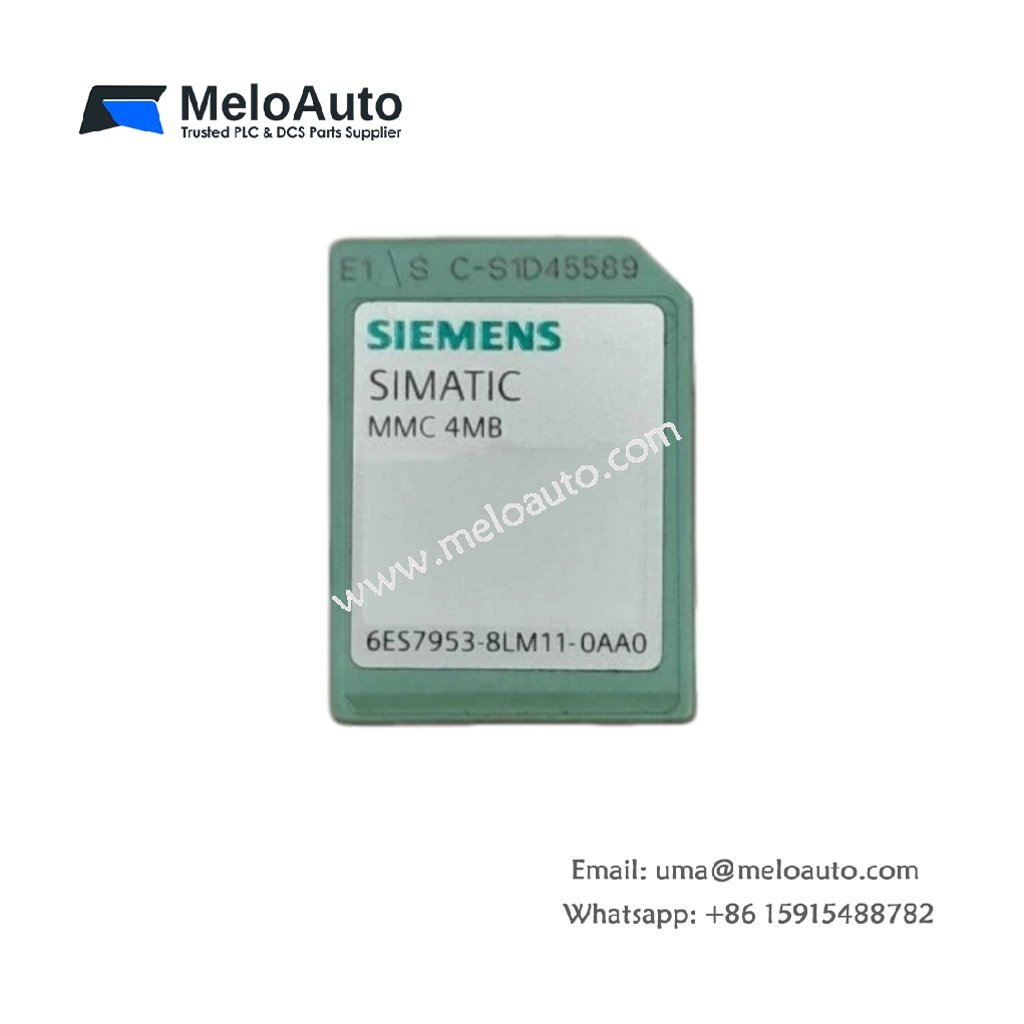

Siemens 6ES7953-8LM11-0AA0 Expansion Module

This expansion module provides additional memory storage for critical automation applications. It integrates seamlessly into the Siemens SIMATIC S7-300 and S7-400 programmable controller platforms. The unit offers reliable data retention for user programs and system parameters. Users can store large application programs, recipes, and historical data with confidence.

Memory Capacity and Storage Specifications

This module provides substantial non-volatile storage for program and data backup. It offers 8 MB of flash memory for reliable long-term data retention. The unit stores user programs, configuration data, and diagnostic logs effectively. Users can also archive recipes and process parameters for future retrieval. This capacity supports demanding applications with extensive data requirements. Consequently, engineers can implement complex automation strategies without memory limitations.

Data Storage and Program Management

The 6ES7953-8LM11-0AA0 provides reliable storage for user programs and system data. It stores both the program logic and the associated parameter sets. The module also holds diagnostic buffers and historical process data effectively. Users can update stored programs without losing existing data. The memory retains all information without a battery backup. This feature ensures data integrity even during extended power outages.

System Compatibility and Integration

This expansion module is compatible with the full S7-300 and S7-400 product families. It fits into the dedicated memory card slot on CPUs and interface modules. The unit automatically interfaces with the CPU for seamless data exchange. Users can transfer programs and data between multiple controllers using this card. The module also supports firmware updates and system expansions efficiently. Consequently, users achieve consistency across multiple machines and production lines.

Application Flexibility and Use Cases

This expansion module supports various application requirements across industries. Users can store multiple alternative programs for different production modes. The module also archives historical data for quality assurance and auditing. In addition, users can store multilingual HMI text libraries for operator interfaces. The memory supports storing complex control algorithms for advanced automation tasks. This versatility makes it a valuable component for modern manufacturing facilities.

Installation and Operational Simplicity

This module inserts directly into the CPU’s memory card slot without tools. Users simply push the card into place until it locks securely. The CPU automatically recognizes the module upon power-up. No additional configuration or software settings are required. Users can also remove the card while the CPU remains powered. However, we recommend using the proper removal procedure to ensure data integrity. This straightforward installation minimizes system downtime and operator training.

Reliability and Data Protection

This memory module employs advanced flash technology for exceptional reliability. The unit withstands more than 100,000 write cycles for long-term durability. Data retention remains guaranteed for an extended operational lifespan. The module includes built-in error detection for data integrity verification. Furthermore, the card is immune to magnetic fields and physical shock. This robust design ensures reliable operation in demanding industrial environments.
