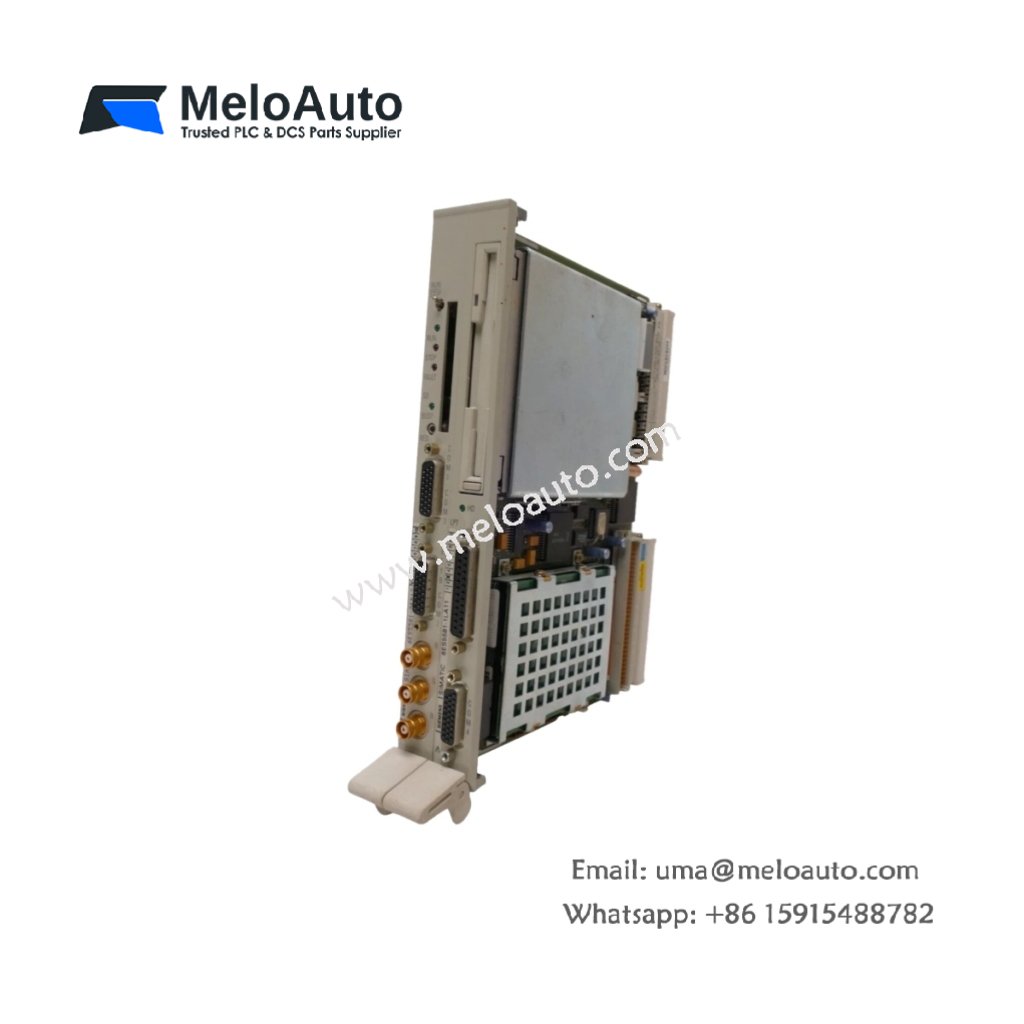

Siemens 6ES5581-0EB12 Basic Assembly

This basic assembly forms the foundation for SIMATIC S5 I/O modules. It provides the mechanical housing and backplane interface for daughter boards. Therefore, this component suits custom automation solutions requiring flexible hardware configurations.

Physical Dimensions and Weight Specifications

The Siemens 6ES5581-0EB12 features a rugged metal frame for industrial use. Its width occupies one standard slot in the S5 rack. The total depth reaches 233 mm for backplane connectivity. Consequently, technicians can mount this assembly alongside other S5 modules seamlessly.

Interface Types and Connector Layout

The Siemens 6ES5581-0EB12 provides a 20-pin backplane connector for power and data. A separate 48-pin front connector handles field I/O wiring. The housing includes guide rails for secure daughter board insertion. Hence, users can swap functional boards without removing the base assembly.

Component Count and Structural Elements

This basic assembly contains one stamped metal chassis with anti-corrosion coating. The chassis holds two DIN 41612 connectors for internal signal routing. You will also find four plastic guide tabs for board alignment. An integrated grounding clip connects the housing to the rack earth.

Energy Storage and Power Distribution

The Siemens 6ES5581-0EB12 contains no active electronic components. It simply routes power from the backplane to the inserted daughter board. The assembly can carry up to 2A across its internal traces. Therefore, this basic assembly supports most standard S5 I/O modules.

Mechanical Durability and Installation

The assembly withstands 500 insertion cycles on both connectors. Its metal housing dissipates heat from internal electronics effectively. Users can install this unit using standard S5 rack screws. This straightforward mounting reduces maintenance time during module replacements.
