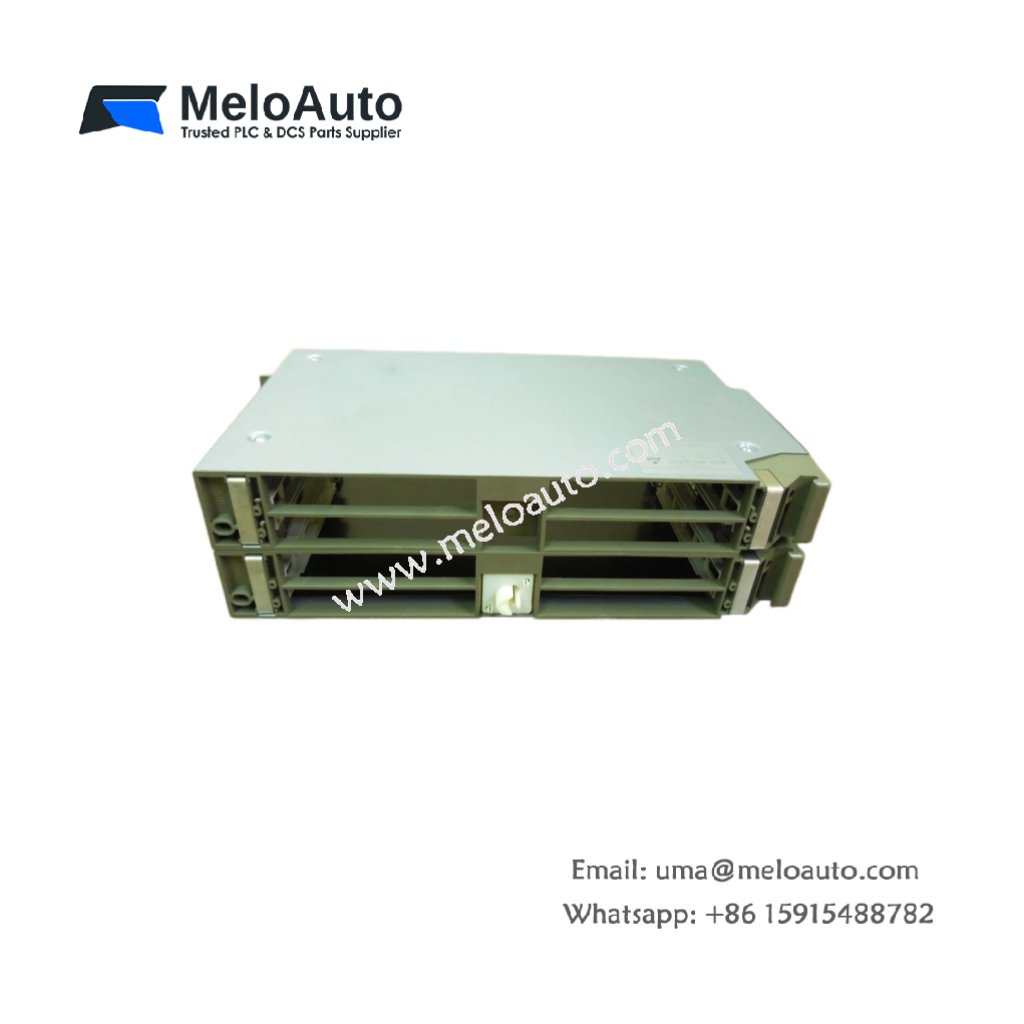

Siemens 6ES5491-0LD11 Casing Adapter

Modular PLC systems require adapters for expanding I/O capacity across different chassis. The Siemens 6ES5491-0LD11 casing adapter fulfills this critical expansion function. This adapter connects S5-115U and S5-115F modules to S5-135U and S5-155U systems. It enables flexible system configuration without replacing existing modules.

Technical Architecture and Specifications

This casing adapter features a compact design for mounting between chassis assemblies. Its dimensions measure 25.0 cm in width and 23.0 cm in height. The Siemens 6ES5491-0LD11 weighs approximately 1.2 kilograms for secure installation. It connects to the main chassis via a ribbon cable interface. This cable carries power and communication signals between systems.

The internal assembly contains a passive backplane with connector slots for up to four modules. Engineers will note the absence of active electronic components or energy storage devices. This passive design eliminates electronic failure points entirely. The adapter draws power from the main chassis through the connecting cable. It requires no additional power supply for operation.

Module Compatibility and Configuration

The Siemens 6ES5491-0LD11 accommodates up to four S5-115U or S5-115F modules. Each slot accepts standard I/O modules, function modules, or communication processors. For system integration, it uses the same backplane protocol as S5-135U and S5-155U systems. The adapter maintains full functionality of all installed modules. Status indicators on the main chassis reflect the presence of connected modules. You can explore similar industrial expansion solutions for reference.

Specification	Detail
Model	6ES5491-0LD11
Manufacturer	Siemens
Product Line	SIMATIC S5
Dimensions (W x H)	25.0 cm x 23.0 cm
Weight	1.2 kg
Compatible Modules	S5-115U, S5-115F
Target Systems	S5-135U, S5-155U
Module Capacity	Up to 4 Modules
Active Components	None (Passive Design)
Connection	Ribbon Cable Interface
Power Source	Main Chassis via Cable

System Integration and Reliability

The Siemens 6ES5491-0LD11 operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 60°C. The passive design ensures long-term reliability without electronic failures. Maintenance personnel can install or remove modules without powering down the main chassis. This modular approach reduces system downtime during expansion or maintenance activities. The adapter provides a cost-effective solution for upgrading S5 systems.
