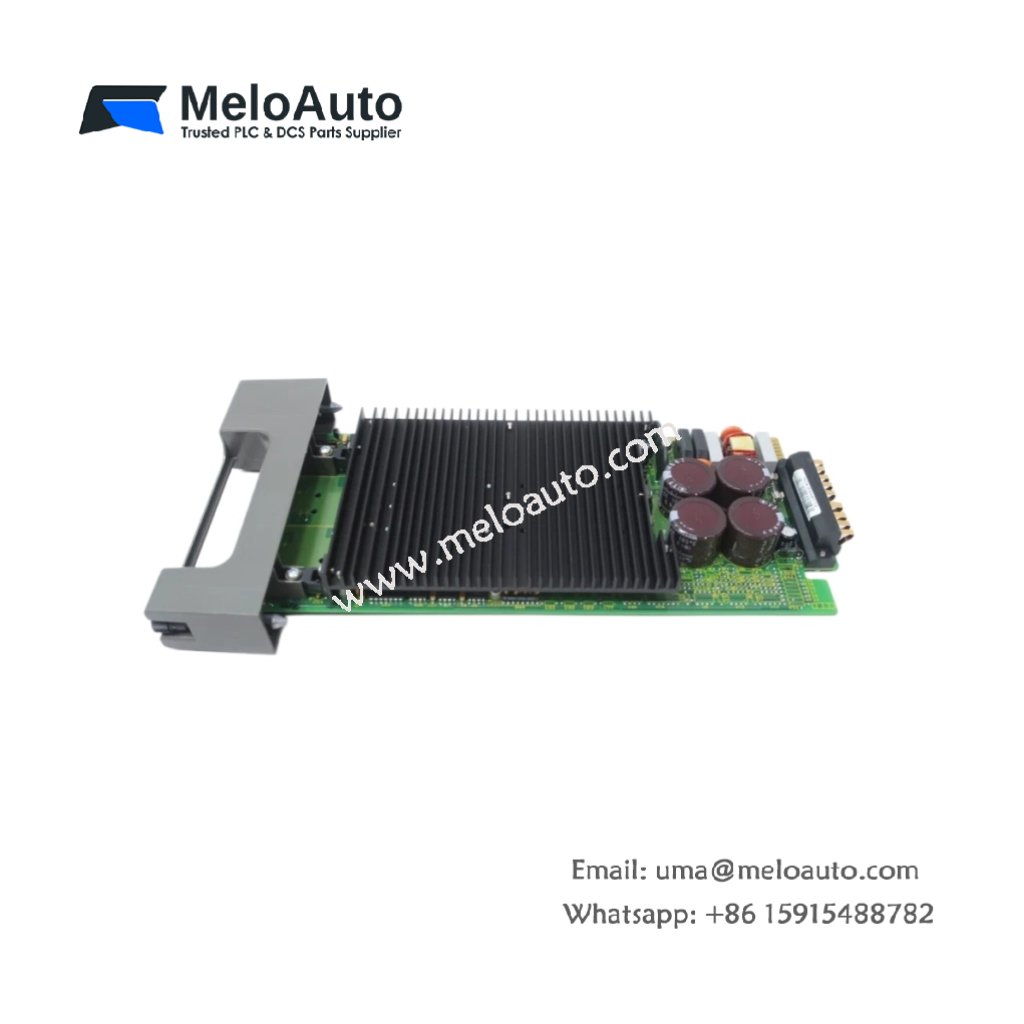

ABB Bailey IEPAF02 | Infi-90 AC Field Power Supply Module

High-Performance AC Power Supply for INFI 90 Systems

The ABB Bailey IEPAF02 is a highly efficient AC Field Power Supply Module tailored for integration with the Infi 90 control system. It provides reliable power delivery to field devices and ensures seamless operation in industrial control environments.

Key Features of the ABB Bailey IEPAF02

The IEPAF02 delivers exceptional performance with flexibility and robust protection features. Its high efficiency and adjustable output make it an excellent choice for demanding applications.

Manufacturer: ABB
Model: IEPAF02
Category: AC Field Power Supply Module

Technical Specifications

Feature	Specification
Input Voltage	120/240 VAC (Selectable)
Frequency Range	47-63 Hz
Output Voltage	Adjustable from 0 to 110 VDC
Output Current	Up to 2.5 A continuous, 3.5 A peak
Operating Temperature	-20°C to +70°C
Dimensions (L x W x H)	482mm x 178mm x 287mm (19″ x 7″ x 11.3″)
Weight	20 lbs (9 kg)
Efficiency	Up to 90%
Mounting Type	DIN Rail Mountable
Protection	Short Circuit Protection
Indicators	LED Operating Status Indicators

Optimized Efficiency for Industrial Power Systems

The ABB Bailey IEPAF02 ensures optimal power efficiency, achieving up to 90% efficiency. This reduces unnecessary heat generation and minimizes power consumption, making it ideal for continuous operation in demanding industrial environments.

Flexible Configuration with Adjustable Output

This AC power supply module allows for adjustable output voltage ranging from 0 to 110 VDC, offering flexible configuration for various field excitation requirements. Whether powering sensors, actuators, or other field devices, the IEPAF02 adapts to meet specific system needs.

Enhanced Protection and Durability

The IEPAF02 includes short circuit protection to safeguard both the module and downstream equipment. In addition, it is designed to operate across a wide temperature range of -20°C to +70°C, ensuring durability in various industrial settings. The DIN rail mountable design simplifies installation within control cabinets, enhancing system integration.

Visual Feedback with LED Indicators

To facilitate monitoring, the IEPAF02 features LED indicators that provide clear visual feedback on the module’s operating status. This feature aids in quick diagnostics, ensuring the system runs smoothly and efficiently.

Applications of the ABB Bailey IEPAF02

The ABB Bailey IEPAF02 is essential in industrial automation and process control. Its versatility makes it suitable for a wide range of applications, such as:
