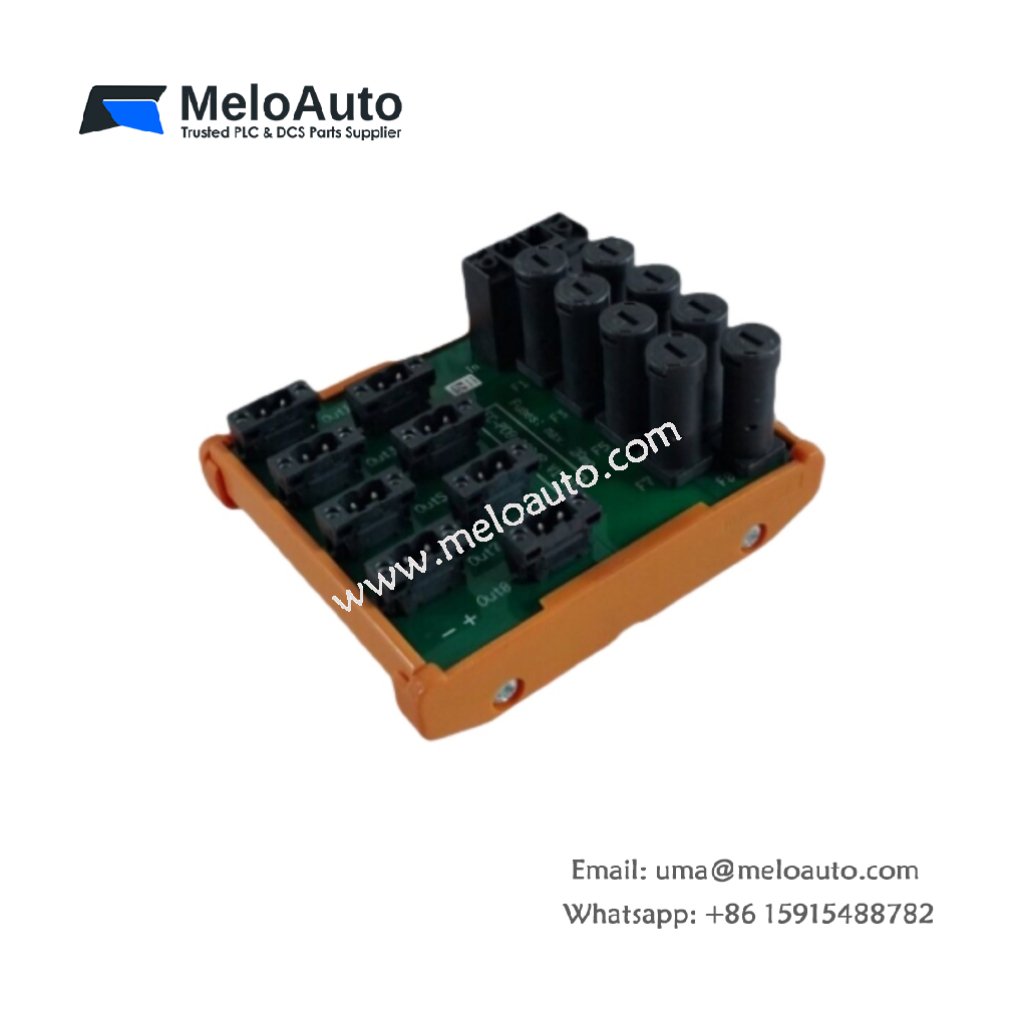

Honeywell FC-PDB-0824P Power Distribution Board

The Honeywell FC-PDB-0824P is a robust power distribution board designed to provide reliable 24V DC power to various devices in industrial automation systems. With its modular design, this power distribution board ensures flexibility and ease of integration into control systems. It also includes built-in protection features, ensuring safe and efficient operation in demanding environments.

Key Features:

Reliable Power Supply: The FC-PDB-0824P provides consistent 24V DC power to multiple devices.
Modular Design: Its flexible design allows for easy integration and expansion within control systems.
Built-in Protection: Includes essential protection features to safeguard the system against faults and overloads.
Temperature Range: Capable of operating in extreme conditions, from -40°C to +70°C.
High Current Capacity: Each output can handle up to 2 A, making it suitable for a variety of industrial applications.

Technical Specifications:

Specification	Details
Model	Honeywell FC-PDB-0824P
Product Type	Power Distribution Board
Input Voltage	24 VDC
Output Voltage	24 VDC
Number of Outputs	8
Current Rating	2 A per output
Operating Temperature	-40°C to +70°C
Mounting	DIN Rail (TS32/TS35 x 7.5)
Connectors	– Input: 2-pole header with keying (Weidmuller BVZ 7.62/02F SW) – Field: 2-pole socket block (Weidmuller BLZ 5.08/2F SN SW)
Approvals	CE, UL, TUV, CSA (pending)
Fuses	– Fuse Rating: Max. 2 AT (slow acting) – Fuse Dimensions: 5 x 20 mm
Module Dimensions	94 x 109 x 71 mm (L x W x H)
Used Rail Length	95 mm (3.74 in)

Advantages of the Honeywell FC-PDB-0824P:

Efficient Power Distribution: Delivers consistent 24V DC to various devices, ensuring uninterrupted performance.
High Current Handling: Each output is rated at 2 A, which is ideal for controlling devices that require moderate power.
Built-in Protection: Integrated features safeguard the system from overloads and faults, improving reliability.
Wide Operating Temperature Range: The module operates effectively in temperatures ranging from -40°C to +70°C, suitable for harsh industrial environments.
Flexible and Modular Design: Its modular approach allows for easy installation and future scalability.
DIN Rail Mounting: The DIN rail compatibility provides secure installation in control cabinets.

Why Choose the Honeywell FC-PDB-0824P?

The Honeywell FC-PDB-0824P is an ideal solution for industrial automation systems that require reliable power distribution. With high current capacity, flexible mounting options, and built-in protection, this module ensures safe operation in a variety of demanding environments. Its wide operating temperature range and modular design make it an excellent choice for both existing systems and new installations.
