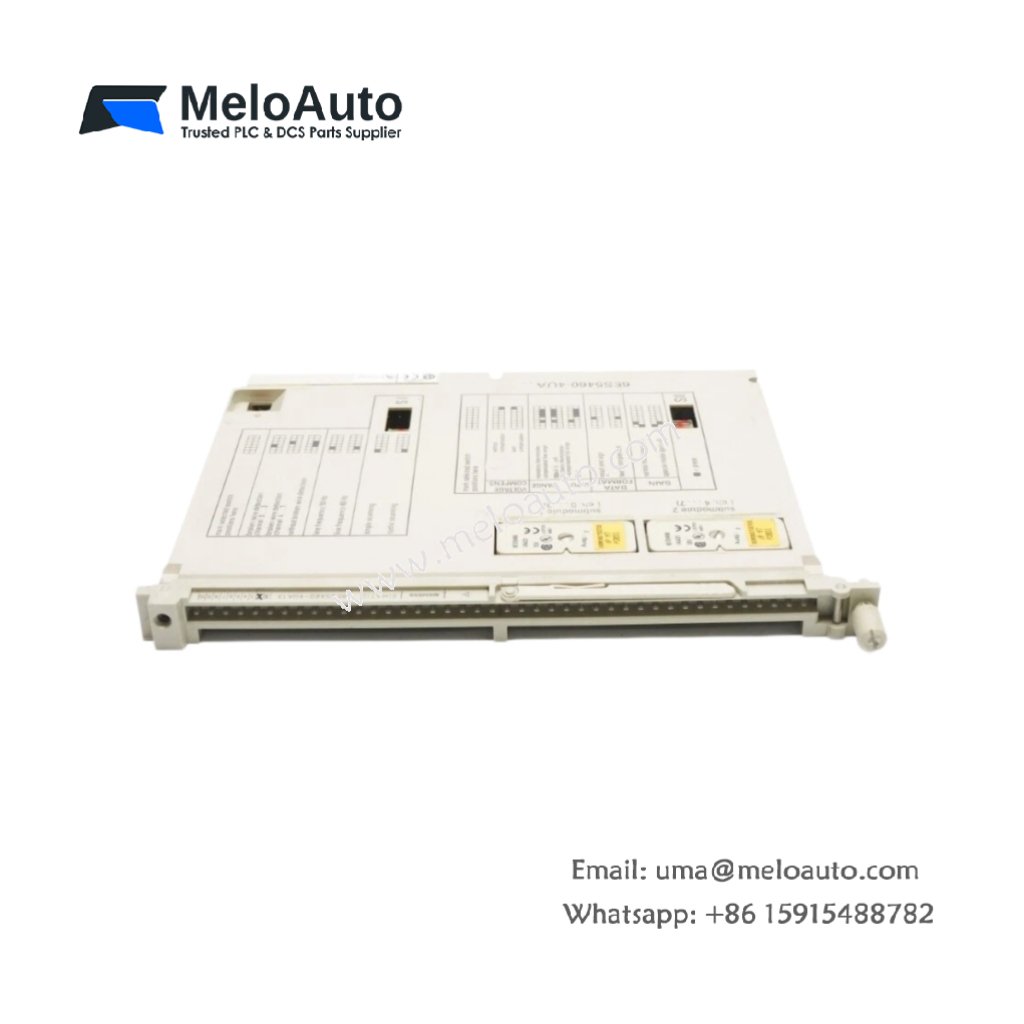

Siemens 6ES5460-4UA13 Analog Input Module

Engineered for SIMATIC S5 Process Signal Acquisition

This module converts analog field signals into digital values for the CPU. It provides precise measurement for the Siemens 6ES5460-4UA13 unit. You will find this analog input card in the SIMATIC S5 series. Unlike low-channel modules, this version supports eight independent inputs. It handles both voltage and current signals from field sensors.

Technical Specifications & Physical Dimensions

We designed this analog input module for industrial measurement accuracy. The table below presents all verified technical specifications.

Parameter	Specification
Physical Dimensions (W x H x D)	160mm x 125mm x 50mm
Total Weight	0.58 kg (580 grams)
Analog Input Channels	8 differential inputs
Input Voltage Range	0V to 10V DC (±10V optional)
Input Current Range	0mA to 20mA (4-20mA selectable)
Resolution	12 bits (4096 counts)
Conversion Time	25 milliseconds per channel
Input Impedance	100 kΩ (voltage) / 250 Ω (current)

Functional Architecture and Signal Conditioning

This module connects to sensors like transmitters and thermocouples. It uses eight differential inputs for noise rejection. You can configure each channel for voltage or current independently. Moreover, the module includes programmable gain amplifiers on every input. These components scale weak signals for optimal resolution. Consequently, the board delivers accurate 12-bit readings across all channels.

Installation and Operational Guidelines

The Siemens 6ES5460-4UA13 scans all 8 channels in 200 milliseconds. It provides 500V isolation between analog circuits and the backplane. You must set each channel’s input type using DIP switches. Always use shielded twisted-pair cables for analog signals. This practice reduces common-mode noise interference significantly. Furthermore, the module supports wire-break detection for 4-20mA loops. This feature alerts operators to sensor failures immediately.

Physical Characteristics and Environmental Limits

This analog input module has a rugged, industrial-grade plastic housing. Its substantial 0.58 kg weight reflects the eight-channel design quality. The layout follows Siemens standard S5 module specifications. Therefore, it fits securely into any SIMATIC S5 rack. The module requires one slot width for installation. In addition, it maintains stable operation between 0°C and 60°C ambient temperature. You can store this unit safely between -40°C and 85°C.
