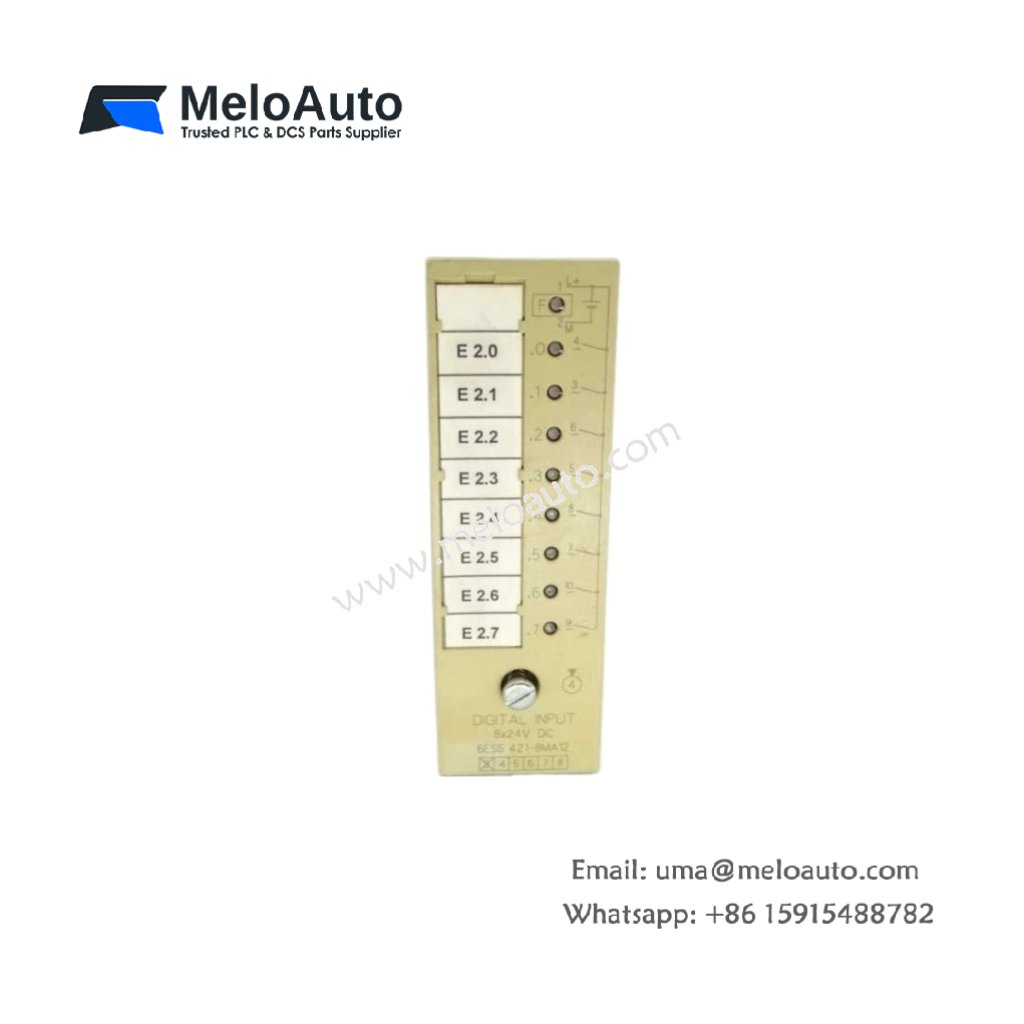

Siemens 6ES5421-8MA12 | SIMATIC S5 Digital Input Module

The Siemens 6ES5421-8MA12 monitors 16 digital input points at 48V DC or 115V AC. This high-voltage module suits industrial environments with legacy power standards. You can connect limit switches, proximity sensors, and pushbuttons directly without level converters. It filters out electrical noise to ensure reliable signal detection. Consequently, this module replaces older relay-based input cards in retrofit projects.

Technical Specifications Overview

Parameter	Detailed Specification
Model	Siemens 6ES5421-8MA12
Category	SIMATIC S5 Digital Input Module (High Voltage)
Number of Inputs	16 (grouped in 2 groups of 8)
Rated Voltage AC	115V AC (93V to 132V, 50/60 Hz)
Rated Voltage DC	48V DC (40V to 56V)
Input Current	6 mA (AC) / 8 mA (DC) per channel
Input Delay	15 ms (AC) / 5 ms (DC) typical
Signal 0 (Off)	< 30V AC / < 15V DC
Signal 1 (On)	> 79V AC / > 32V DC
Isolation Voltage	1500V AC (channel to backplane)
Internal Power Draw	200 mA from 5V backplane
External Supply	Not required (uses input loop power)
Dimensions	250 mm x 25 mm x 130 mm (single-width)
Weight	0.46 kg (460 grams)
Front Connector	Requires Siemens 6ES5497-4UB12 (20-pin screw type)
Indicators	16 green LEDs (one per channel)
Operating Temperature	0°C to 60°C

Functional Features and Input Processing

The Siemens 6ES5421-8MA12 uses optocoupler isolation for each input channel. You can mix AC and DC signals across different groups on the same module. The onboard filter removes contact bounce and industrial interference effectively. Furthermore, the module stores the complete input image for immediate CPU access.

Each of the two groups shares a common return terminal. Therefore, you need separate neutrals for electrically isolated input circuits. The 16 green LEDs show real-time status changes on the front panel. You can monitor these lights for quick troubleshooting without any software tool.

Installation and Wiring Guidelines

First, install a compatible frontal connector on the Siemens 6ES5421-8MA12. Next, insert the module firmly into any standard S5 rack slot. Then, connect the field wiring to the appropriate terminal pins. Finally, apply the external input voltage from your control transformer.

You must fuse each input group for short-circuit protection. The module does not provide internal current limiting on input channels. Always use wire rated for the maximum input voltage (115V AC). Furthermore, keep high-voltage wiring separate from low-level signal cables.

This digital input module works perfectly for upgrading legacy machinery. It interfaces directly with 110V AC control circuits from older equipment. The Siemens 6ES5421-8MA12 also suits 48V DC battery-powered systems. You can replace the module without disconnecting the frontal wiring harness.
