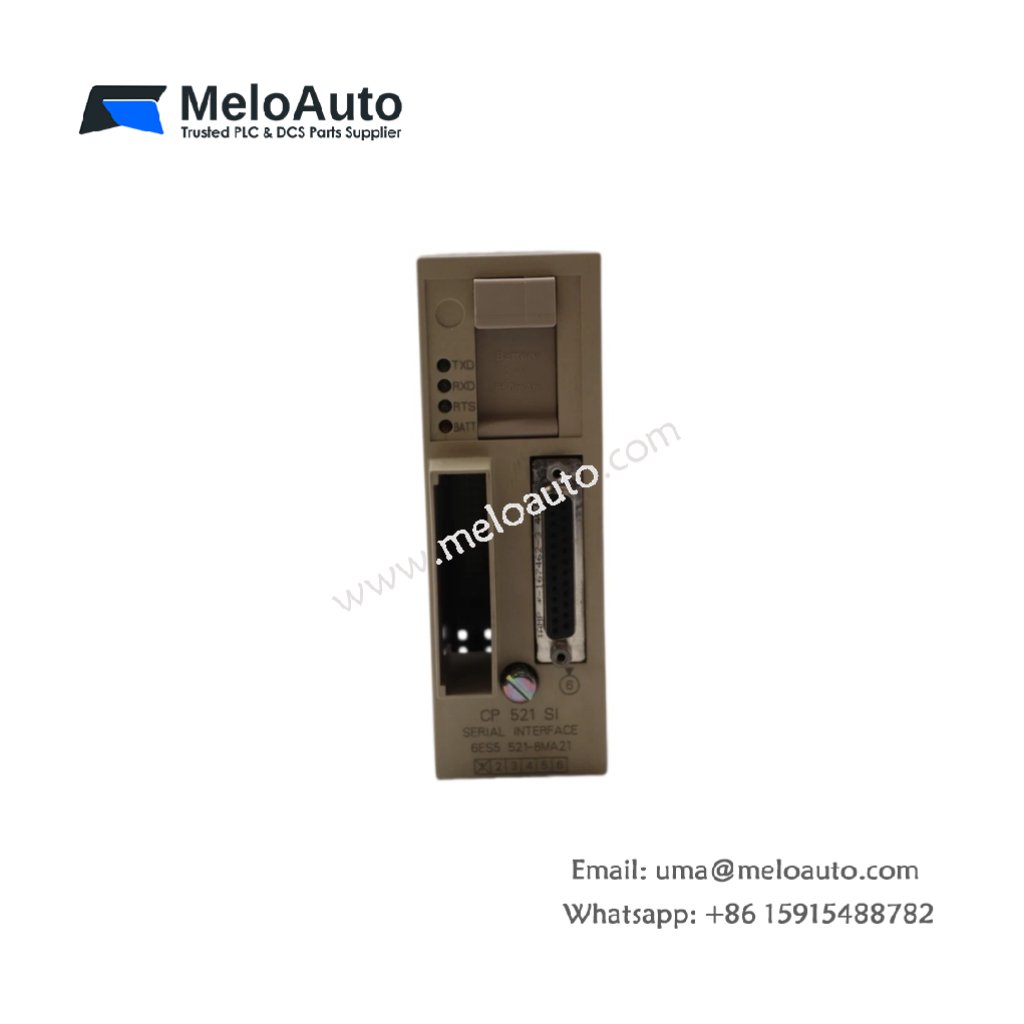

Siemens 6ES5521-8MA21 Communication Processor

Engineered for SIMATIC S5 Serial Data Exchange

This processor manages serial communication for S5 CPUs. It provides reliable data transfer for the Siemens 6ES5521-8MA21 unit. You will find this communication card in the SIMATIC S5 series. Unlike standard interfaces, this version supports multiple protocols. It handles both point-to-point and multi-drop network configurations.

Technical Specifications & Physical Dimensions

We designed this communication processor for industrial data exchange. The table below presents all verified technical specifications.

Parameter	Specification
Physical Dimensions (W x H x D)	160mm x 125mm x 50mm
Total Weight	0.58 kg (580 grams)
Communication Ports	2 configurable serial interfaces
Supported Protocols	RS232, RS422, RS485 (selectable)
Baud Rate Range	300 to 9600 baud
Buffer Memory	8 KB transmit/receive
Operating Voltage	5V DC (from backplane)

Functional Architecture and Port Configuration

This communication processor connects to printers, host computers, or terminals. It uses two independently configurable serial ports for flexible wiring. You can set each port for different baud rates and data formats. Moreover, the processor includes a dedicated Z80 communication controller. This component handles all protocol overhead without CPU intervention. Consequently, the main processor focuses on control tasks rather than serial data handling.

Installation and Operational Guidelines

The Siemens 6ES5521-8MA21 buffers up to 8 KB of transmit data. It provides 500V isolation between backplane and field ports. You must set the DIP switches for the correct protocol. Always use terminated cables for RS485 networks longer than 100 meters. This practice prevents signal reflections and data corruption. Furthermore, the processor supports ASCII, 3964R, and RK512 protocols. This feature matches various third-party device requirements.

Physical Characteristics and Environmental Limits

This communication processor has a rugged, industrial-grade plastic housing. Its substantial 0.58 kg weight reflects the dual-port design quality. The layout follows Siemens standard S5 module specifications. Therefore, it fits securely into any SIMATIC S5 rack. The module requires one slot width for installation. In addition, it maintains stable operation between 0°C and 60°C ambient temperature. You can store this unit safely between -40°C and 85°C.
