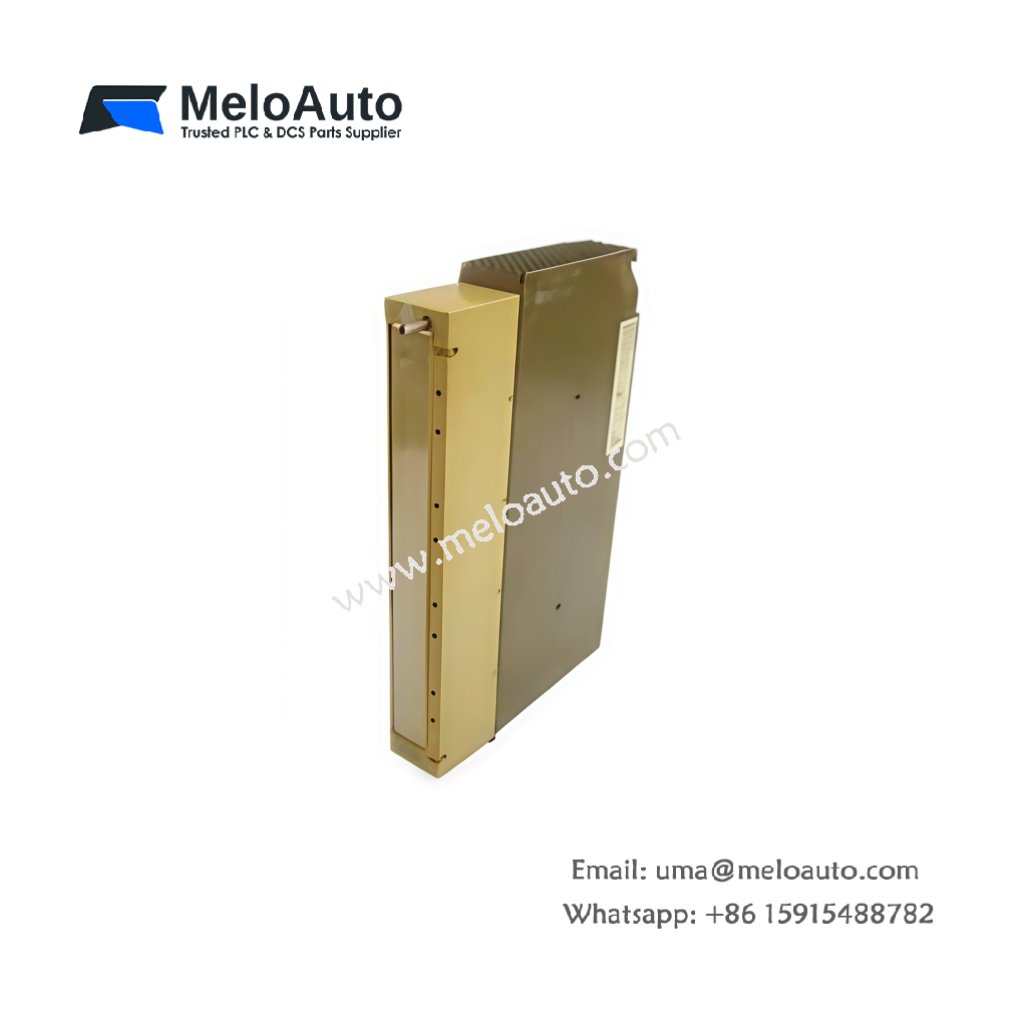

Siemens 6ES5436-7LC11 Digital Input Module SIMATIC S5

Technical Overview

The 6ES5436-7LC11 digital input module provides reliable signal acquisition for SIMATIC S5 automation systems. This compact module processes 16 independent input channels simultaneously. Engineers can integrate it seamlessly into existing S5-115U and S5-135U controller configurations. The module supports a standard DC 24V nominal voltage for broad compatibility with field devices. Furthermore, its floating signal type ensures effective electrical isolation between the input circuits and the system backplane .

Key Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5436-7LC11 (6ES5 436-7LC11)
Product Series	SIMATIC S5
Module Type	Digital Input Module
Number of Inputs	16 channels
Nominal Voltage	DC 24V
Signal Type	Floating (isolated)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Protection Class	IP20
Approx. Dimensions (W x H x D)	100mm x 100mm x 40mm
Approx. Weight	0.2 – 0.3 kg
Communication Protocol	PROFINET, MPI, MODBUS TCP/IP
Certifications	CE, UL

Robust Environmental Performance

The 6ES5436-7LC11 operates reliably across a wide temperature range from -25°C to +60°C . It also withstands storage temperatures from -40°C to +85°C, making it suitable for diverse industrial climates . The IP20 enclosure protects the internal circuitry from dust and solid objects larger than 12mm.

Advanced Connectivity and Communication

This module integrates seamlessly with modern control networks through multiple communication interfaces. It supports PROFINET for real-time industrial Ethernet communication and MPI for legacy system connectivity . The module also offers MODBUS TCP/IP compatibility, facilitating integration with a wide range of third-party devices . Spring-loaded terminals or quick-connect connectors simplify the wiring process and reduce installation time .

Application Versatility

Industrial automation engineers can deploy the 6ES5436-7LC11 across diverse sectors, including manufacturing, energy, and transportation . It excels in applications requiring reliable signal processing from sensors, limit switches, and other digital field devices. The module’s high-speed signal processing ensures real-time response for critical control tasks .
