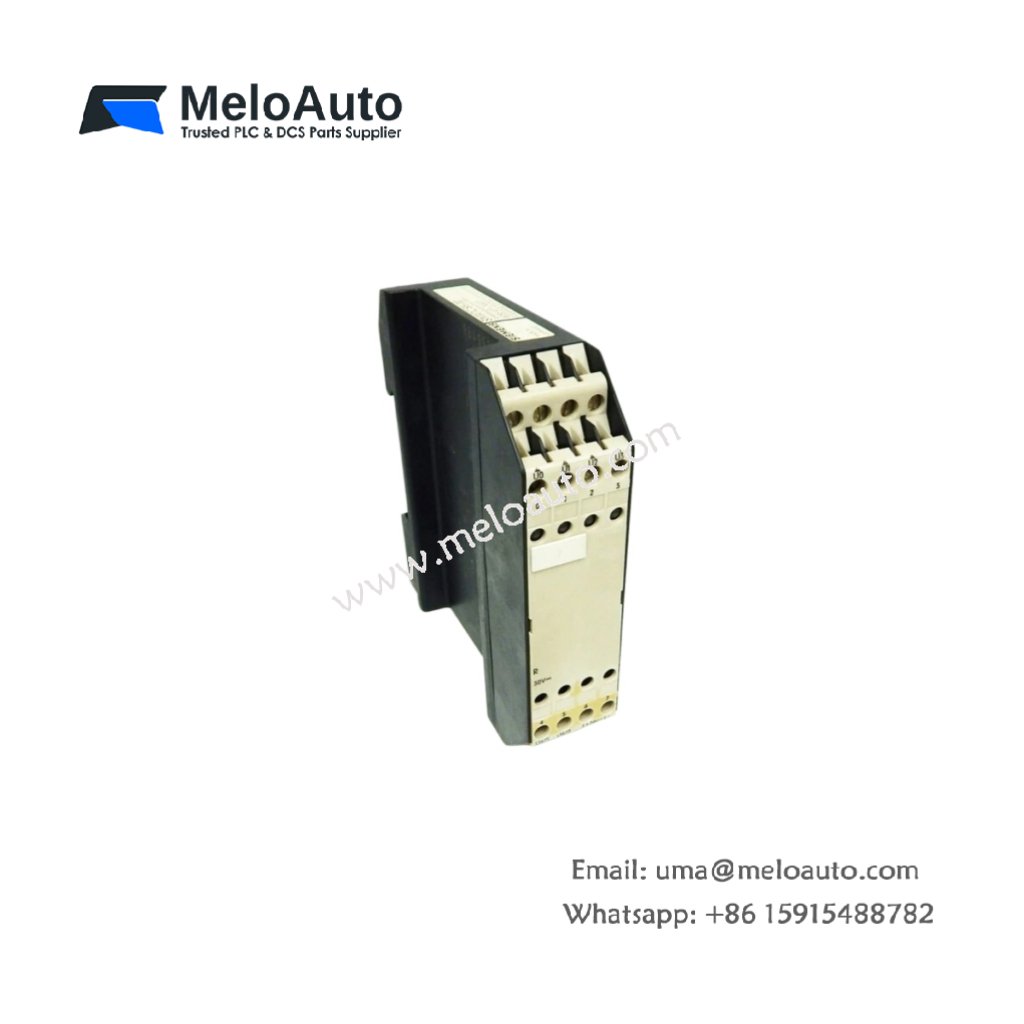

Siemens 6ES5417-7AA11 Digital Output Module

Technical Overview

The 6ES5417-7AA11 digital output module delivers reliable control signals from SIMATIC S5 controllers to field actuators. This module features 16 floating output channels for driving solenoids, contactors, and indicator lamps. Each channel provides a nominal voltage of DC 24V with a load current capacity of 0.5A . The floating output design ensures effective galvanic isolation between the control system and the load circuits. Furthermore, this module integrates seamlessly into S5-115U and S5-135U central controller racks .

Key Technical Specifications

Output Circuit Architecture

Each output channel includes a free-wheeling diode to protect against inductive voltage spikes . This built-in protection ensures reliable operation when the module drives inductive loads such as relays and solenoid valves. Additionally, the output circuits feature short-circuit and overload protection for enhanced system safety . Users can combine channels in parallel configurations of 2:1 or 3:1 to achieve higher current outputs. However, such parallel operation requires appropriate derating to maintain thermal stability .

Integration and System Compatibility

The module occupies one slot in the SIMATIC S5 central controller rack. It connects directly to the backplane bus for power and signal transmission. The front panel features clearly labeled terminal connections for straightforward wiring. Engineers can quickly install or replace this module without complex reconfiguration .

Application Versatility

Industrial applications benefit from this module’s ability to control various actuator types reliably. For instance, it handles pneumatic valves, motor starters, and visual signaling devices with equal efficiency. The module’s wide operating temperature range from 0°C to 60°C suits most factory floor environments. System integrators across manufacturing, packaging, and material handling sectors consistently choose this output module .
