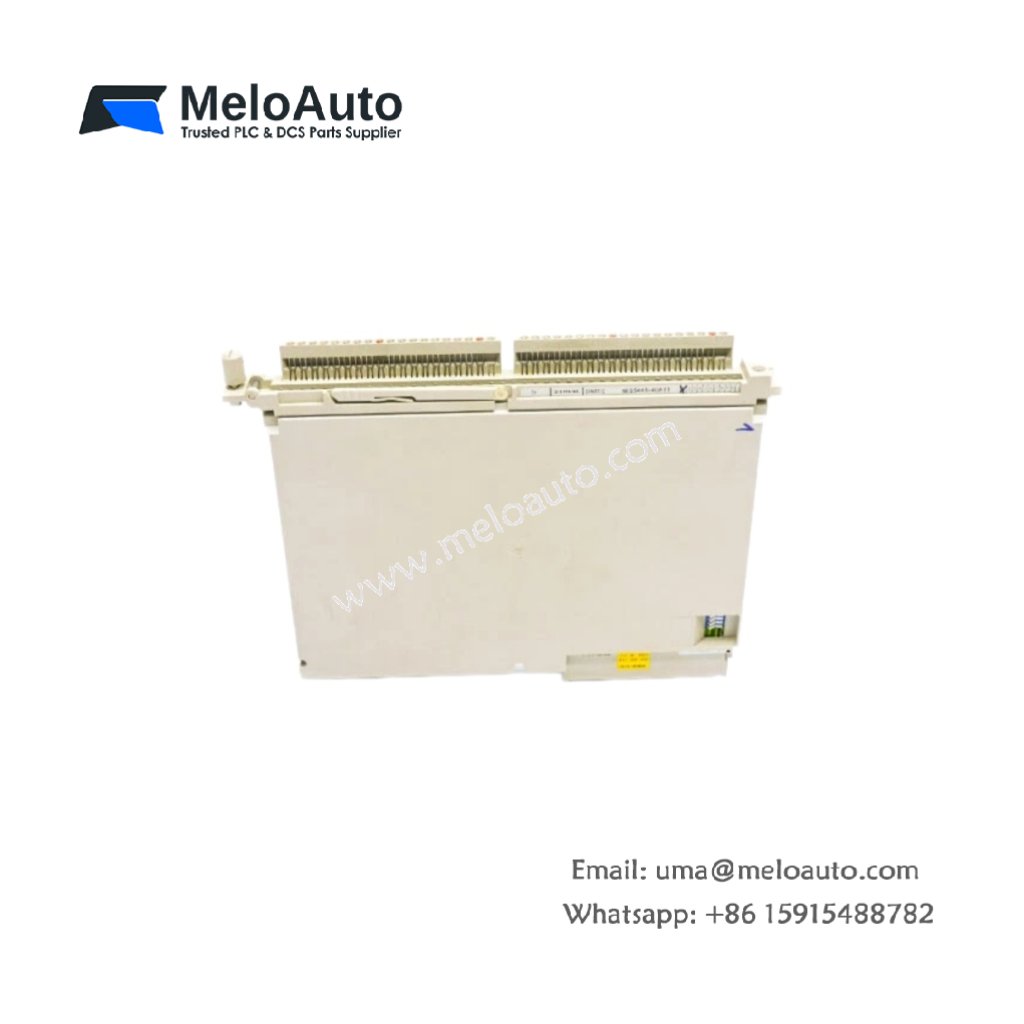

Siemens 6ES5455-4UA11 Digital Output Module

Technical Overview

The 6ES5455-4UA11 digital output module provides robust actuator control for SIMATIC S5 automation systems. This module features 16 floating outputs with a nominal voltage of DC 24V. Each output channel supplies a continuous current of 1.5A for driving various field devices. The module handles resistive, inductive, and lamp loads with equal reliability. Furthermore, it includes integrated short-circuit protection to safeguard both the module and connected equipment.

Key Technical Specifications

Output Protection and Diagnostics

Each output channel features individual short-circuit protection for enhanced system safety. This built-in protection prevents damage from wiring faults or overload conditions. Additionally, the module provides visual status indication through front-panel LEDs for each channel. These LEDs allow operators to quickly identify faulty outputs without external diagnostic tools.

Load Compatibility and Flexibility

The 6ES5455-4UA11 handles multiple load types effectively across diverse applications. It drives resistive loads such as heating elements and incandescent lamps with stable performance. Moreover, the module manages inductive loads like relays, contactors, and solenoid valves without requiring external suppression components. However, users should ensure total module current does not exceed 8A per common line.

Integration and System Connectivity

This output module plugs directly into the SIMATIC S5 central rack or expansion units. The backplane bus provides both power and signal connectivity to the module. Engineers can connect field wiring via the front-facing terminal block, which supports conductors from 0.5mm² to 2.5mm². Consequently, installation remains straightforward and time-efficient for maintenance personnel.
