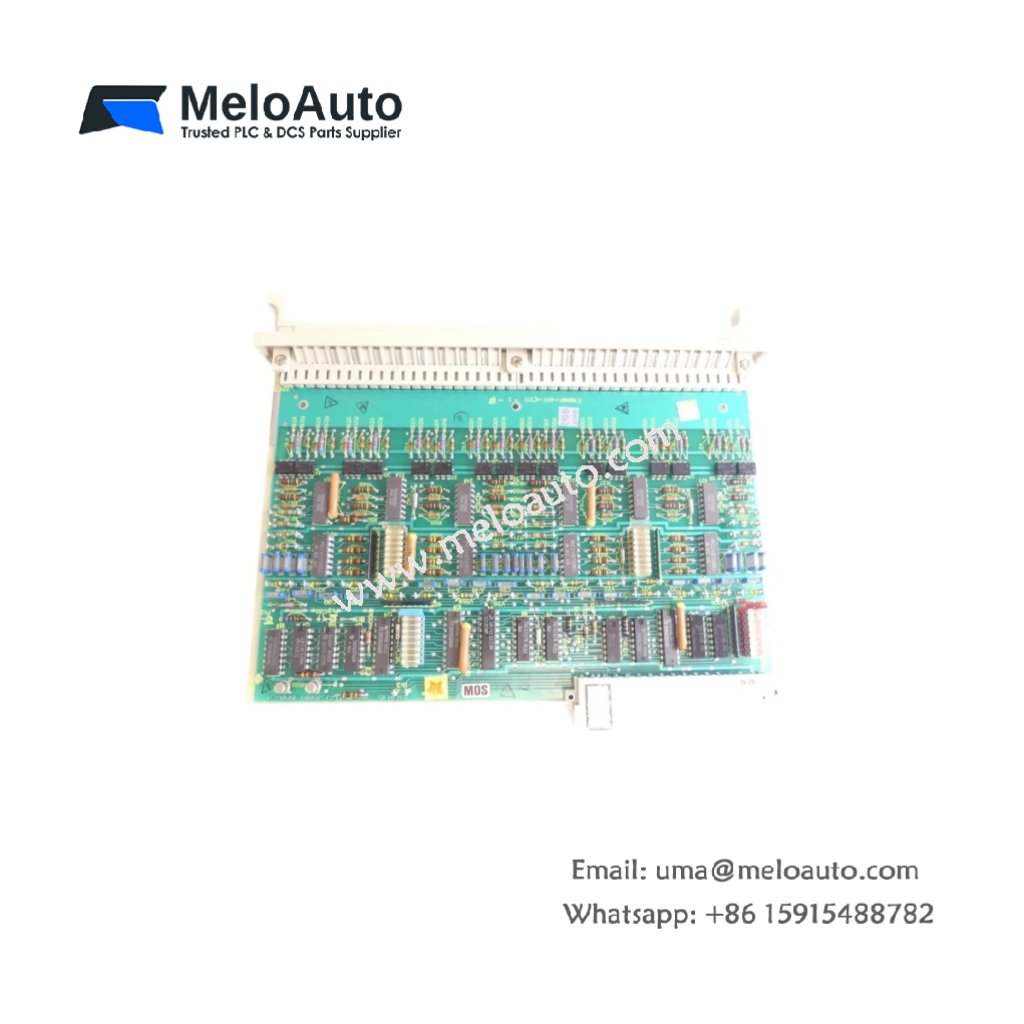

Siemens 6ES5432-3BA11 – Digital Input Module for SIMATIC S5 Systems

The Siemens 6ES5432-3BA11 acquires binary signals from field devices like switches and sensors. This module measures 250 mm in depth and 25 mm in width. It fits standard SIMATIC S5 rack slots without any modifications. The unit weighs 0.42 kg, making installation straightforward.

Channel Configuration and Input Specifications

This digital input module provides 32 independent input channels on its front panel. The Siemens 6ES5432-3BA11 accepts 24V DC signals from industrial field devices. Each channel includes optocoupler isolation between field and logic circuits. The input current per channel measures 7 mA at nominal voltage. Voltage thresholds define logical 0 below 5V and logical 1 above 15V.

Internal Architecture and Component Layout

The module contains two separate circuit boards inside its plastic housing. One board handles input filtering, while the other manages backplane communication. The Siemens 6ES5432-3BA11 includes 32 LED indicators for individual channel status. A 48-pin edge connector interfaces with the S5 backplane for power and data. The module stores 47 µF of capacitance for power supply filtering only.

Response Time and Input Delay

You can configure input delay times from 0.5 ms up to 15 ms per channel. The Siemens 6ES5432-3BA11 filters input noise using a programmable digital filter. Shorter delay settings provide faster response for high-speed applications. Longer delay settings reject contact bounce and electrical noise effectively. The module updates all 32 channels every scan cycle without additional delay.

Environmental Tolerance and Power Requirements

The Siemens 6ES5432-3BA11 draws 60 mA at 5V DC from the backplane supply. It also requires 120 mA at 24V DC for input power from external source. The module operates reliably from 0°C to 60°C ambient temperature. It tolerates humidity levels up to 95 percent without any condensation issues. The unit withstands vibration up to 2g from 10 to 500 Hz.

Below is a complete summary of its technical specifications.

The Siemens 6ES5432-3BA11 replaces older input modules in SIMATIC S5 systems directly. You do not need any rewiring or configuration changes during replacement. This module also supports hot-swapping in compatible S5 rack configurations. Consequently, it restores input monitoring without lengthy production downtime.
