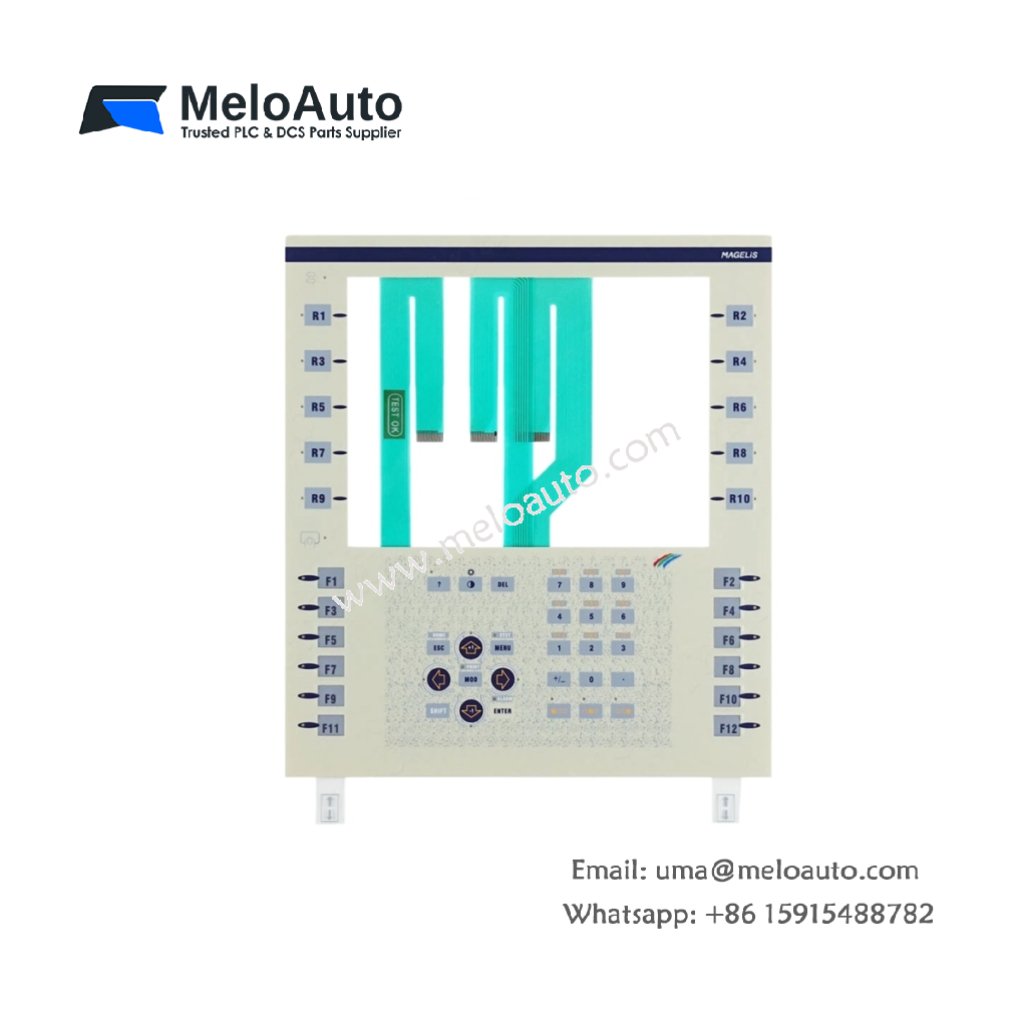

Schneider XBTF024510 | Human-Machine Interface

The Schneider XBTF024510 provides an intuitive operator interface for industrial machinery. This human-machine interface displays process data and accepts user commands. You can mount it directly on a control panel door. The unit replaces physical push buttons with a touch-sensitive display screen.

Display and Touch Specifications

Parameter	Specification
Brand	Schneider Electric
Model	XBTF024510
Product Type	Human-Machine Interface (HMI)
Display Type	STN LCD (color)
Screen Size	5.7 inches diagonal
Resolution	320 x 240 pixels (QVGA)
Colors	256 colors
Backlight	CCFL (replaceable)
Touch Technology	Resistive analog (4-wire)
Touch Points	Single touch

The Schneider XBTF024510 shows 256 colors on a 5.7-inch STN LCD screen. This human-machine interface uses CCFL backlighting for uniform display brightness. You can operate the touch screen in temperatures from 0°C to 50°C. The resistive touch layer responds to finger, glove, or stylus input.

Physical Dimensions and Weight

Parameter	Specification
Weight	0.85 kg (1.87 lbs)
Height	162 mm
Width	220 mm
Depth	46 mm
Cutout Size	170 mm x 130 mm
Panel Thickness	1.5 to 8 mm
Housing Material	Polycarbonate + ABS
Protection Rating	IP65 (front panel)

This human-machine interface weighs 0.85 kg for stable panel mounting. The unit measures 162 mm tall by 220 mm wide. Its depth reaches 46 mm behind the mounting surface. You can install the Schneider XBTF024510 with the included mounting clips and sealing gasket.

Communication Interfaces

A RS-232 serial port handles primary communication with PLCs. A second RS-485 port supports multi-drop networks for multiple HMIs. The Schneider XBTF024510 includes a USB Type-B port for programming. You will also find an Ethernet port for Modbus TCP/IP connectivity. Each interface operates independently with configurable baud rates up to 115,200 bps.

Energy Storage and Memory

The Schneider XBTF024510 uses flash memory for application and font storage. This memory holds up to 8 MB of user-defined screens and recipes. A lithium coin cell battery maintains the real-time clock. This battery provides 5 years of backup during power loss. The terminal draws only 12 W from a 24 VDC power supply.

Internal Components and Construction

A 32-bit RISC processor runs at 200 MHz for smooth screen updates. The front panel includes 8 tactile function buttons along the bottom edge. You will find 2 LED indicators for power and communication status. The Schneider XBTF024510 contains approximately 210 surface-mount components. A replaceable CCFL backlight tube sits behind the LCD panel.

Configuration Software and Use

You can program this terminal using Vijeo Designer software. The software creates screens with graphics, trends, alarms, and data logging. Transitioning to this HMI eliminates hard-wired indicator lights and selector switches. Use the Schneider XBTF024510 for packaging lines, conveyors, batch processes, or machine tools. For best results, mount the terminal at eye level for easy reading and touch interaction.
