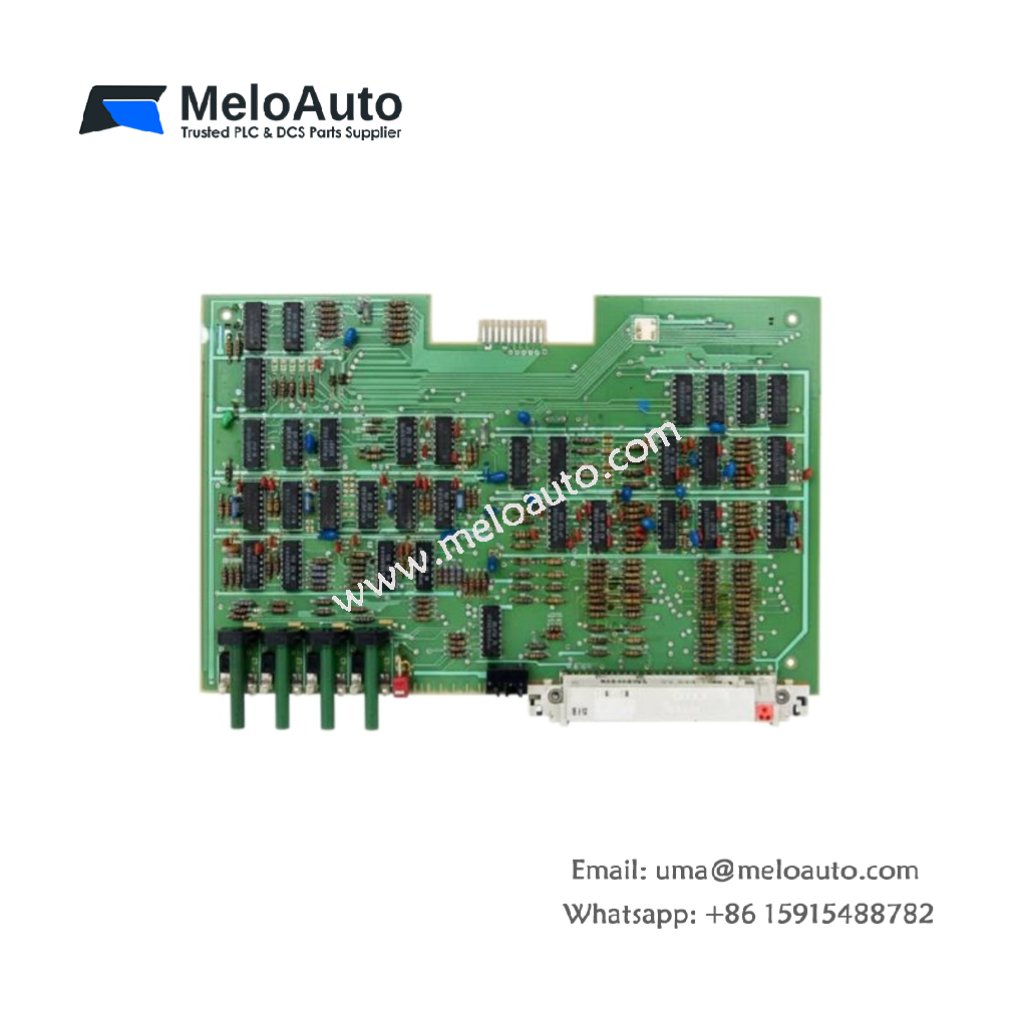

Siemens 6ES5400-0AB11 Digital Input/Timer Module

Precision Timing and Input Management

The Siemens 6ES5400-0AB11 digital input/timer module combines eight discrete input channels with four independent timing functions. This hybrid design eliminates the need for separate timer relays, thereby saving valuable rack space. Industrial control systems benefit from this integration, as it simplifies both wiring and programming efforts significantly.

Electrical Specifications and Input Characteristics

This module operates on a nominal 24 V DC supply voltage with a permissible tolerance of -15% to +20%. Each input channel draws a typical current of 7 mA at 24 V, which keeps total power consumption low. The module’s total power dissipation measures approximately 3.2 watts under full load conditions. Furthermore, the timing section stores up to 16 preset time values in non-volatile memory for instant recall.

Input Circuit Design and Signal Processing

Each input channel incorporates a built-in debounce filter that suppresses transient noise pulses. This filter ensures reliable signal detection even in electrically noisy environments. The module accepts both PNP and NPN sensor outputs, offering flexible connectivity options. Moreover, the input impedance measures approximately 3.3 kΩ, which matches standard proximity switches and limit switches. An optical isolator separates each channel from the internal logic for enhanced safety.

Timer Functions and Configuration Options

The four timers operate independently with individual start, stop, and reset controls. Each timer covers a range from 10 milliseconds to 9,990 seconds, accommodating diverse timing applications. You can select between on-delay, off-delay, and pulse output modes via software parameters. Additionally, the module stores the current timer values during power loss, allowing seamless restarts after interruptions. The timing accuracy maintains ±0.1% of the set value over the full temperature range.

Mechanical Construction and Installation Details

This digital input/timer module features a compact housing of 50 mm width, fitting neatly into standard 200 mm deep enclosures. The unit weighs only 0.38 kilograms, which simplifies mechanical support requirements. A 20‑pin front connector provides all signal terminations, and a screw‑type clamp secures each wire firmly. The front panel includes individual LED indicators for each input and timer status, enabling quick diagnostics.

System Integration and Compatibility

The Siemens 6ES5400-0AB11 integrates seamlessly with Siemens S5‑series PLC backplanes and expansion racks. You can place this module in any slot of the central controller or distributed I/O station. The module communicates with the CPU through the standard backplane bus at 187.5 kbps. For extended applications, you may cascade multiple timer modules within the same system. Always verify the total backplane current draw does not exceed the power supply rating.
