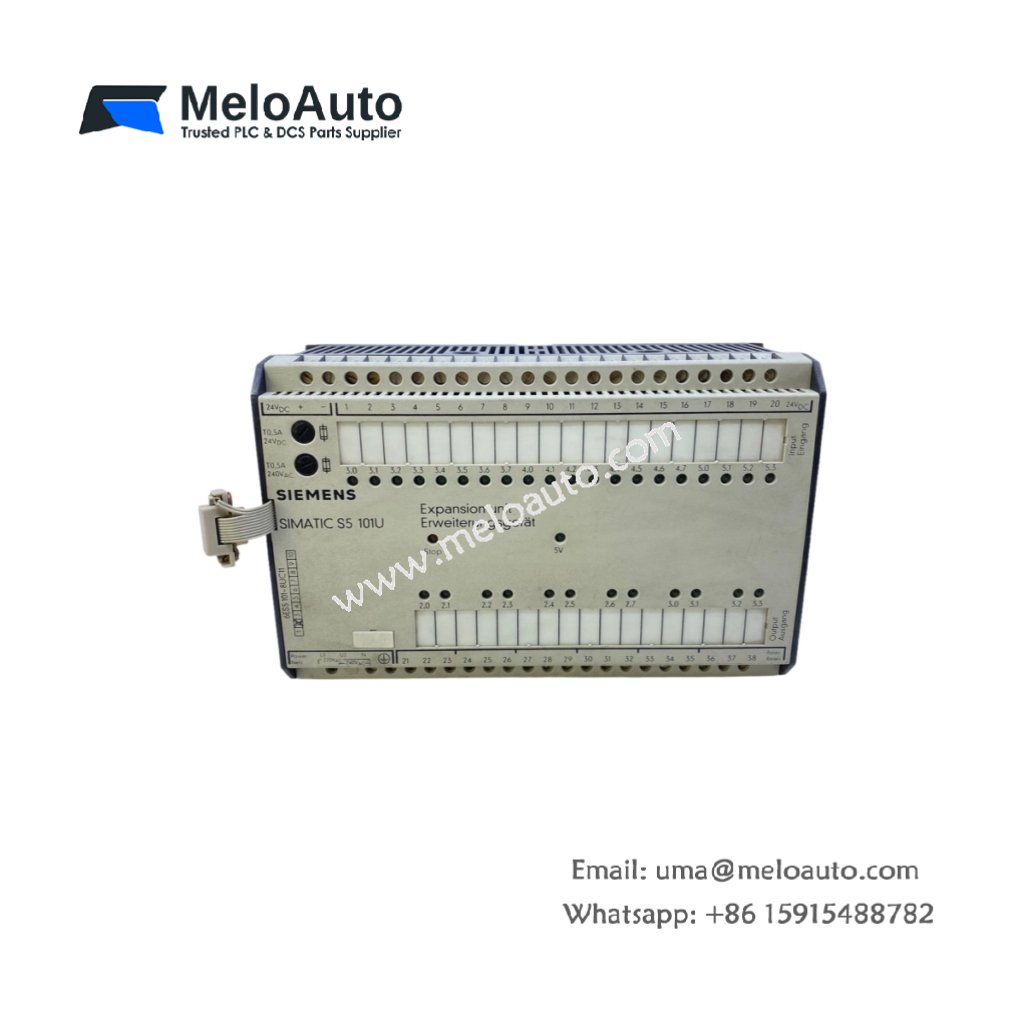

Siemens 6ES5101-8UC11 Expansion Unit

Scalable System Expansion for S5 PLCs

The Siemens 6ES5101-8UC11 expansion unit increases the I/O capacity of existing S5-series control systems. This unit connects directly to the central controller through a dedicated interface cable. Manufacturing facilities often require additional I/O points, and this solution delivers that scalability without replacing the main CPU.

Power Supply and Electrical Ratings

This expansion unit operates from a 120/230 V AC mains supply with automatic voltage selection. The internal power supply provides 5 V DC at 3 A and 24 V DC at 0.5 A for backplane modules. Total power output reaches 15 watts, supporting up to eight additional I/O modules. Furthermore, the unit incorporates a primary switched-mode power supply for high efficiency.

Mechanical Construction and Physical Layout

The expansion unit enclosure measures 250 millimeters in width, which provides ample space for eight I/O modules. This sturdy metal housing protects internal components from dust and mechanical impact. The unit weighs approximately 2.8 kilograms, requiring secure mounting on a DIN rail or panel. A front-accessible terminal strip simplifies mains wiring and grounding connections.

Interface and Communication

A 1-meter shielded ribbon cable connects this unit to the host PLC or previous expansion stage. The backplane bus operates at 187.5 kbps, ensuring synchronized data exchange with the central processor. Each slot supports any S5-100 or S5-115 compatible module, including digital, analog, and communication types. Additionally, the unit provides a bus termination switch for proper signal reflection control.

Operational Features and Diagnostics

The Siemens 6ES5101-8UC11 includes a built-in status display with LEDs for power, bus activity, and fault conditions. An integrated fuse protects the mains input from overcurrent events. The unit also stores configuration data for the installed modules, enabling quick replacement without reconfiguration. Moreover, the power supply maintains hold-up time of 20 milliseconds during brief voltage dips, which prevents unintended system resets.

Installation Guidelines and Environmental Limits

This expansion unit operates reliably in ambient temperatures from 0°C to 60°C. The enclosure carries an IP20 protection rating, suitable for clean, dry control rooms. You should mount the unit vertically with adequate clearance for heat dissipation. Always connect the protective earth terminal before applying power. For multi-unit configurations, daisy-chain the bus cables while setting termination on the last unit only.
