Central Processing for S5 Automation Systems

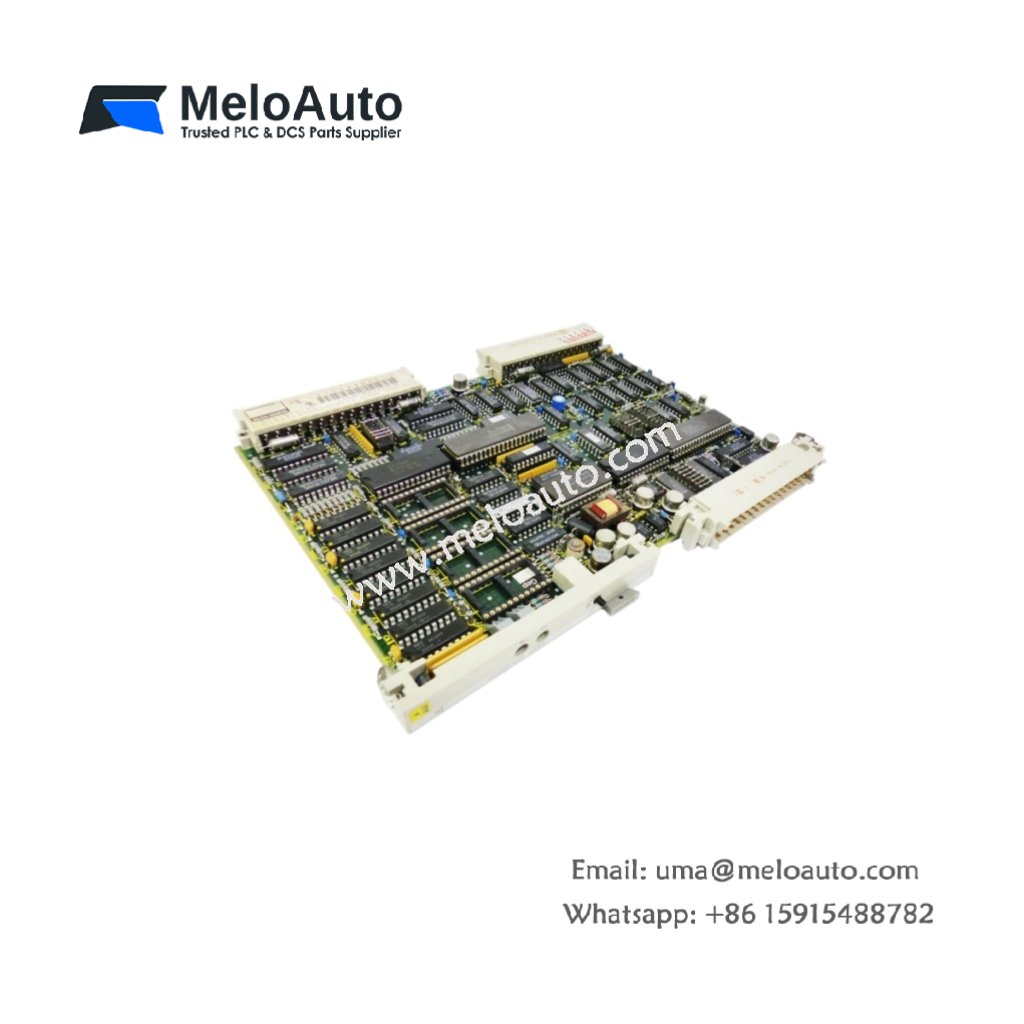

The Siemens 6AA5103-0AC70 processor module serves as the core computing unit for S5-115U series programmable controllers. This module executes user logic, processes I/O signals, and manages communication tasks simultaneously. Modern production lines depend on this processing power for consistent and repeatable machine operations.
Processing Performance and Memory Architecture
This processor module features a 16-bit microcontroller operating at a clock frequency of 48 MHz. The unit integrates 128 kilobytes of RAM for program execution and data handling. Additionally, the module includes 64 kilobytes of EPROM for firmware storage and boot routines. The processor handles binary operations at speeds under 0.3 microseconds per instruction.
| Parameter | Specification |
|---|---|
| Model | Siemens 6AA5103-0AC70 |
| Processor Type | 16-bit microcontroller |
| Clock Frequency | 48 MHz |
| Program RAM | 128 KB |
| Firmware EPROM | 64 KB |
| Processing Speed | 0.3 µs per binary operation |
| I/O Address Space | 1024 digital / 128 analog |
| Dimensions (W x H x D) | 50 mm x 125 mm x 118 mm |
| Weight | 0.45 kg |
| Power Consumption | 5 W (typical) |
I/O Addressing and Peripheral Support
This processor module addresses up to 1,024 digital inputs and outputs directly without additional expansion. The unit also supports 128 analog channels for process variable monitoring and control. A built-in peripheral bus handles data exchange with connected I/O modules at 187.5 kbps. Furthermore, the processor integrates a real-time clock for time-stamped event logging.
Communication Interfaces and Protocols
The Siemens 6AA5103-0AC70 includes one RS-232 serial port for programming terminal connections. A second RS-485 port supports peer-to-peer communication with other PLCs or operator panels. The module also features a 20 mA current loop interface for legacy printer or data logger devices. These interfaces allow flexible integration into both new and existing automation networks.
Diagnostic Capabilities and Status Indication
An array of seven front-panel LEDs provides immediate visual feedback on processor status. These indicators display power, run, stop, memory fault, battery, bus error, and system fault conditions. The module stores the last 100 fault events in a non-volatile buffer for later analysis. Moreover, the processor performs automatic self-tests during each startup sequence, verifying memory integrity and hardware functionality.
Installation and Environmental Requirements
This processor module requires a standard S5-115U backplane slot and a 5 V DC supply from the rack. The unit operates reliably between 0°C and 60°C with a relative humidity range of 5% to 95% (non-condensing). You must install the module in a vertical orientation for adequate convective cooling. Always connect the programmer cable before applying power to avoid communication errors.
