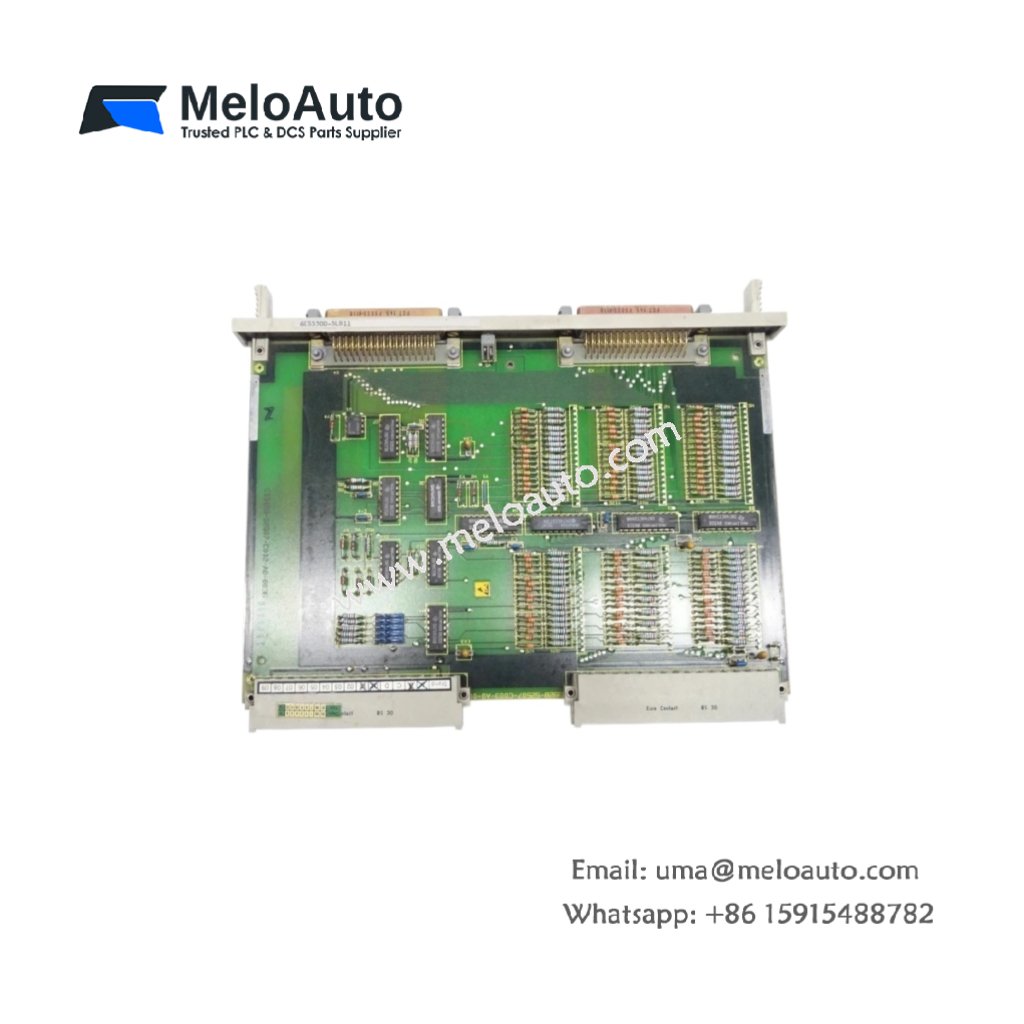

Siemens 6ES5300-5LB11 Interface Module

Core Functionality and System Integration

The Siemens 6ES5300-5LB11 interface module establishes a direct communication pathway between the central controller and distributed I/O stations. This module handles data exchange with exceptional speed, thereby reducing overall scan cycle times. Industrial networks require robust interfaces, and this unit delivers consistent performance under demanding conditions.

Technical Specifications and Electrical Characteristics

This interface module operates on a 24 V DC nominal supply voltage with a permissible range of 20.4 V to 28.8 V. The module draws a maximum input current of 200 mA from the backplane bus. Its power dissipation typically measures 4.5 watts, which ensures efficient thermal management. Furthermore, the unit stores up to 8 KB of configuration data locally for quick system recovery.

Parameter	Specification
Model	Siemens 6ES5300-5LB11
Supply Voltage	24 V DC (20.4–28.8 V)
Input Current	200 mA (max)
Power Dissipation	4.5 W (typical)
Local Data Storage	8 KB
Transmission Rate	187.5 kbps (default)
Dimensions (W x H x D)	40 mm x 125 mm x 118 mm
Weight	0.42 kg
Number of Channels	1 (RS‑485 interface)
Isolation Voltage	1500 V AC (test)

Mechanical Design and Physical Attributes

The housing measures 40 millimeters in width, 125 millimeters in height, and 118 millimeters in depth. This compact footprint allows installation in standard 200 mm deep control cabinets. The unit weighs approximately 0.42 kilograms, which simplifies mounting on DIN rails. A front‑facing LED array provides real‑time status indications for power, data exchange, and error conditions.

Connectivity and Signal Transmission

This interface module features a single RS‑485 port with a 9‑pin D‑sub connector for fieldbus connectivity. The transmission rate defaults to 187.5 kbps, but you can configure higher speeds up to 1.5 Mbps via software settings. The module supports up to 32 connected devices per segment, expanding system capacity significantly. Moreover, the integrated termination resistor simplifies network setup in long cable runs.

Operational Reliability and Protection Features

The Siemens 6ES5300-5LB11 provides electrical isolation of 1500 V AC between the bus and internal logic. This isolation protects sensitive control circuits from voltage spikes and ground loops. The module also includes reverse polarity protection on the power input terminals. Consequently, this design minimizes installation errors and enhances overall system uptime. Additionally, the firmware supports autobaud detection for seamless integration with older peripherals.

Application and System Compatibility

This interface module works primarily with Siemens S5‑series PLCs and their associated remote racks. You can combine it with analog or digital I/O modules through the same backplane bus. The module also supports redundant configurations for critical process control applications. For best results, we recommend using shielded twisted‑pair cables for all field connections.
