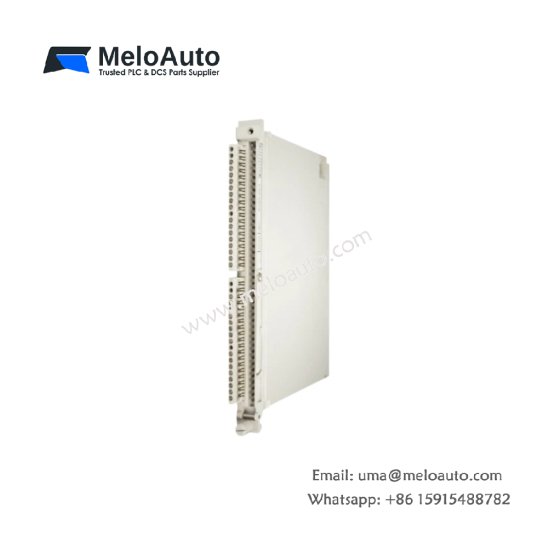

Siemens 6FM1706-3AB00 Positioning Module

This Siemens positioning module delivers precise single-axis motion control for automation systems. The Siemens 6FM1706-3AB00 handles complex positioning tasks with high accuracy and repeatability. Its dedicated design offloads motion control from the main CPU. This module suits packaging, handling, and assembly applications. The Siemens 6FM1706-3AB00 supports various encoder types for flexible integration.

Physical Dimensions and Mounting Details

The module measures 232 mm in height and 25 mm in width. Its overall depth reaches 160 mm including the front connector. This unit weighs approximately 0.5 kilograms for stable rack installation. The housing supports standard 35 mm DIN rail mounting in S5 racks. The Siemens 6FM1706-3AB00 features a 20-pin front connector for all signal wiring. This connector accepts conductor cross-sections from 0.5 mm² to 2.5 mm².

Positioning and Encoder Specifications

This module provides positioning resolution down to 0.001 mm for precision tasks. The maximum traversing range reaches 10,000 mm for flexible applications. Positioning speed ranges from 0.1 to 200 mm/s for various motion profiles. Acceleration rates adjust from 1 to 200 mm/s² for smooth operation. The Siemens 6FM1706-3AB00 accepts incremental encoders with 5 V differential signals. It also supports absolute encoders via SSI interface with 12-bit resolution. A home input provides reference point detection for accurate homing.

Control Interfaces and Electrical Data

This module draws a typical current of 180 mA from the 24 V DC supply. It includes one analog output from 0 to 10 V for drive speed control. Three digital inputs handle limit switches and emergency stop signals. Two digital outputs signal positioning complete and fault conditions. The Siemens 6FM1706-3AB00 incorporates a 100 µF capacitor for noise suppression. LED indicators display the current operating status and errors.

Detailed Specification Table

Parameter	Specification
Dimensions (H x W x D)	232 mm x 25 mm x 160 mm
Weight	Approx. 0.5 kg
Controlled Axes	1
Positioning Resolution	0.001 mm
Traverse Range	Up to 10,000 mm
Speed Range	0.1 to 200 mm/s
Acceleration Range	1 to 200 mm/s²
Encoder Support	Incremental (5 V), SSI absolute (12-bit)
Supply Voltage	24 V DC
Current Consumption	180 mA (typical)
Analog Output	0 to 10 V
Digital Inputs	3 (limits, emergency)
Digital Outputs	2 (status)
Filter Capacitance	100 µF
Operating Temperature	0°C to 55°C

Application and Commissioning Guidelines

Mount this module in any available S5 rack slot with adequate clearance. Connect the encoder to the designated terminals using shielded twisted-pair cables. Wire the drive analog input to the module’s control output carefully. The Siemens 6FM1706-3AB00 operates effectively between 0°C and 55°C. Perform a reference run after installation for accurate positioning. Program the target positions using the STEP 5 software interface. Test the limit switches to confirm proper stop functionality. Verify the output voltage range matches the drive input requirements.
